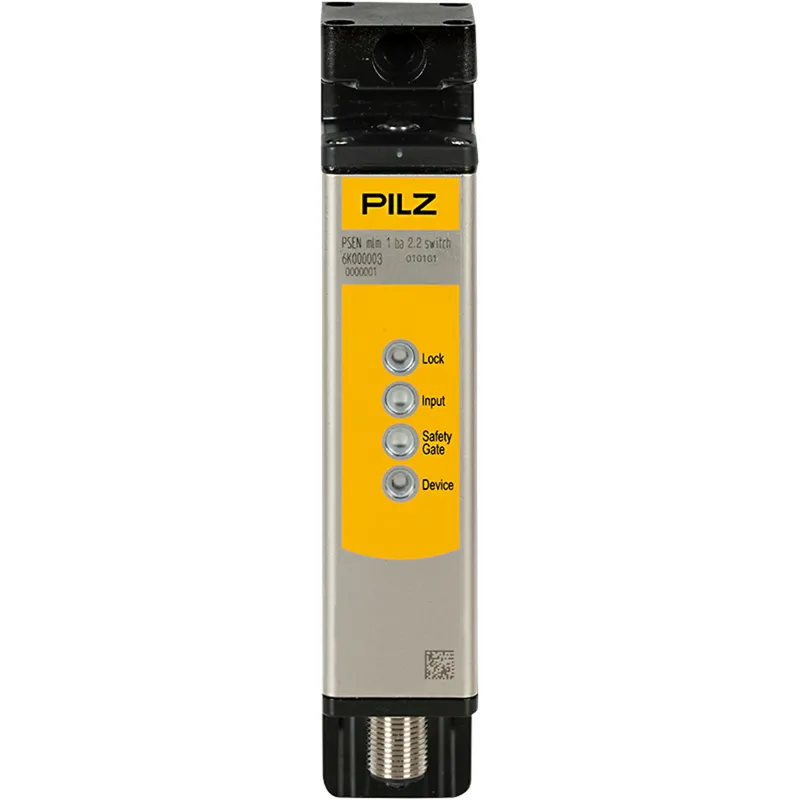

Pilz 6K000003
PSEN mlm 1 ba 2.2 switch
- MPN
- 6K000003
- EAN
- 4046548105797
- Category
- PSENmlock mini
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 6K000003?
Safety switch, uniquely coded, for safety guard locking device PSENmlock mini, application: small swing gates and sliding gates, as well as flapsand covers, safe guard locking for personal protection, bistable guard locking principle, 8-pin M12 male connector, single connection, automatic reset
Specifications
General data
| Product ID (Pilz order number) | 6K000003 |
| Approval | UL Listed, CE, UKCA, FCC, IC, TÜV |
| Sensor principle | Transponder |
| Coding level to ISO 14119 | High |
| Classification to EN 60947-5-3 | PDDB |
| Transponder coding | unique coding |
| Reset type | Automatic reset |
| Suitable for series connection | no |
| unit type | Sensor |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Type of power supply for U1 | SELV/PELV |
| Power consumption DC | 0.5 |
Inputs
| Number of inputs | 2 |
| DC voltage at input | 24 V DC |
| Potential isolation inputs | No |
Semiconductor outputs
| Number of OSSD outputs | 2 |
| Number of sig. outputs | 1 |
| Potential isolation S/C O | No |
| S/C output short circuit proof | Yes |
| Utilisation cat. to EN 60947-1 | DC-12 |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -10 … 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 301489-1 V2.1.1, EN 55011: Class A, EN 60947-5-3, EN 60947-5-2 |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type, housing | IP65, IP67 |
Mechanical data
| Escape release available | No |
| Connection type | M12, 8-pin male |
| Max. cable length | 45 |
| Product material | Galvanised steel, Plastic, Stainless steel |
| Height dimension | 157.5 mm |
| Width dimension | 30.4 mm |
| Depth dimension | 30.4 mm |
| Net weight | 425 g |
| Gross weight | 435 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272603 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002593 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548105797 |
| Volume | 0 dm3 |
| Harmonized System Code | 85365019 |
| Quantity per packaging unit | 1 |
