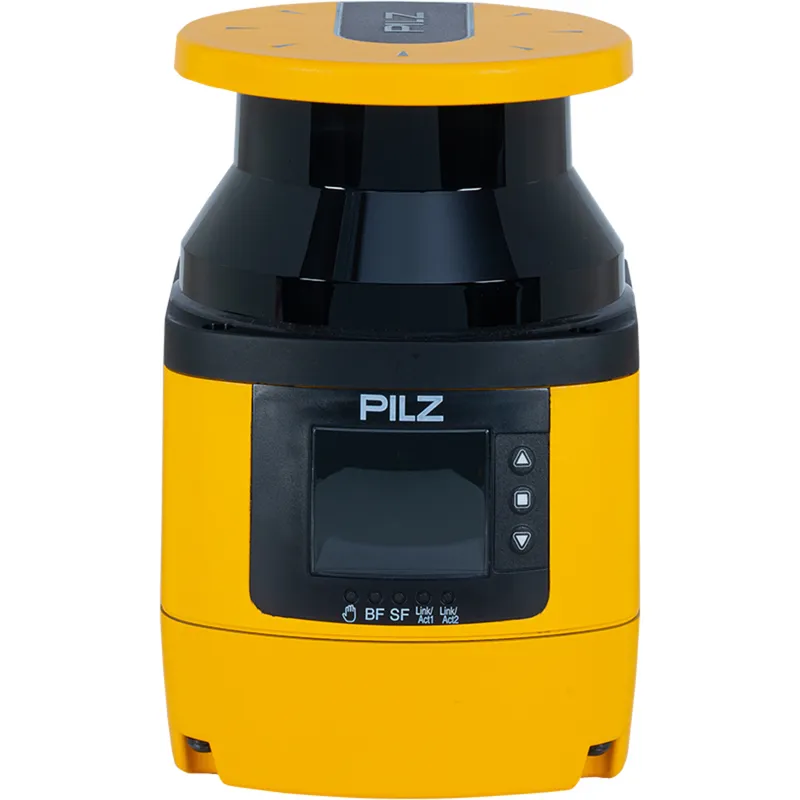

Pilz 6D000036
PSEN sc PN 5.5 08 back
- MPN
- 6D000036
- EAN
- 4046548110296
- Category
- PSENscan
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 6D000036?
PROFINET IO DEVICE with PROFIsafe, 30 mm, 40 mm, 50 mm, 70 mm, 150 mm Detection capability, muting, partial muting, override, EDM, restart Application in accordance with EN ISO 61496-3, vertical applications, max. 15 dynamic reference markers, measured data output (UDP), fast replacement due to exchangeable memory module on the rear, window exchangeable, ROS & C++ interface available, 5.5 m safety zone, max. 8 safety/warning zones in parallel, extended connection options (I/O), 70 configurable zone sets.
Specifications
General data
| Product ID (Pilz order number) | 6D000036 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| ESPE type | 3, 8 |
| Sensor principle | optical |
| Operating range (m) | 5.5 |
| Selectable resolutions | 50, 30, 40, 150, 70 |
| Range warning zone var. res. | 40 m/Resolution 150 mm, 22 m/Resolution 40 mm, 19 m/Resolution 30 mm, 23 m/Resolution 50 mm, 40 m/Resolution 70 mm |
| Range safety zone various res. | 3 m/Resolution 40 mm, 5.5 m/Resolution 150 mm, 2.50 m/Resolution 30 mm, 4 m/Resolution 50 mm, 5.5 m/Resolution 70 mm |
| Number of zone configurations | 70 |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 8.5 |
Optical data
| Used wavelength range | 905 nm |
| Scanning area | 275° |
| Max. opening angle vertical | 0.12° |
| Angular resolution | 0.1° |
Inputs
| Signal level at input at 0 | < 5 V |
| DC voltage at input | 24 V |
Semiconductor outputs
| Number of semicond. outputs | 8 |
| Current "0" S/C O PSENscan | < 700 µA |
Ethernet interface
| Connector type ETHERNET int. | M12x1, 4-pin, D-code |
| Ethernet transmission rate | 100 MBit/s |
Environmental data
| Ambient temperature | -10 … 50 °C |
| Humidity rating | Max. 95 % |
| Condensation permitted? | Not permitted |
| Perm. operating height ASL | 2000 m |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 10g |
| Protection type, housing | IP65 |
Times
| Reaction time | 94 |
| Rotation time | 42 |
Mechanical data
| Housing material | Aluminium |
| Housing material upper part | PC |
| Material front screen | PMMA |
| Height dimension | 152 mm |
| Width dimension | 102 mm |
| Depth dimension | 112.5 mm |
| Net weight | 1400 g |
| Gross weight | 2514 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272705 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002550 |
| GTIN | 4046548110296 |
| Volume | 0 dm3 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
6D000036: frequently asked questions
When can 6D000036 be shipped?
6D000036 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6D000036 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6D000036 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6D000036, subject to availability and destination.
