What is the Pilz 680083?

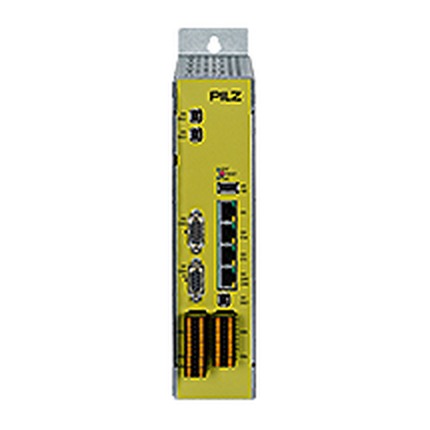

Motion control system in housing; Bus systeme standard: EtherCAT, CANopen, Profibus; Communication: EtherNet, USB; Hardware: CPU 1,3 GHz, 3 Encoder inputs, 16 digital inputs, 16 digital outputs; Software option: dynamic curve calculation, IEC 61131-3 programming.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)680083
ApprovalCE, UKCA, cULus Listed
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Purpose of U1supply
Supply voltage (V)24 V
Type of supply voltage U1DC

CPU

Memory for applications256 MB
Processor clock speed1.3 GHz
RAM512 MB

Absolute encoder input

No. of inputs absolute encoder3
Connection (absolute encoder)Mini-IO female connect., 8-pin
Supply voltage for ABS10 ... 30 VDC
Signal clock output ABSDifferential signal (RS 422)
Signal data input ABSDifferential signal (RS 422)
Pot. isolation absolute&systemYes

Input incremental encoder

Number of incremental encoder2 - 3
Connection (increment encoder)8-pin Mini-IO female connector
Supply voltage for incr.10 ... 30 VDC, 4.75 ... 5.25 VDC
Phase pos. diff.sign. inc.enc.90° ±30°

Encoder emulation

Max. jitter encoder emulation1000 incr./s

Inputs

Number of inputs16
Signal level at input at 0-3 - +5 VDC
U input to EN 61131-2 Type 124 V DC
Potential isolation inputYes

Semiconductor outputs

Tolerance ext. volt. DC S/C-15 %/+20 %
Pot. isol. S/C outputYes
S/C output short circuit proofYes
Perm. load 1pole OutputResistive, Inductive, Capacitive

PROFIBUS-DP interface

Profibus typeSlave
Perm. PROFIB. statn. addresses0 ... 126d
Setting PROFIBUS station addr.Software
Connector type Profibus inter.9-pin D-Sub female connector
Name PROFIBUS protocolDPV0
PROFIBUS operating modesAutoBaud
Name description file profibPilz0DCC.gsd
PROFIBUS manufacturer ID0DCCh

Ethernet interface

Ethernet IP addr. factory set192.168.0.11
Connector type ETHERNET int.RJ45
Ethernet transmission rate1 Gbit/s
Number of Ethernet interfaces1

CANopen interface

Number of CANopen interfaces3, 4
CANopen typeMaster, Slave
Canopen cycle time1 ms, 2 ms, 4 ms
Canopen transmission times500 kBit/s, 250 kBit/s, 1000 kBit/s
Pot. isolation CAN and systemyes

EtherNet/IP interface

Pot. isol. EtherNet & systemYes

Ethercat interface

Connector type Ethercat int.RJ45
Ethercat transmission rate100 MBit/s
Pot. isolation EtherCAT&systemYes

Environmental data

Climatic suitability to ...EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14
Ambient temperature standardEN 60068-2-14
Ambient temperature0 … 40 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standard ...EN 61131-2
Vibration to standard ...EN 60068-2-6
Acc. shock to standard1150 m/s²
Cooling typeBuilt-in fan
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear.&creep.2
Protection type standardEN 60529
Protection type, housingIP20

Potential separation

Potential isolation 1 betweenRotary encoder&system voltage
Type of potential isolation 1Basic insulation
Potential isolation 2 betweenEthernet and system voltage
Type of potential isolation 2Basic insulation
Potential isolation 3 betweenEtherCAT and system voltage
Type of potential isolation 3Basic insulation
Potential isolation 4 betweenSC output and system voltage
Type of potential isolation 4Basic insulation
Potential isolation 5 betweenInput and system voltage
Type of potential isolation 5Basic insulation
Potential isolation 6 betweenCANopen and system voltage
Type of potential isolation 6Basic insulation

Mechanical data

Mounting positionvertical
Housing materialHot dip galvanised metal
Housing material front plateHot dip galvanised metal
Housing material upper partPolyester film
Terminal styleplug-in
Height dimension270.6 mm
Width dimension60 mm
Depth dimension183 mm
Net weight1360 g
Gross weight2260 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.7a, 6a, 6c
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead
%-part of the pollutant> 0,1
CAS No.7439-92-1
SCIP entry availableyes
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27242090
ETIM VersionETIM-9.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC002584
UNSPSC 2539122331
GTIN4046548084849
Volume29.799 dm3
Harmonized System Code85371091
Quantity per packaging unit1
