Home / Pilz / PMCprotego S safety card / PMCprimo C.0/A/B/7
Available on request

Pilz 680065 – PMCprimo C.0/A/B/7

MPN: 680065 · Brand: Pilz
Price on request

Discontinued by Pilz — we can still source the original 680065 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryPMCprotego S safety card
LifecycleDiscontinued
Warranty12-month (new) · 3-month (used/refurbished)
Weight0.22 kg

Shipping & availability

Can I still buy the 680065 now that it is discontinued?

Yes. Pilz has discontinued the 680065, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 680065 be shipped?

680065 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 680065 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 680065 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 680065, subject to availability and destination.

PMCprimo-motion controller card for the servo amplifier series PMCprotego D 01-72 Hardware option: CPU 0.6 GHz, CANopen/PROFIBUS. Software option: Dynamic curve calculation, path interpolation, IEC 61131-3 programming.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)680065
ApprovalCE
Application rangeStandard
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Purpose of U1supply
Supply voltage (V)24 V
Type of supply voltage U1DC
Permitted loadsResistive, Inductive, Capacitive

CPU

Memory for applications256 MB
Processor clock speed600 MHz
RAM128 MB

Absolute encoder input

No. of inputs absolute encoder1
Connection (absolute encoder)9-pin D-Sub female connector
Supply voltage for ABS10 ... 30 VDC
Signal clock output ABSDifferential signal (RS 422)
Signal data input ABSDifferential signal (RS 422)
Pot. isolation absolute&systemYes

Input incremental encoder

Number of incremental encoder1
Connection (increment encoder)9-pin D-Sub female connector
Supply voltage for incr.10 ... 30 VDC, 4.75 ... 5.25 VDC
Phase pos. diff.sign. inc.enc.90° ±30°

Inputs

Number of inputs6
Signal level at input at 0-3 - +5 VDC
U input to EN 61131-2 Type 124 V DC
Potential isolation inputYes

Semiconductor outputs

Tolerance ext. volt. DC S/C-15 %/+20 %
Pot. isol. S/C outputYes
S/C output short circuit proofYes

SafetyNET p interface

Connector type Safetynet i/fRJ45
Safetynet transmission rate100 MBit/s

PROFIBUS-DP interface

Perm. PROFIB. statn. addresses0 ... 126d
Setting PROFIBUS station addr.Software
Connector type Profibus inter.RJ45
Name PROFIBUS protocolDPV0
PROFIBUS operating modesAutoBaud
Name description file profibPilz0DCC.gsd
PROFIBUS manufacturer ID0DCCh

Ethernet interface

Ethernet IP addr. factory set192.168.0.11
Connector type ETHERNET int.RJ45
Ethernet transmission rate1 Gbit/s
Number of Ethernet interfaces1

CANopen interface

Number of CANopen interfaces1
CANopen typeMaster, Slave
Canopen cycle time1 ms, 2 ms, 4 ms
Canopen transmission times500 kBit/s, 250 kBit/s, 1000 kBit/s
Pot. isolation CAN and systemyes

EtherNet/IP interface

Pot. isol. EtherNet & systemYes

Environmental data

Climatic suitability to ...EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14
Ambient temperature standardEN 60068-2-14
Ambient temperature0 … 40 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standard ...EN 61131-2
Vibration to standard ...EN 60068-2-6
Acc. shock to standard1150 m/s²
Cooling typeBuilt-on fan
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear.&creep.2
Protection type standardEN 60529
Protection type, housingIP20

Potential separation

Potential isolation 1 betweenRotary encoder&system voltage
Type of potential isolation 1Basic insulation
Potential isolation 2 betweenEthernet and system voltage
Type of potential isolation 2Basic insulation
Potential isolation 3 betweenSafetyNet and system voltage
Type of potential isolation 3Basic insulation
Potential isolation 4 betweenSC output and system voltage
Type of potential isolation 4Basic insulation
Potential isolation 5 betweenInput and system voltage
Type of potential isolation 5Basic insulation
Potential isolation 6 betweenCANopen and system voltage
Type of potential isolation 6Basic insulation

Mechanical data

Housing material front plateSteel 1.4016
Housing material upper partPolyester film
Terminal styleplug-in
Height dimension173 mm
Width dimension18.5 mm
Depth dimension97 mm
Net weight220 g
Gross weight320 g

Environment

REACh compliancecontains min. 1 SVHC-substance
WEEE classification (08/2018)5 devices (feed size < 50cm)

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

Application Note PMC Basic ProjectPDF · 1.0 MB
Device description files PROFIBUS-DP (GSD) PMCprimo ControllerZIP
Operating Manual PMCprimo CPDF · 1.4 MB
Programming Manual PMCprimoCHM · 2.1 MB
Programming Manual CODESYS 3CHM · 3.5 MB

CAD & dimension drawings

CAD 2D drawing (Portable Document Format (Adobe Acrobat))PDF · 0.4 MB
CAD 2D drawing (DXF Autodesk Drawing Interchange Format)ZIP · 0.7 MB
CAD 3D model (IGES - Initial Graphics Exchange Spec.)ZIP · 2.5 MB
CAD 3D model (STEP - Product Model Data)ZIP · 0.7 MB
Electrical CAD Data: EPLAN P8 MacroEDZ · 0.1 MB
Certificates (1)
EU/EC-Declaration of ConformityPDF
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide

More Pilz parts

PMCprimo C.0/A/B/3Available on requestPMCprimo C.0/A/B/3
MPN: 680061 · Pilz
Price on request
Request a quote
PMCprimo C.0/A/B/4Available on requestPMCprimo C.0/A/B/4
MPN: 680062 · Pilz
Price on request
Request a quote
PMCprimo C.0/A/B/5Available on requestPMCprimo C.0/A/B/5
MPN: 680063 · Pilz
Price on request
Request a quote
PMCprimo C.0/A/B/6Available on requestPMCprimo C.0/A/B/6
MPN: 680064 · Pilz
Price on request
Request a quote
PMCprimo MC.C/16DIDO/2Available on requestPMCprimo MC.C/16DIDO/2
MPN: 680080 · Pilz
Price on request
Request a quote
PMCprimo MC.C/16DIDO/3Available on requestPMCprimo MC.C/16DIDO/3
MPN: 680081 · Pilz
Price on request
Request a quote

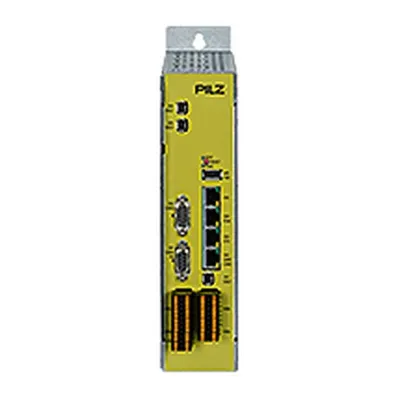

PMCprimo MC.C/16DIDO/4Available on requestPMCprimo MC.C/16DIDO/4
