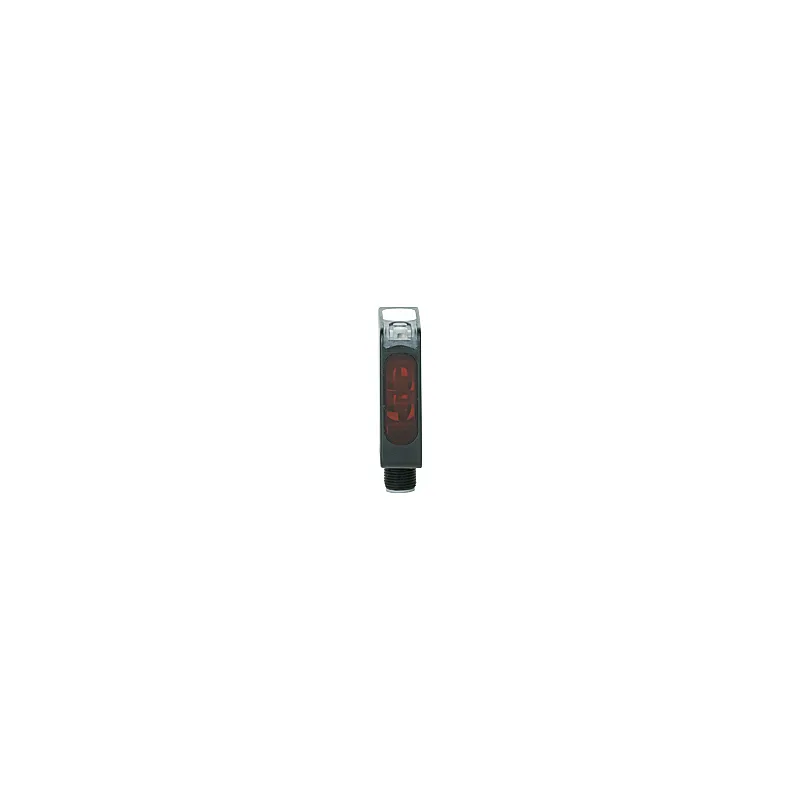

Pilz 630832
PSEN op3.2 Emitter M12
- MPN
- 630832
- EAN
- 4046548082098
- Category
- Accessories PSENopt
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 630832?
Single-channel light guard / transmitter, for use as a muting sensor, supply voltage 24 V, connector M12, 4-pin. Please note that the receiver (630831) must be ordered separately.
Specifications
General data
| Product ID (Pilz order number) | 630832 |
| Approval | CE, cULus Listed |
| Operating range (m) | 0, 25 |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 10, 30 |
Optical data
| Used wavelength range | 640 nm |
Environmental data
| Ambient temperature | -10 … 55 °C |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 30g |
| Protection type, housing | IP67 |
Times
| Reaction time | 1 |
Mechanical data
| Housing material | ABS |
| Height dimension | 50 mm |
| Width dimension | 66 mm |
| Depth dimension | 18 mm |
| Net weight | 30 g |
| Gross weight | 78 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272792 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 46171620 |
| GTIN | 4046548082098 |
| Volume | 0 dm3 |
| Harmonized System Code | 90319000 |
| Quantity per packaging unit | 1 |
