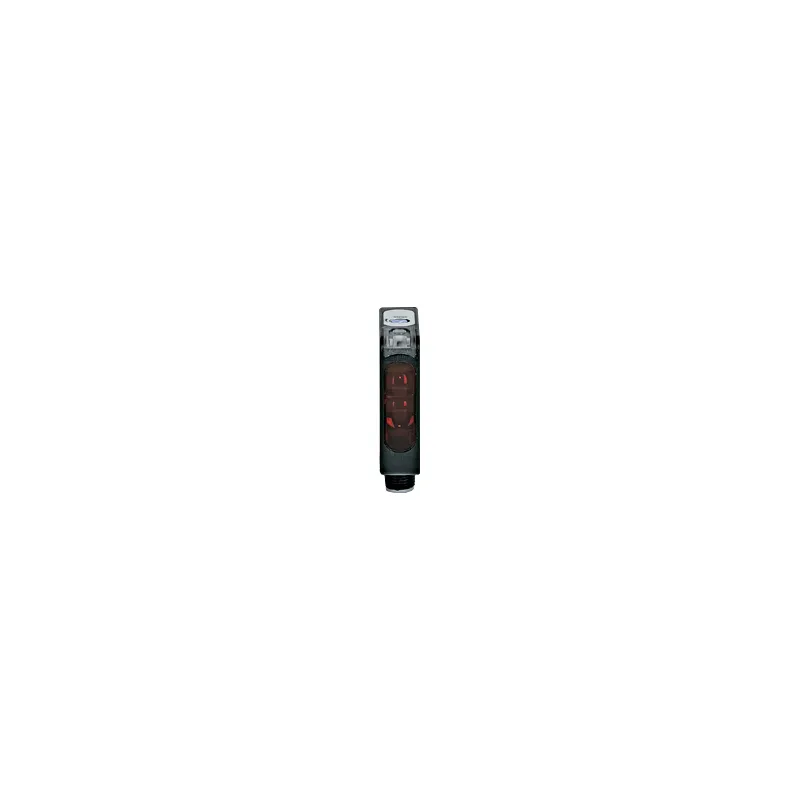

Pilz 630831
PSEN op3.1 Receiver NO/NC M12
- MPN
- 630831
- EAN
- 4046548082081
- Category
- Accessories PSENopt
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 630831?
Single-channel light guard / receiver with N/O / N/C outputs, for use asa muting sensor, supply voltage 24 V, connector M12, 4-pin. Please note that the transmitter (630832) must be ordered separately.
Specifications
General data
| Product ID (Pilz order number) | 630831 |
| Approval | CE, cULus Listed |
| Operating range (m) | 0, 25 |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 10, 30 |
Optical data
| Used wavelength range | 640 nm |
Environmental data
| Ambient temperature | -10 … 55 °C |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 30g |
| Protection type, housing | IP67 |
Times
| Reaction time | 1 |
Mechanical data
| Housing material | ABS |
| Height dimension | 50 mm |
| Width dimension | 66 mm |
| Depth dimension | 18 mm |
| Net weight | 30 g |
| Gross weight | 78 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272792 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 46171620 |
| GTIN | 4046548082081 |
| Volume | 0 dm3 |
| Harmonized System Code | 90319000 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
630831: frequently asked questions
When can 630831 be shipped?
630831 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 630831 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 630831 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 630831, subject to availability and destination.
