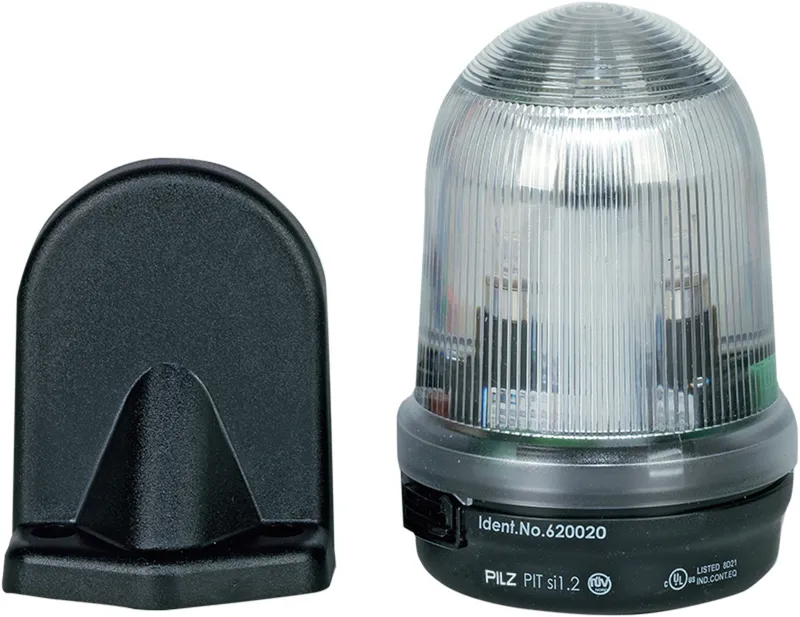

NewPilz 620020
PIT si 1.2 muting lamp self monitoring
- MPN
- 620020
- EAN
- 4046548002607
- Category
- PITsign
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 620020?
PITsign muting lamp in accordance with EN 61496 including incandescentlamp and wall mounting, permanent light with option for monitoring, UB = 24 V DC/ 7 W / 500 mA, 2 semiconductor outputs for function monitoring, protectiontype housing: IP65, diameter: 100 mm, height: 138.5 mm, signal lamp for Muting operation.
Specifications
General data
| Product ID (Pilz order number) | 620020 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Self-monitored | yes |
| Lamp | Bulb |
| Lamp type | BA15d, 24 V DC, 7W |
| Elec. service life signal lamp | 1,000 hours |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 7 |
Semiconductor outputs
| Number of semicond. outputs | 2 |
| S/C output short circuit proof | Yes |
Environmental data
| Ambient temperature | 0 … 50 °C |
| EMC to standard ... | EN 61000-6-2 |
| Protection type, housing | IP65 |
Mechanical data
| Cable entry | ISO 20 mm |
| Mounting position | upright |
| Housing material of cover | PC |
| Housing material lower section | ABS |
| Connection terminal | Screw terminal |
| Height dimension | 138.5 mm |
| Diameter | 100 |
| Net weight | 218 g |
| Gross weight | 351 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27143209 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000035 |
| ETIM Reference Feature | EC001332 |
| UNSPSC 25 | 39121534 |
| GTIN | 4046548002607 |
| Volume | 2.657 dm3 |
| Harmonized System Code | 85311095 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
620020: frequently asked questions
When can 620020 be shipped?
620020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 620020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 620020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 620020, subject to availability and destination.
