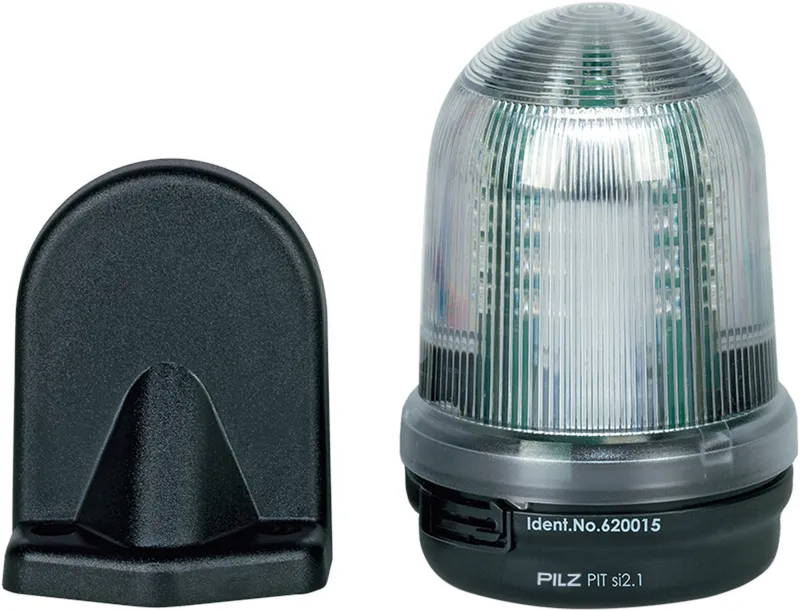

Pilz 620015
PIT si2.1 LED muting lamp
- MPN
- 620015
- EAN
- 4046548043723
- Category
- PITsign
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 620015?
PITsign LED muting lamp including LED and wall mounting, UB = 24 V DC / 4 W / <200 mA, protection type housing: IP65, diameter: 90 mm, height:125 mm, signal lamp for muting mode.
Specifications
General data
| Product ID (Pilz order number) | 620015 |
| Approval | CE, UKCA |
| Self-monitored | no |
| Lamp | LED |
| Lamp colour | yellow |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 4 |
Environmental data
| Ambient temperature | -20 … 50 °C |
| Protection type, housing | IP65 |
Mechanical data
| Cable entry | ISO 20 mm |
| Mounting position | upright |
| Housing material of cover | PC |
| Housing material lower section | ABS |
| Connection terminal | Screw terminal |
| Height dimension | 125 mm |
| Diameter | 90 |
| Net weight | 205 g |
| Gross weight | 334 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27143209 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000035 |
| ETIM Reference Feature | EC001332 |
| UNSPSC 25 | 39121534 |
| GTIN | 4046548043723 |
| Volume | 2.657 dm3 |
| Harmonized System Code | 85311095 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
620015: frequently asked questions
When can 620015 be shipped?
620015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 620015 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 620015 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 620015, subject to availability and destination.
