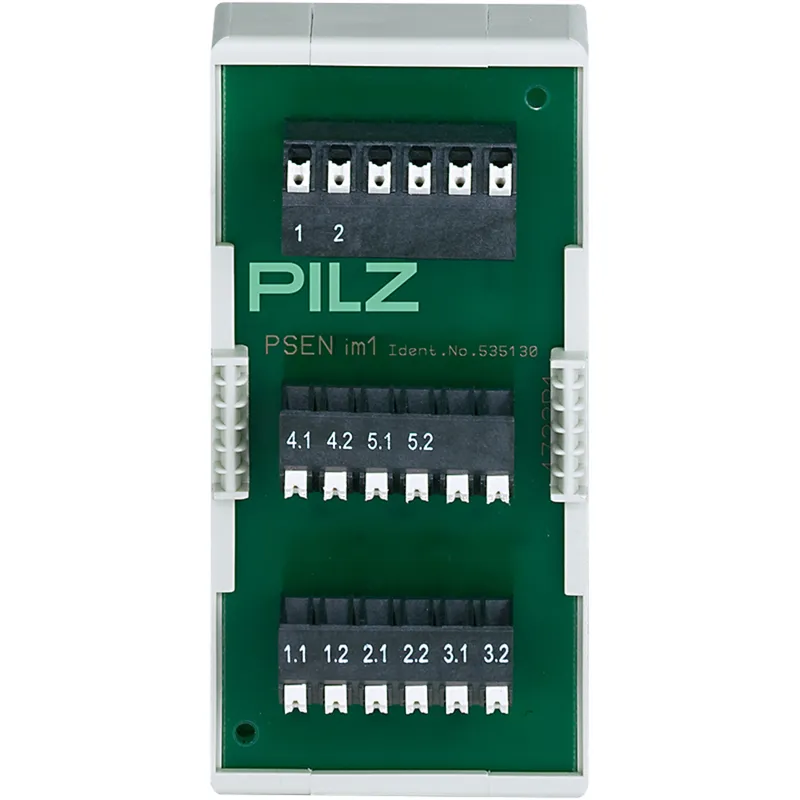

Pilz 535130
PSEN im1
- MPN
- 535130
- EAN
- 4046548026795
- Category
- Accessories PNOZmulti
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 535130?
Interfaces PSEN im1 for connecting and evaluating several pressure-sensitive safety mats to the PNOZmulti system, 96 x 48 x 43.5mm (H x W x D), connection type spring-loaded terminals.
Specifications
General data
| Product ID (Pilz order number) | 535130 |
| Approval | CE, UKCA, cULus Listed |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Type of supply voltage U1 | DC |
Environmental data
| Climatic suitability to ... | DIN IEC 60068-2-3 |
| Ambient temperature | 0 … 60 °C |
| EMC to standard ... | EN 60947-5-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | VDE 0110-1 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Connection terminal | Spring-loaded terminal |
| Height dimension | 96 mm |
| Width dimension | 48 mm |
| Depth dimension | 43.5 mm |
| Net weight | 83 g |
| Gross weight | 93 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440111 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002585 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548026795 |
| Volume | 0.263 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (2)
535130: frequently asked questions
When can 535130 be shipped?
535130 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 535130 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 535130 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 535130, subject to availability and destination.
