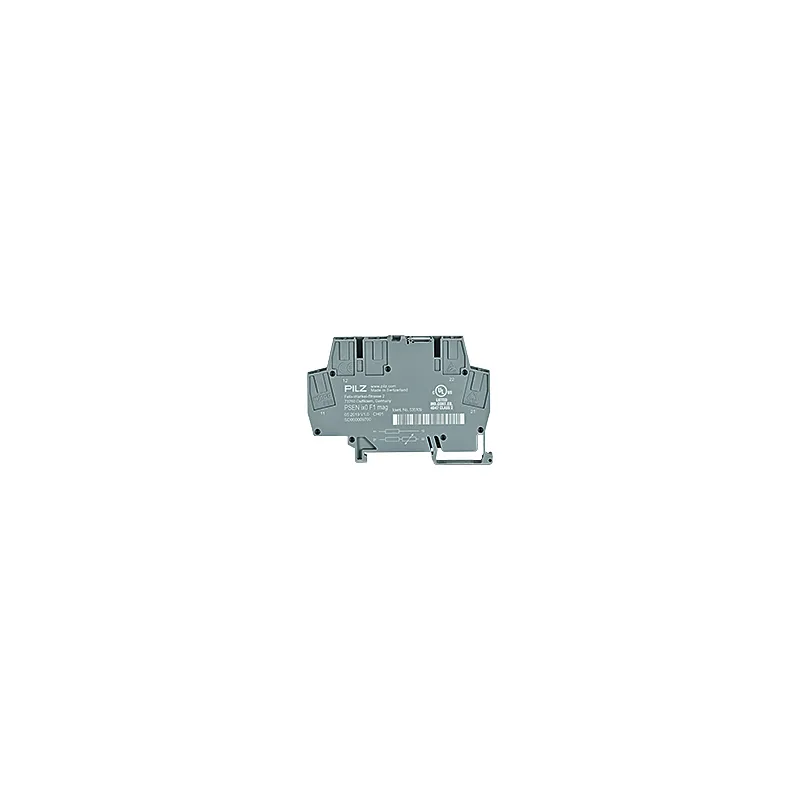

Pilz 535109
PSEN ix0 F1 mag
- MPN
- 535109
- EAN
- 4046548094220
- Category
- Accessories PSENmag
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 535109?
Control cabinet terminal, for single connection of PSEN ma1.3-22 M12/8VA (switch = 526247, unit = 506247).
Specifications
General data
| Product ID (Pilz order number) | 535109 |
| Approval | CE, cULus Listed |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature | -10 … 55 °C |
| Protection type, housing | IP20 |
Mechanical data
| Connection terminal | Spring-loaded terminal |
| Height dimension | 56 mm |
| Width dimension | 7 mm |
| Depth dimension | 91 mm |
| Net weight | 25 g |
| Gross weight | 25 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27274492 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002594 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548094220 |
| Volume | 0.263 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
535109: frequently asked questions
When can 535109 be shipped?
535109 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 535109 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 535109 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 535109, subject to availability and destination.
