Pilz 505223

Q: When can 505223 be shipped?

505223 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 505223 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 505223 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 505223, subject to availability and destination.

PSEN 1.2p-23/PSEN 1.2-20/8mm/ATEX/ 1unit

MPN: 505223
EAN: 4046548003444
Category: PSENmag for electronic/electromechanic relays

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pilz parts? We buy surplus →

What is the Pilz 505223?

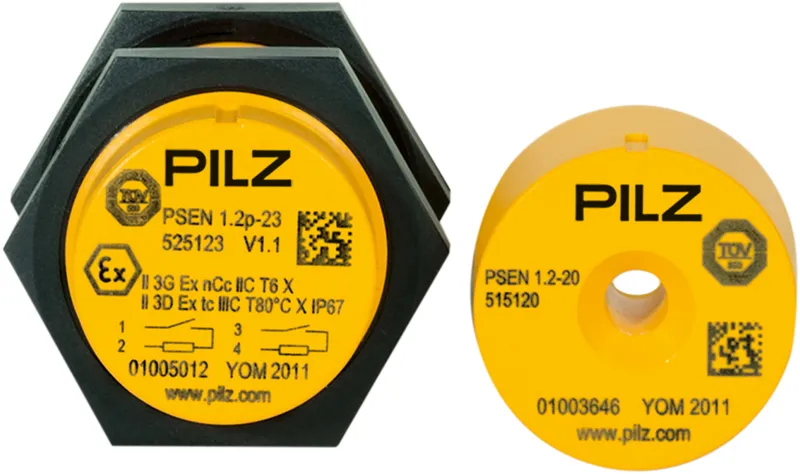

Magnetic safety switch PSENmag, with safety switch and round actuator, ATEX certificate, 4-pin M8 male connector, incl. 1 pair CABLE/M8/CLIP to secure 1 M8 plug-in connector

Specifications

General data

Product ID (Pilz order number)	505223
Approval	CE, UKCA, cULus Listed, ATEX, electrosuisse, EAC (Eurasian), TÜV
Sensor principle	magnetic
Coding level to ISO 14119	Low
Classification to EN 60947-5-3	PDDB
Suitable for series connection	no
unit type	Unit
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24
Type of supply voltage U1	DC
Switching voltage	24

Environmental data

ATEX certificate number	SEV 12 ATEX 0121 X
ATEX category dust	II 3D Ex mc tc IIIC T80°C
ATEX application area X	X: -10°C ≤ ta ≤ +55°C
Ambient temperature	-10 °C
Max. ambient temp. at 2000 m	+55 °C
Climatic suitability standard	IEC 60068-2-30
Humidity rating	93 % r. h. at 40 °C
Perm. operating height ASL	2000 m
EMC to standard ...	EN 60947-5-3
Vibration to standard ...	EN 60947-5-2
Acc. shock to standard1	30g
Pollution degree clear.&creep.	3
Protection type, housing	IP65, IP67

Mechanical data

Type 1 actuator	PSEN 1.2-20
Sensor can be flush-mounted	Yes, follow installation guide
Connection type	M8, 4-pin male
Housing material upper part	PBT
Height dimension	30 mm
Width dimension	30 mm
Depth dimension	42.7 mm
Net weight	31 g
Gross weight	63 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	no
REACh compliance	Contains no SVHC substances
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27274401
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000026
ETIM Reference Feature	EC002544
UNSPSC 25	39122205
GTIN	4046548003444
Volume	0 dm3
Harmonized System Code	85365019
Quantity per packaging unit	1
