Pilz 504251
PSEN 1.1b-25/PSEN1.1-20/8mm/10m/EX/1unit
- MPN
- 504251
- EAN
- 4046548044775
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 504251?

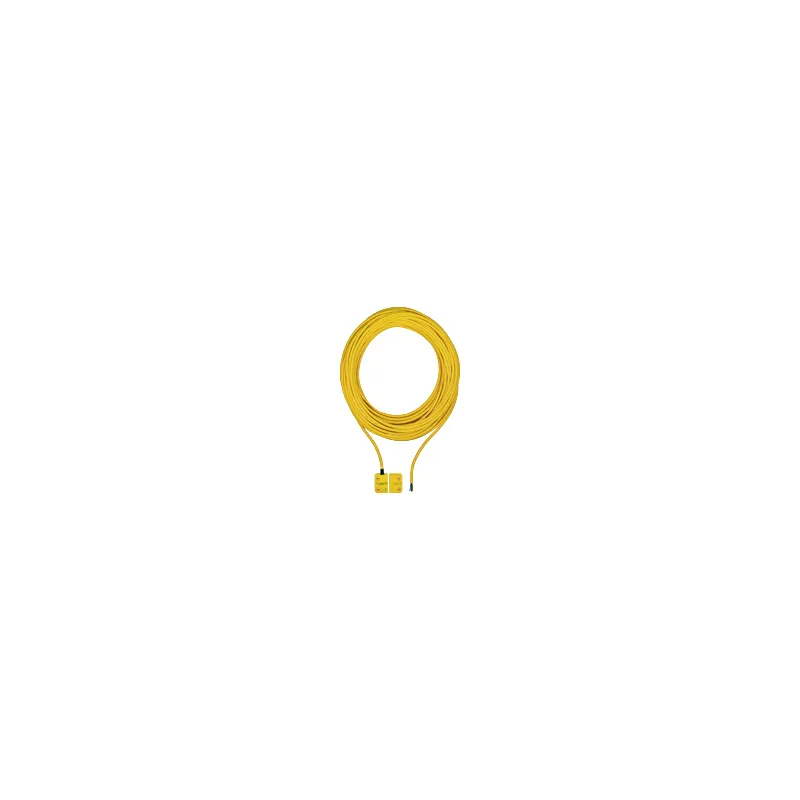

Magnetic safety switch 2 n/o, square design, height design 13 mm, IP6K9K, operating distance 8 mm, for applications withPSEN ix1, PU = 1 piece with actuator, with 10 m cable (PUR), ATEX approval.
Specifications
General data
| Product ID (Pilz order number) | 504251 |
| Approval | CE, UKCA, cULus Listed, ATEX, electrosuisse, TÜV, EAC (Eurasian), ECOLAB |
| Sensor principle | magnetic |
| Coding level to ISO 14119 | Low |
| Classification to EN 60947-5-3 | PDDB |
| Suitable for series connection | yes |
| unit type | Unit |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Switching voltage | 24 |
Environmental data
| ATEX certificate number | SEV 12 ATEX 0121 X |
| ATEX category dust | II 3D Ex mc IIIC T80°C |
| ATEX application area X | X: -10°C ≤ ta ≤ +55°C |
| Ambient temperature | -10 °C |
| Max. ambient temp. at 2000 m | +55 °C |
| Climatic suitability standard | IEC 60068-2-30 |
| Humidity rating | 93 % r. h. at 40 °C |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 60947-5-3 |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP69, IP67 |
Mechanical data
| Type 1 actuator | PSEN 1.1-20 |
| Sensor can be flush-mounted | Yes, follow installation guide |
| Connection type | 10 m cable |
| Cable lines | LiY11Y 4 x 0.25 mm2 |
| Housing material upper part | PC |
| Height dimension | 36 mm |
| Width dimension | 26 mm |
| Depth dimension | 13 mm |
| Net weight | 357 g |
| Gross weight | 370 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27274401 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002544 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548044775 |
| Volume | 0 dm3 |
| Harmonized System Code | 85365019 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
- CAD 2D drawing (Portable Document Format (Adobe Acrobat))
- CAD 2D drawing (Portable Document Format (Adobe Acrobat))
- CAD 2D drawing (DXF Autodesk Drawing Interchange Format)
- CAD 2D drawing (DXF Autodesk Drawing Interchange Format)
- CAD 3D model (IGES - Initial Graphics Exchange Spec.)
- CAD 3D model (IGES - Initial Graphics Exchange Spec.)
- CAD 3D model (STEP - Product Model Data)
- CAD 3D model (STEP - Product Model Data)
- Electrical CAD Data: EPLAN P8 Macro
Certificates (9)
- Certificate (UL) E153882
- Attestation (SEV-Eurofins) SEV-12-ATEX-0121-X
- Type examination certificate (TÜV) M6A-020132-0223-R02
- Self Declaration (CQC) CCC_Declaration-of-exemption
- Certificate (UL) NRNT.E153882
- Attestation (ECOLAB) Food Industry (PSENma1.x+2.x)
- Certificate (EAC) RU-C-DE-HB-B-03003-23
- EU/EC-Declaration of Conformity (Konformitätserklärung)
- UK Declaration of Conformity (UKCA)
504251: frequently asked questions
When can 504251 be shipped?
504251 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 504251 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 504251 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 504251, subject to availability and destination.
