What is the Pilz 401110?

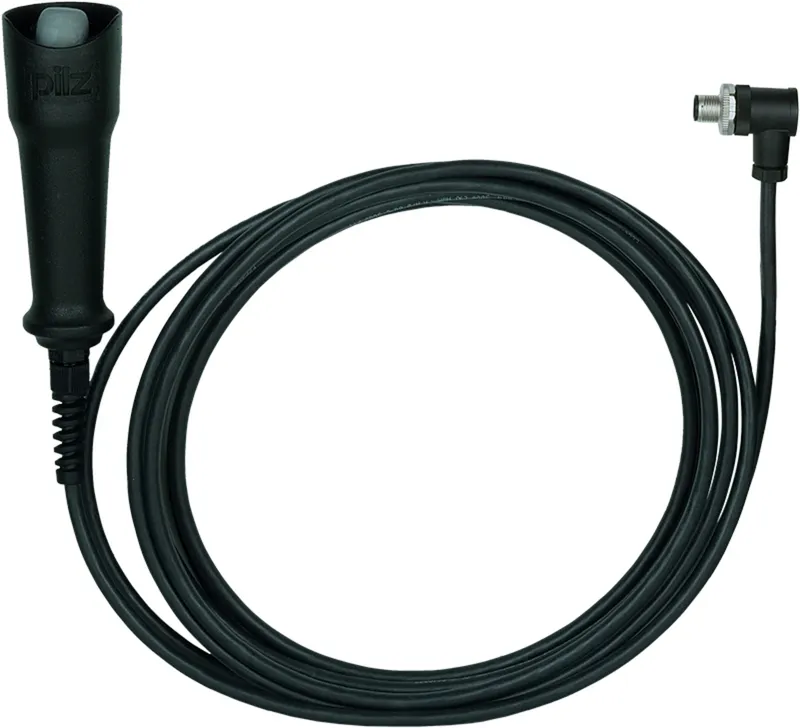

PITenable 3-step enable switch, 5 m connection cable and M12 angled connector.
Specifications
General data
| Product ID (Pilz order number) | 401110 |
| Approval | CE, UKCA |
| Self-monitored | no |
| Lifecycle | Active (current Pilz product) |
Relay outputs
| Utilisation cat. AC15/DC13sta. | EN 60947-5-1 |
| Voltage AC15 safety cont. | 125 |
| Max. current AC15 safety cont. | 0.3 |
| Voltage DC13 safety cont. | 30 |
| Max.current DC12 safety cont. | 1 |
Environmental data
| Ambient temperature | 0 … 50 °C |
| Protection type, housing | IP65 |
Mechanical data
| Length cable | 5 |
| Material of cable insulation 1 | PUR |
| Mounting position | any |
| Connection type | M12, 5-pin male, angled |
| Housing material lower section | PP |
| Height dimension | 125 mm |
| Width dimension | 45 mm |
| Depth dimension | 45 mm |
| Diameter | 45 |
| Net weight | 383 g |
| Gross weight | 409 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371238 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002571 |
| UNSPSC 25 | 32131023 |
| GTIN | 4046548065138 |
| Volume | 0 dm3 |
| Harmonized System Code | 85371098 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
401110: frequently asked questions
When can 401110 be shipped?
401110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 401110 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 401110 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 401110, subject to availability and destination.
