Pilz 401101

PIT js2 bc

MPN
401101
EAN
4046548096088
Category
PITjog
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 401101?

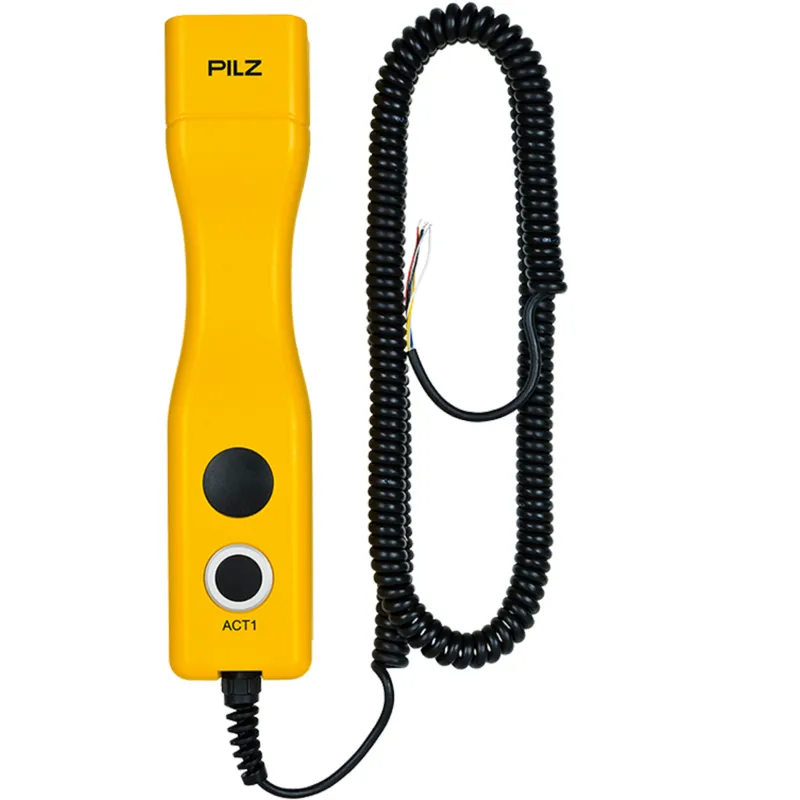

PITjog manually operated control device, 2 installed pushbuttons (each N/C / N/O) and 1 blind plug, connection via 10-pin coiled cable with open end, cable length: 5 m.

Specifications

General data

Product ID (Pilz order number)401101
ApprovalCE, UKCA
Self-monitoredno
LifecycleActive (current Pilz product)

Electrical data

Supply voltage (V)24
Type of supply voltage U1AC/DC

Push button

Number, pushbutton2

Relay outputs

Voltage DC1 safety cont.24

Environmental data

Ambient temperature-10 … 55 °C
Protection type, housingIP65

Mechanical data

Length cable5
Material of cable insulation 1PUR
Conductor cross section0.14
Housing materialPC-ABS-Blend UL 94V0
Height dimension341 mm
Width dimension75 mm
Depth dimension60 mm
Net weight823 g
Gross weight923 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsno
RoHS except.s acc. to direct.7a, 7c I
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead, Lead oxide
%-part of the pollutant> 0,1
CAS No.7439-92-1, 1317-36-8
SCIP entry available0
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27371244
ETIM VersionETIM-9.0
ETIM Reference GroupEG000017
ETIM Reference FeatureEC002034
UNSPSC 2532131023
GTIN4046548096088
Volume5.934 dm3
Harmonized System Code85365011
Quantity per packaging unit1

401101: frequently asked questions

When can 401101 be shipped?

401101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 401101 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 401101 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 401101, subject to availability and destination.
