Pilz 329302
PSS u2 PS1 -R
- MPN
- 329302
- EAN
- 4046548106374
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 329302?

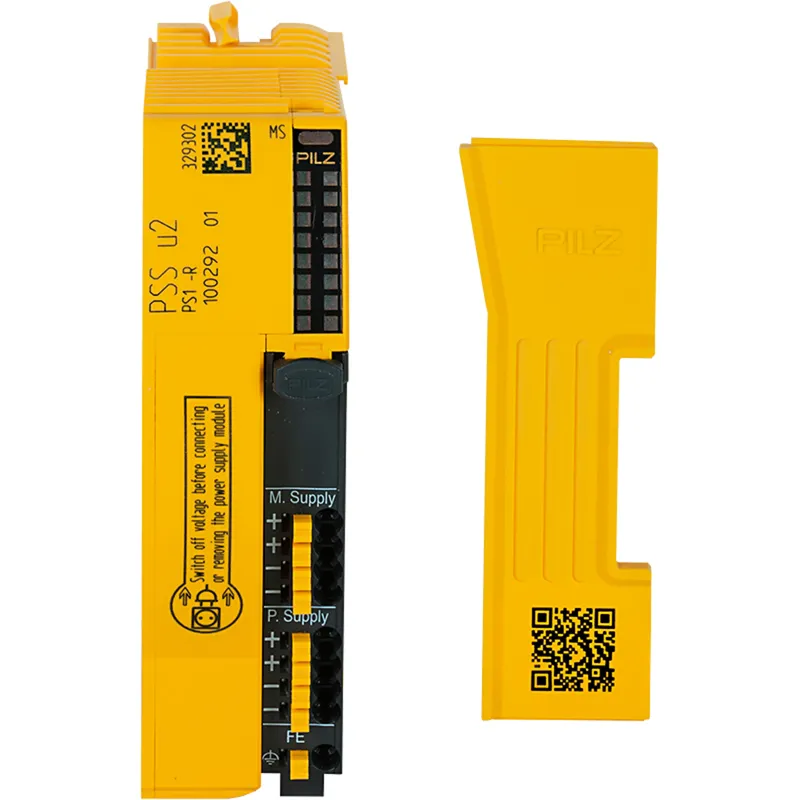

Supply voltage module for PSS u2 head module for connecting module supply and periphery supply, connection for functional earth, potential isolation, for increased environmental requirements andrailway applications
Specifications
General data
| Product ID (Pilz order number) | 329302 |
| Approval | CE, UKCA, cULus Listed |
| Application range | Standard |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Module Supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 31 |
| Purpose of U2 | Periphery Supply |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -30 %/+25 % |
| Potential isolation U2 | ja |
Environmental data
| App. site standard1 railway | EN 50125-3 |
| App. site to standard1 railway | Abstand mind. 1m vom Gleis |
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN IEC 60068-2-14, EN 60068-2-78 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -40 °C |
| UL spec. ambient temperature | UL 61010 |
| Ambient temp. with UL | -40 - 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 95 % r. F. bei 40 °C |
| Condensation permitted? | EN 60068-2-30 |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 12015, EN 12016, EN IEC 61000-6-2, EN 50121-4, EN 298, EN 61000-6-7, EN IEC 61000-6-4, EN 61131-2 (Zone B), EN 50156-1 |
| Vibration to standard ... | EN 60068-2-6 |
| Broad band noise to | EN 60068-2-64 |
| Acc. shock to standard1 | 150 m/s² |
| Acc. shock to standard2 | 100 m/s² |
| Clearance & creepage dist.to 2 | EN 81-20, EN 50156-1 |
| Overvoltage category 2 | III |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, mounting | IP51 |
| Protection type, housing | IP20 |
| Terminal protection type | IP20 |
Potential separation
| Potential isolation 1 between | UB und Periphery Supply |
| Type of potential isolation 1 | Funktionsisolierung, Basisisolierung |
| Potential isolation 2 between | UB und Module Supply |
| Type of potential isolation 2 | Funktionsisolierung, Basisisolierung |
| Potential isolation 3 between | Periphery und Module Supply |
| Type of potential isolation 3 | Funktionsisolierung, Basisisolierung |
Mechanical data
| Housing material | PC |
| Connection terminal | Federkraftklemme |
| Terminal style | steckbar |
| Height dimension | 109.3 mm |
| Width dimension | 31.3 mm |
| Depth dimension | 95.40000000000001 mm |
| Net weight | 138 g |
| Gross weight | 147 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242611 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC002583 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548106374 |
| Volume | 0.358 dm3 |
| Harmonized System Code | 85044095 |
| Quantity per packaging unit | 1 |
