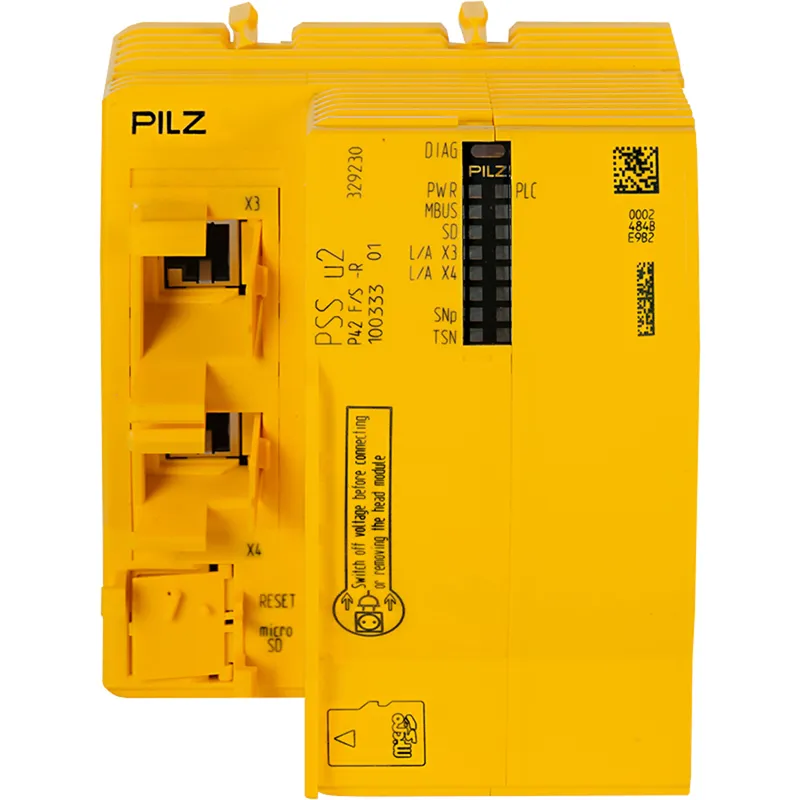

Pilz 329230
PSS u2 P42 F/S -R
- MPN
- 329230
- EAN
- 4046548097108
- Category
- PSS u2 H PSS 4000
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 329230?
Head module for PSS u2 in the automation system PSS 4000, PLC in accordance with IEC 61131, failsafe and standard, 2 RJ45 socket connector, SafetyNET p, Modbus/TCP, Raw UDP, Raw TCP, slot for microSD card, for increased environmental requirements and railway applications.
Specifications
General data
| Product ID (Pilz order number) | 329230 |
| Approval | CE, TÜV |
| Application range | Standard/Fail-safe |
| Lifecycle | Active (current Pilz product) |
Programming
| IEC 61131 programming | ja |
| Multi programming | ja |
| Non-volatile variables | ja |
CPU
| User memory total | 5 MB |
| User memory total | 20 MB |
| User memory total | 5 MB |
| Time deviation | +/- 10s/Tag |
| RAM | 256 MB |
| NV user memory FS section | 382 kB |
Removable storage media
| Plug-in memory | µSD-Karte |
SafetyNET p interface
| Connector type Safetynet i/f | RJ45 |
| Safetynet transmission rate | 100 MBit/s |
| Setting SafetyNet trans.rate | automatisch |
| SafetyNET p cycle time | 2 ... 60 000 ms |
Modbus/TCP
| MODBUS cycle time | 2 ... 2 000 000 ms |
Raw UDP
| RAW UDP cycle time | 2 ... 2 000 000 ms |
Environmental data
| App. site standard1 railway | EN 50125-3 |
| App. site to standard1 railway | Gleisbereich (1m - 3m) |
| App. site standard2 railway | EN 61373 |
| App. site to standard2 railway | Kategorie 1, Klasse A + B |
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -40 °C |
| Standard 2 for ambient temp. | EN 50125-1 |
| Ambient temp. to standard 2 | -40 ... +70 °C |
| Standard 3 for ambient temp. | EN 50125-3 |
| Ambient temp. to standard 3 | -40 ... +70 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78, EN 50125-3 |
| Condensation permitted? | EN 60068-2-30 |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | P_EMV_NORM_EN IEC 61000-6-2, P_EMV_NORM_EN 50121-4, P_EMV_NORM_EN IEC 61000-6-4, P_EMV_NORM_EN 61131-2 (Zone B) |
| Broad band noise to | EN 60068-2-64 |
| Standard1 b/band noise, rail | EN 61373 |
| Freq. broadband noise, rail | 5 ... 150 Hz |
| Acceleration broadband noise | 2,3 m/s² eff. |
| Acc. shock to standard1 | 150 m/s² |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, mounting | IP54 |
| Protection type, housing | IP20 |
| Terminal protection type | IP20 |
Potential separation
| Potential isolation 1 between | Module Supply und SafetyNET p |
| Type of potential isolation 1 | Funktionsisolierung |
Mechanical data
| Housing material | PC |
| Housing material lower section | PC |
| Height dimension | 107.4 mm |
| Width dimension | 93.7 mm |
| Depth dimension | 95.8 mm |
| Net weight | 260 g |
| Gross weight | 270 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242207 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC000236 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548097108 |
| Volume | 1.553 dm3 |
| Harmonized System Code | 85371091 |
| Quantity per packaging unit | 1 |
