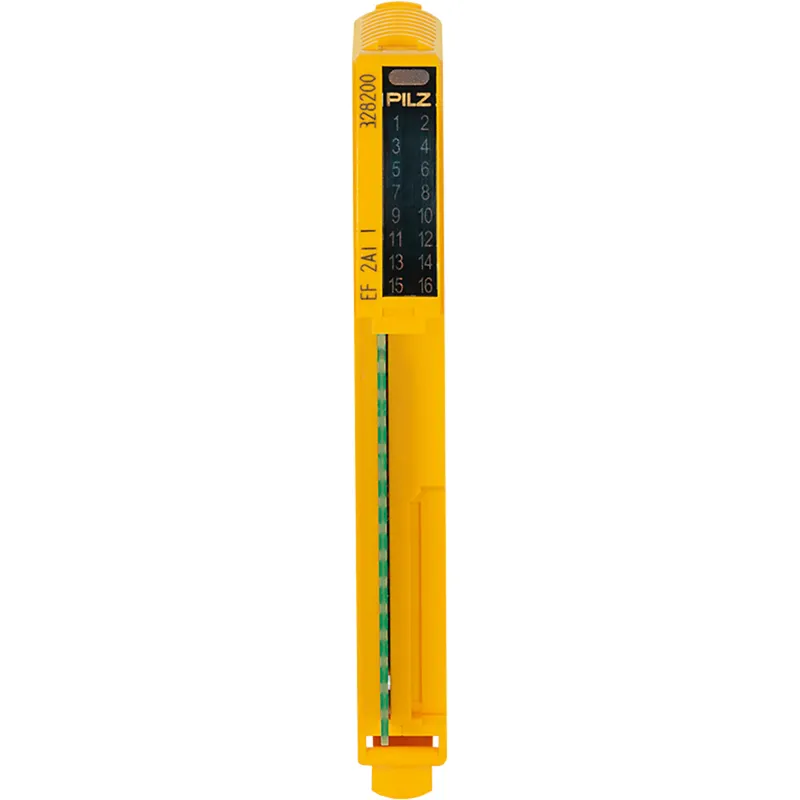

Pilz 328200
PSS u2 EF 2AI I
- MPN
- 328200
- EAN
- 4046548072136
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 328200?
PSS u2, electronic module, failsafe, 2 analogue inputs for currentmeasurement, 0 .. 25.6 mA, dual-pole, 15 Bit resolution, separately configurable
Specifications
General data
| Product ID (Pilz order number) | 328200 |
| Approval | CE, UKCA, cULus Listed, TÜV, EAC (Eurasian) |
| Application range | Fail-safe |
| Lifecycle | Active (current Pilz product) |
Analog inputs
| Number of analogue inputs | 2 |
| Type of analogue inputs | Strom |
| Analog input signal type 1 | Differenzeingang |
| Analog input Signal range 1 | 0 - 25,6 mA |
| Type of input filter | RC-Filter, 1. Ordnung |
| R analog current i/p+thresh.V | 156 Ohm + ca. 1,6V Schwellensp |
| Resolution of analogue inputs | 15 |
| Monotony without error codes | yes |
| Conversion method analog i/p | sukzessive Approximation |
| Potential isol. Analogue input | ja |
Voltage outputs
| Function of output U2 | Sensorversorgung |
| DC voltage at output 2 | 24 V DC |
| U2 output short-circuit proof | ja |
| Potential isolation U2 output | ja |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN IEC 60068-2-14, EN 60068-2-78 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -25 °C |
| Ambient temp. with UL | -25 - 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 95 % r. F. bei 40 °C |
| Condensation permitted? | unzulässig |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 12015, EN 12016, EN IEC 61000-6-2, EN 298, EN 61000-6-7, EN IEC 61000-6-4, EN 61131-2 (Zone B), EN 50156-1 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 150 m/s² |
| Acc. shock to standard2 | 100 m/s² |
| Clearance & creepage dist.to 2 | EN 81-20, EN 50156-1 |
| Overvoltage category 2 | III |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
| Terminal protection type | IP20 |
Potential separation
| Potential isolation 1 between | Anal. Eing. und Module Supply |
| Type of potential isolation 1 | Funktionsisolierung |
| Potential isolation 2 between | Anal. Eing. und Periph. Supply |
| Type of potential isolation 2 | Funktionsisolierung |
| Potential isolation 3 between | Analoger Eingang und P0 |
| Type of potential isolation 3 | Funktionsisolierung |
| Potential isolation 4 between | Periphery und Module Supply |
| Type of potential isolation 4 | Funktionsisolierung |
Mechanical data
| Housing material | PC |
| Terminal style | steckbar |
| Height dimension | 110.8 mm |
| Width dimension | 12.5 mm |
| Depth dimension | 72.5 mm |
| Net weight | 42 g |
| Gross weight | 55 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242604 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001599 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548072136 |
| Volume | 0.162 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
328200: frequently asked questions
When can 328200 be shipped?
328200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 328200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 328200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 328200, subject to availability and destination.
