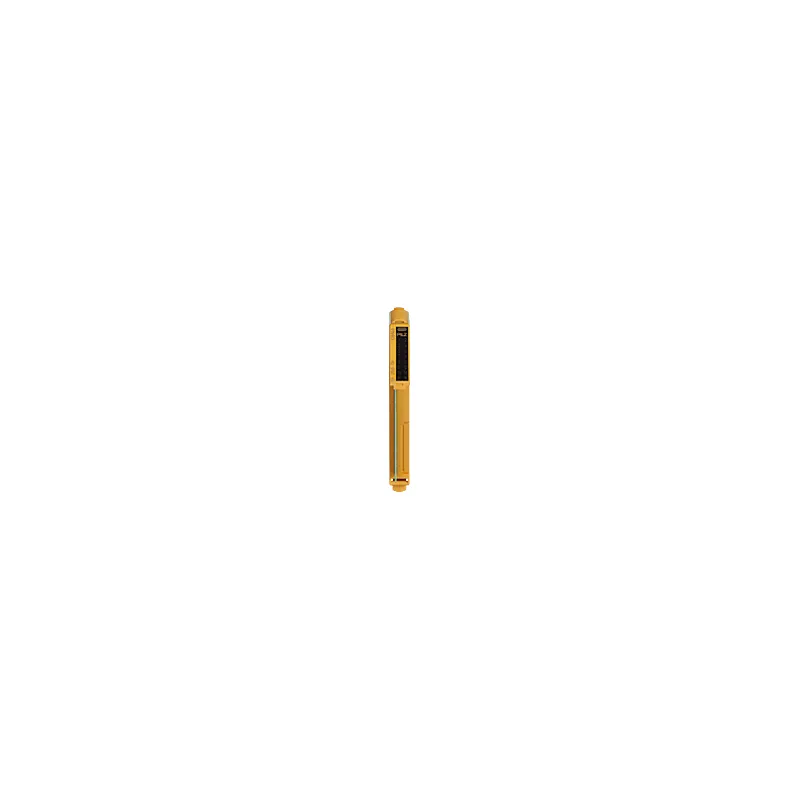

Pilz 328140

Q: When can 328140 be shipped?

328140 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 328140 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 328140 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 328140, subject to availability and destination.

PSS u2 EF 2DO TP 2A

MPN: 328140
EAN: 4046548072112
Category: PSSuniversal 2 - safe I/O modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pilz parts? We buy surplus →

What is the Pilz 328140?

PSS u2, electronic module, failsafe, 2 outputs, semiconductor 2 A, dual- pole, switch-off delay, open circuit detection, switches to 24 V (O0+) and 0 V (O0-), short circuit-proof, overload-proof, 1-row, terminal block PSS u2 T 8 required (not supplied with the system).

Specifications

General data

Product ID (Pilz order number)	328140
Approval	CE, UKCA, cULus Listed, KOSHA, TÜV, EAC (Eurasian)
Application range	Fail-safe
Lifecycle	Active (current Pilz product)

Electrical data

Permitted loads

ohmsch, induktiv, kapazitiv

Semiconductor outputs

Potential isolation S/C O	ja
S/C output short circuit proof	ja

Semiconductor outputs 2-pole

Number 2-pin SC outputs

Environmental data

Climatic suitability to ...	EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN IEC 60068-2-14, EN 60068-2-78
Ambient temperature standard	EN 60068-2-14
Ambient temperature	-25 °C
UL spec. ambient temperature	UL 61010
Ambient temp. with UL	-25 - 60 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	95 % r. F. bei 40 °C
Condensation permitted?	unzulässig
Perm. operating height ASL	5000 m
EMC to standard ...	EN 12015, EN 12016, EN IEC 61000-6-2, EN 298, EN 61000-6-7, EN IEC 61000-6-4, EN 61131-2 (Zone B), EN 50156-1
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	150 m/s²
Acc. shock to standard2	100 m/s²
Clearance & creepage dist.to 2	EN 81-20, EN 50156-1
Overvoltage category 2	III
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	II
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, housing	IP20
Terminal protection type	IP20

Potential separation

Potential isolation 1 between	HL-Ausgang und Module Supply
Type of potential isolation 1	Funktionsisolierung
Potential isolation 2 between	Periphery und Module Supply
Type of potential isolation 2	Funktionsisolierung

Mechanical data

Housing material	PC
Terminal style	steckbar
Height dimension	110.8 mm
Width dimension	12.5 mm
Depth dimension	72.5 mm
Net weight	37 g
Gross weight	46 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead
%-part of the pollutant	> 0,1
CAS No.	7439-92-1
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27242604
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000024
ETIM Reference Feature	EC001599
UNSPSC 25	39122331
GTIN	4046548072112
Volume	0.107 dm3
Harmonized System Code	85389091
Quantity per packaging unit	1
