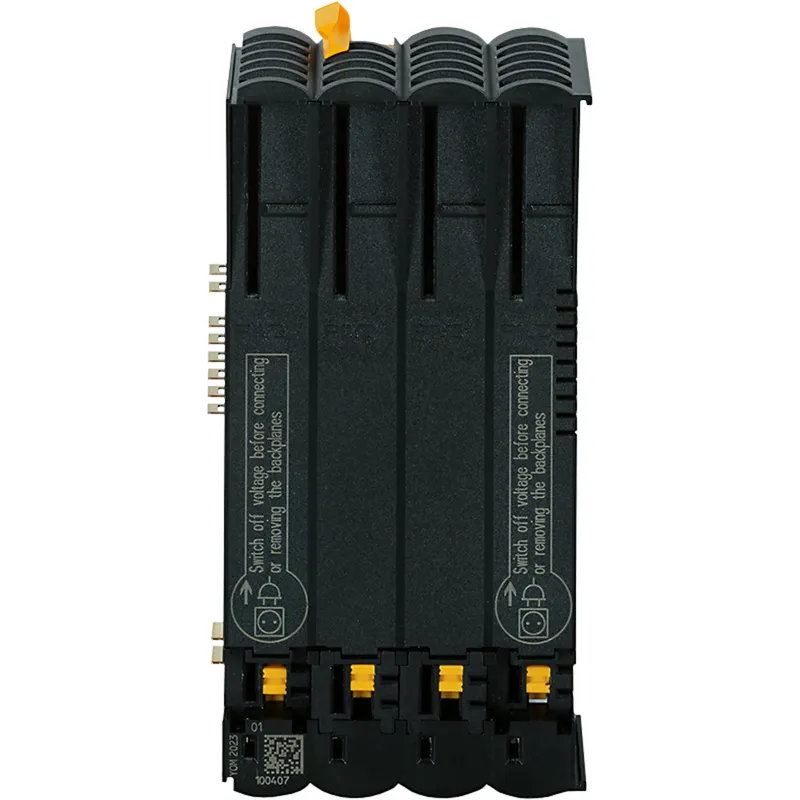

Pilz 327810
PSS u2 B 4 -R
- MPN
- 327810
- EAN
- 4046548103731
- Category
- PSSuniversal 2 - Backplanes
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 327810?
PSS u2, accessories, backplane, for electronic modules, 4 slots, for increased environmental requirements and railway applications width 50.1mm, height 107 mm, note the mounting distances.
Specifications
General data
| Product ID (Pilz order number) | 327810 |
| Approval | CE, UKCA, cULus Listed |
| Application range | Standard |
| Lifecycle | Active (current Pilz product) |
Environmental data
| App. site standard1 railway | EN 50125-3 |
| App. site standard2 railway | EN 61373 |
| App. site to standard2 railway | Kategorie 1, Klasse A + B |
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -40 … 70 °C |
| Standard 2 for ambient temp. | EN 50125-1 |
| Ambient temp. to standard 2 | -40 ... +70 °C |
| Standard 3 for ambient temp. | EN 50125-3 |
| Ambient temp. to standard 3 | -40 ... +70 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 12015, EN 12016, EN 50121-4, EN 61131-2 (Zone B) |
| Vibration to standard ... | EN 60068-2-6 |
| Broad band noise to | EN 60068-2-64 |
| Standard1 b/band noise, rail | EN 61373 |
| Freq. broadband noise, rail | 5 ... 150 Hz |
| Accel. broadband noise, rail | 5,7 m/s² eff. |
| Acc. shock to standard1 | 150 m/s² |
| Overvoltage category 2 | III |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Housing material | PPE |
| Height dimension | 107 mm |
| Width dimension | 53.9 mm |
| Depth dimension | 32.9 mm |
| Net weight | 76 g |
| Gross weight | 77 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242603 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001598 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548103731 |
| Volume | 0.193 dm3 |
| Harmonized System Code | 85381000 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
327810: frequently asked questions
When can 327810 be shipped?
327810 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 327810 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 327810 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 327810, subject to availability and destination.
