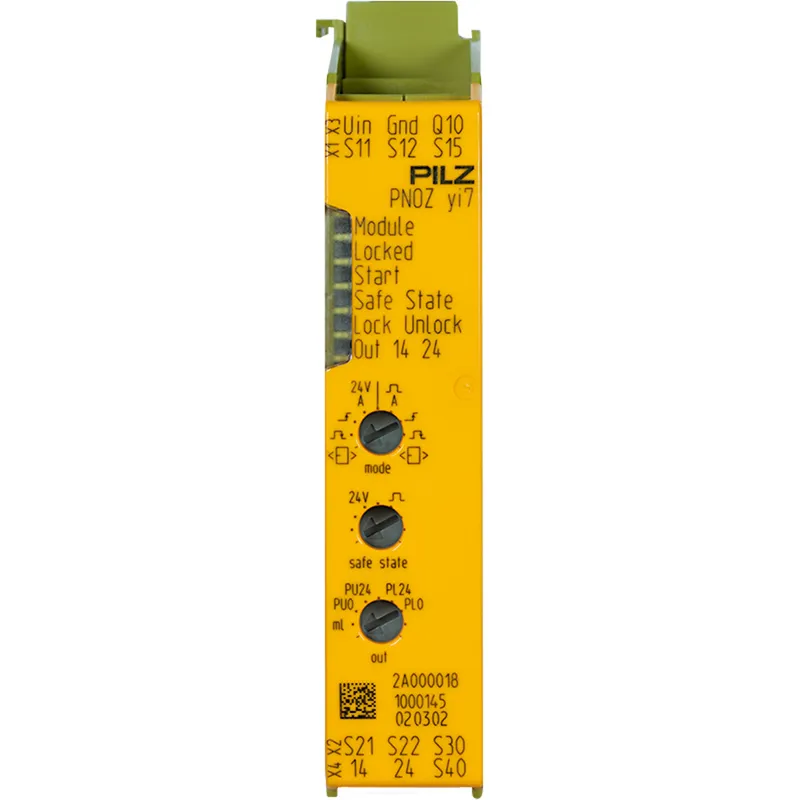

Pilz 2A000018
PNOZ yi7 lock
- MPN
- 2A000018
- EAN
- 4046548106190
- Category
- I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 2A000018?
Expansion module for the modular safety relay myPNOZ, connection for supply voltage to the semiconductor outputs, 1 guard locking management function to connect one safety lockingdevice, one safe risk-free monitoring device (e.g. standstill monitor) and 2 pushbuttons to operate the safety locking device, 1 rotary switch for start type and test pulse evaluation, 1 rotary switch for outputfunction and test pulse evaluation, LED display
Specifications
General data
| Product ID (Pilz order number) | 2A000018 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U2 | Supply of SC outputs |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Potential isolation U2 | No |
| Purpose of UINT1 | Module supply |
| Source of internal voltage | Via head module |
| Voltage type of UINT1 | DC |
Inputs
| Number of digital inputs | 4 |
| U input to EN 61131-2 Type 1 | 24 V DC |
| Potential isolation input | No |
Semiconductor outputs
| Potential isolation of S/C O | No |
| S/C output short circuit proof | Yes |
| Perm. load 1pole Output | Resistive, Inductive, Capacitive |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -20 … 55 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Condensation permitted? | Not permitted |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 60947-5-1, EN 61000-6-4, EN 61326-3-1 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 60947-5-1 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Times
| Simultaneity input circuit | ∞ |
Mechanical data
| Mounting position | any |
| Housing material lower section | PC |
| Housing material upper part | PC |
| Connection terminal | Spring-loaded terminal, Screw terminal |
| Terminal style | plug-in |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 98 mm |
| Width dimension | 17.5 mm |
| Depth dimension | 121 mm |
| Net weight | 88 g |
| Gross weight | 145 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371819 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000019 |
| ETIM Reference Feature | EC001449 |
| UNSPSC 25 | 46171620 |
| GTIN | 4046548106190 |
| Volume | 0 dm3 |
| Harmonized System Code | 85364900 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
2A000018: frequently asked questions
When can 2A000018 be shipped?
2A000018 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2A000018 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2A000018 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2A000018, subject to availability and destination.
