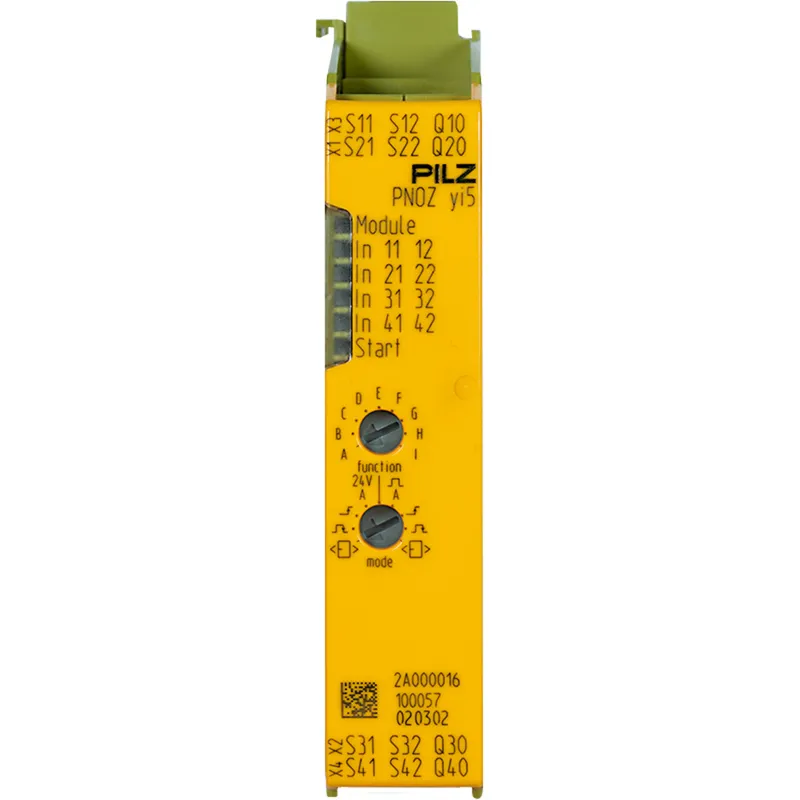

Pilz 2A000016
PNOZ yi5 8DI variable
- MPN
- 2A000016
- EAN
- 4046548098860
- Category
- I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 2A000016?
Expansion module for the modular safety relay myPNOZ, variable input functions with 3 or 4 input functions, input functions AND-linked or input functions OR-linked or input functions 2oo3-linked, 4 signal outputs, 1 rotary switch for setting the function, 1 rotary switch for setting the start type and test pulse evaluation, LED display
Specifications
General data
| Product ID (Pilz order number) | 2A000016 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of UINT1 | Versorgung des Moduls |
| Source of internal voltage | über Kopfmodul |
| Voltage type of UINT1 | DC |
Inputs
| Number of digital inputs | 8 |
| U input to EN 61131-2 Type 1 | 24 V DC |
| Potential isolation input | No |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -20 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Condensation permitted? | unzulässig |
| Perm. operating height ASL | 5000 m |
| EMC to standard ... | EN 60947-5-1, EN IEC 61000-6-4, EN 61326-3-1 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 60947-5-1 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, mounting | IP54 |
| Protection type, housing | IP20 |
| Terminal protection type | IP20 |
Times
| Simultaneity input circuit | ∞ |
Mechanical data
| Mounting position | beliebig |
| DIN-rail dimensions | 35 x 7,5 EN/IEC 60715 |
| Housing material lower section | PC |
| Housing material upper part | PC |
| Connection terminal | Federkraftklemme, Schraubklemme |
| Terminal style | steckbar |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 98 mm |
| Width dimension | 17.5 mm |
| Depth dimension | 121 mm |
| Net weight | 84 g |
| Gross weight | 140 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371819 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000019 |
| ETIM Reference Feature | EC001449 |
| UNSPSC 25 | 46171620 |
| GTIN | 4046548098860 |
| Volume | 0 dm3 |
| Harmonized System Code | 85364190 |
