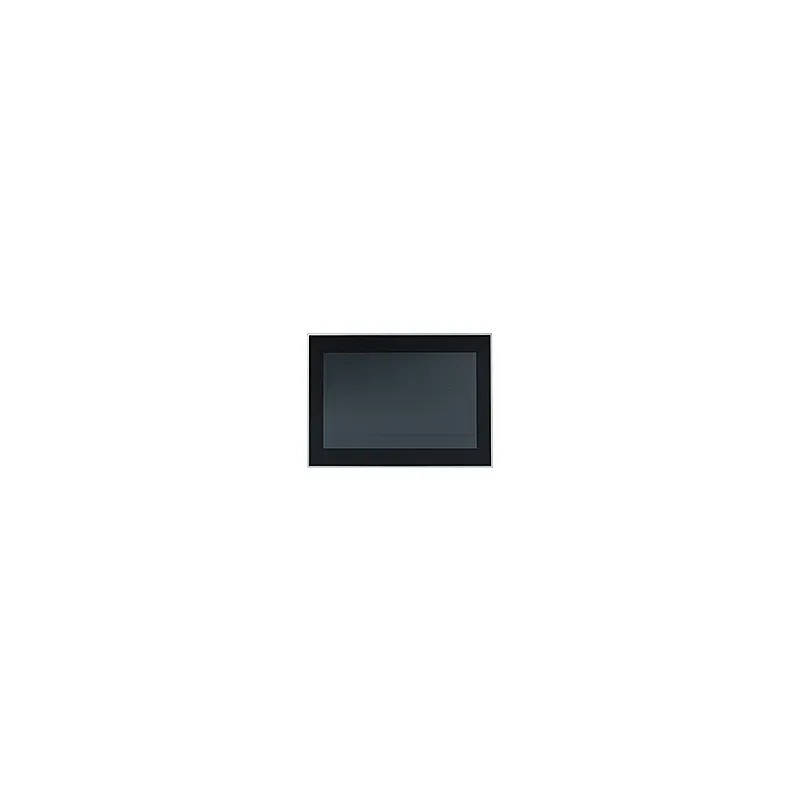

Pilz 266815

PMI v815

MPN
266815
EAN
4046548096859
Category
PMIvisu
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 266815 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 266815?

PMIvisu, diagnostic and operating terminal, 15.6", resolution 1920 x1080 pixel ,capacitive touchscreen, TFT, RAM 4 GB, SSD 32 GB, 2 RJ45 port 1 Gbit/s, 1 USB host 3.0, 2 USB host 2.0, 1 HDMI port, 1 VGA port, capacitor-buffered real-time clock, 12 ... 30 V DC, 38.5 W, OS Windows10 IOT, PASvisu Runtime installed and licensed, preinstalled software: PMI v8 Assistant, PASvisu Server and Client, PVIS OPC Server UA, PSS 4000 firmware (OPC Server UA).

Specifications

General data

Product ID (Pilz order number)266815
ApprovalCE, UKCA, cULus Listed, EAC (Eurasian)
Operating systemWindows 10 IOT
LifecycleEnd of life (Pilz is phasing this product out)

Electrical data

Supply voltage (V)12 … 30 V
Type of supply voltage U1DC
Power consumption DC38.5 W

Display

Display typeTFT
Display diagonal15.6 Zoll
Display resolution1920 x 1080
Display colour depth16.7 M
Type of touchscreencapacitive

CPU

Processor typeX86
Processor clock speed2.0 GHz
RAM4 GB
Real-time clock presentYes

USB interface

Number of USB host interfaces1 x USB 3.0, 2 x USB 2.0

Ethernet interface

Connector type ETHERNET int.RJ45
Ethernet transmission rate1 Gbit/s
Number of Ethernet interfaces2

VGA interfaces

External VGA interface1 x HDMI, 1 x VGA

Environmental data

Ambient temperature0 … 50 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating0... 90% at 39°C(non-condens.)
Condensation permitted?Not permitted
EMC to standard ...EN 61000-6-2, EN 61000-6-4
Vibration to standard ...EN 60068-2-6
Acc. shock to standard115g
Protection type standardEN 60529
Protection type, housingIP20

Mechanical data

Height dimension260 mm
Width dimension399 mm
Depth dimension75.1 mm
Net weight5803 g
Gross weight7883 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.7a, 6a, 6c, 7c I
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead
%-part of the pollutant> 0,1
CAS No.7439-92-1, 65997-18-4
SCIP entry availableyes
WEEE classification (08/2018)2 device/monitor > 100 cm²

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27330201
ETIM VersionETIM-9.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC001412
UNSPSC 2546171620
GTIN4046548096859
Volume69.474 dm3
Harmonized System Code84715000
Quantity per packaging unit1

266815: frequently asked questions

Can I still buy the 266815 now that it is discontinued?

Yes. Pilz has discontinued the 266815, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 266815 be shipped?

266815 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 266815 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 266815 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 266815, subject to availability and destination.
