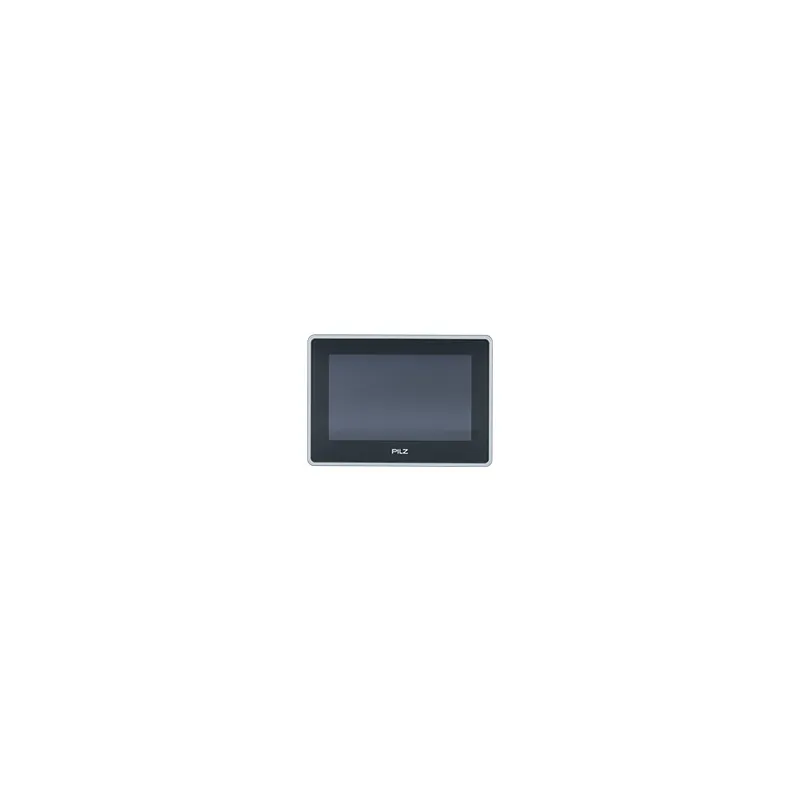

Pilz 266707

PMI v707e

MPN: 266707
EAN: 4046548083347
Category: PMIvisu

Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 266707 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pilz parts? We buy surplus →

What is the Pilz 266707?

PMIvisu, diagnostic and operating terminal, 7", resolution 800 x 600 pixel, capacitive touchscreen, TFT, RAM 512 MB, Flash 2 GB, 1 RJ45 port 100 MBit/s, 1 USB host 2.0, capacitor-buffered real-time clock, 24 V DC, 6 W, economy version, OS Linux, PASvisu runtime installed and licensed, preinstalled software: Pilz visualisation software.

Specifications

General data

Product ID (Pilz order number)	266707
Approval	CE, UKCA, cULus Listed, EAC (Eurasian)
Operating system	Linux
Lifecycle	End of life (Pilz is phasing this product out)

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	DC
Power consumption DC	3 W

Display

Display type	TFT
Display diagonal	7 Zoll
Display resolution	800 x 480
Display colour depth	262144
Type of touchscreen	capacitive

CPU

Processor clock speed	800 MHz
RAM	512 MB
Real-time clock present	Yes

USB interface

Number of USB host interfaces	1
Type of USB host interface	USB 2.0 Type A

Ethernet interface

Ethernet transmission rate

100 MBit/s

Environmental data

Ambient temperature standard	EN 60068-2-14
Ambient temperature	0 … 50 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	90 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 61000-6-2, EN 61000-4-4, EN 61000-4-5, EN 61000-6-4, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Protection type standard	EN 60529
Protection type, housing	IP20
UL enclosure type	1,2,5

Mechanical data

Height dimension	142 mm
Width dimension	200 mm
Depth dimension	50.3 mm
Net weight	925 g
Gross weight	1155 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a, 7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead, Lead oxide
%-part of the pollutant	> 0,1 %
CAS No.	7439-92-1, 1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	2 device/monitor > 100 cm²

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27330201
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000024
ETIM Reference Feature	EC001412
UNSPSC 25	46171620
GTIN	4046548083347
Volume	4.741 dm3
Harmonized System Code	85371091
Quantity per packaging unit	1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (5)

266707: frequently asked questions

Can I still buy the 266707 now that it is discontinued?

Yes. Pilz has discontinued the 266707, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 266707 be shipped?

266707 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 266707 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 266707 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 266707, subject to availability and destination.
