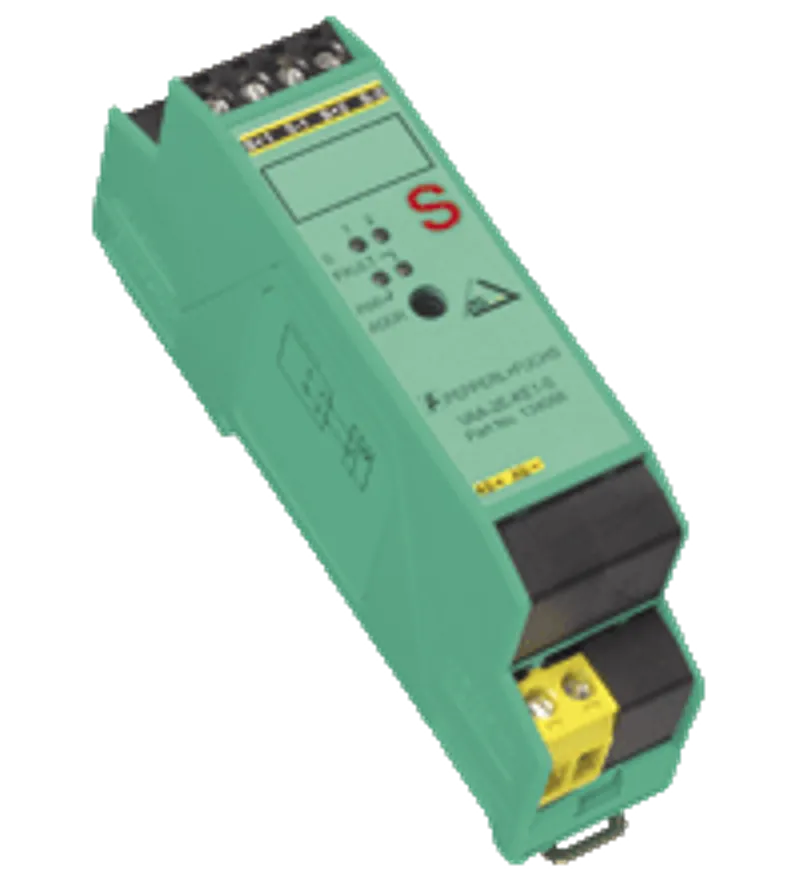

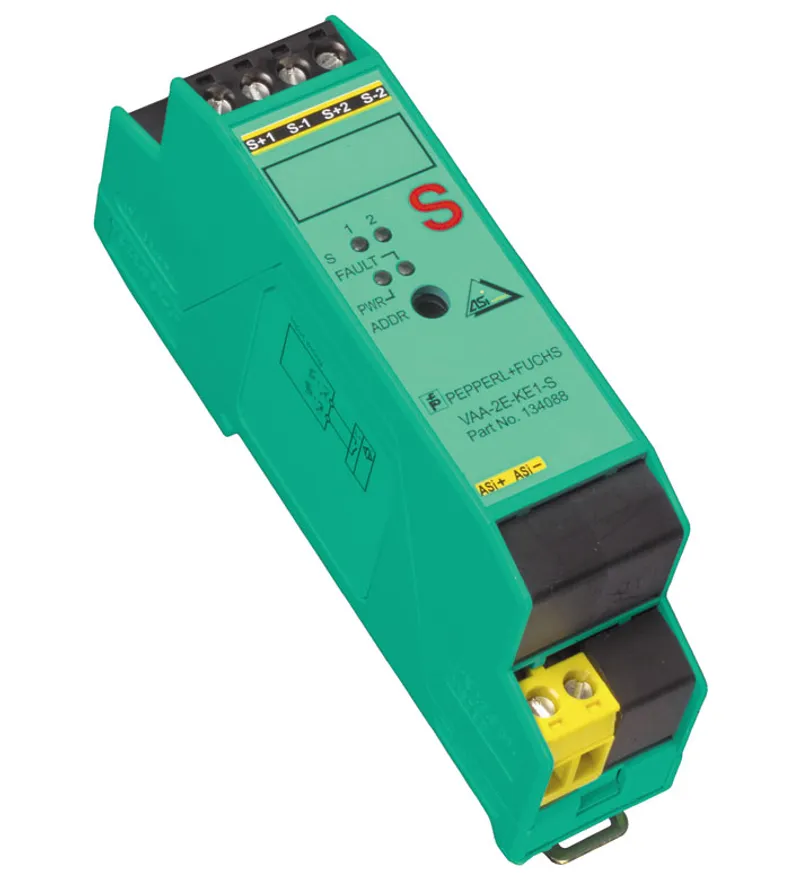

Pepperl Fuchs VAA-2E-KE1-S – AS-Interface safety module
MPN: VAA-2E-KE1-S · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Safety at Work |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VAA-2E-KE1-S be shipped?
VAA-2E-KE1-S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VAA-2E-KE1-S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VAA-2E-KE1-S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAA-2E-KE1-S, subject to availability and destination.
• 2 safe inputs for mechanical contacts such as EMERGENCY-STOP switch
• Housing with removable terminals
• Communication monitoring
• Power supply of inputs from the module
• Function display for bus and inputs
• Cross-circuit detection
• Addressing jack
• Applications up to Cat. 4, PL e/SIL 3
KE1 safety module for the control cabinet, 2 Safety-related inputs
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 134088 |
| Node type | Safety node |
| AS-Interface specification | V2.11 |
| Required gateway specification | ≥ V2.0 |
| Profile | S-0.B |
| IO code | 0 |
| ID code | B |
| ID1 code | F |
| ID2 code | 0 |
| UL File Number | E87056 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| MTTFd | 200 a |
Indicators/operating means
| LED FAULT | error display; LED red red: communication error or address is 0 |
| LED PWR | AS-Interface voltage; LED green |
| LED IN | switching state (input); 2 LED yellow |
Electrical specifications
| Rated operating voltage | 26.5 ... 31.6 V PELV from AS-Interface Ue |
| Rated operating current | ≤ 70 mA Ie |
| Protection class | III |
Input
| Number/Type | 2 safety-related inputs for mechanical contacts, cross-circuit monitored: 2 single-channel contacts: up to category 2 / PL c according to EN ISO 13849-1 or 1 two-channel contact: up to category 4 / PL e according to EN ISO 13849-1 Cable length must not exceed 300 m per input. |
| Supply | from AS-Interface |
| Voltage | 20 ... 30 V DC pulsed |
| Current loading capacity | input current limited ≤ 15 mA,overload and short-circuit resistant |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 62026-2:2013+A1:2019 |
Standard conformity
| Insulation coordination | EN 50178:1998 |
| Electromagnetic compatibility | EN 61000-6-2, EN 61000-4-5 1 kV asymmetric, criterion B, EN 61000-6-4 |
| Degree of protection | EN 60529:2000 |
| Fieldbus standard | EN 62026-2:2013+A1:2019 |
| Electrical safety | EN 50178:1998 IEC 60204-1:2007 |
| Emitted interference | EN 61000-6-4:2001 |
| AS-Interface | EN 62026-2:2013 |
| Functional safety | Category 4 / PL e to EN ISO 13849-1:2023 SIL 3 according to IEC 62061:2021 und IEC 61508 Teil 1-7:2010 |
| Standards | NFPA 79:2002 |
Ambient conditions
| Ambient temperature | -25 ... 50 °C (-13 ... 122 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Shock and impact resistance | 10 g, 16 ms in 6 spatial directions 1000 shocks |
| Vibration resistance | 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | removable terminals, terminal connection ≤ 2.5 mm2 |
| Material: Housing | PA 66-FR |
| Mass | 80 g |

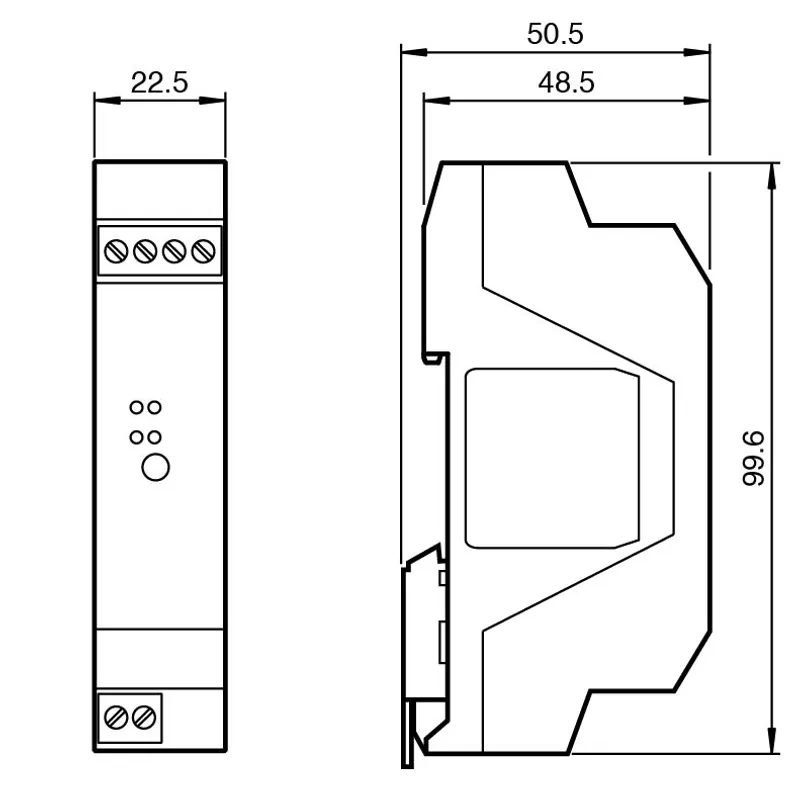

| Dimensions: Height | 99.6 mm |
| Dimensions: Width | 22.5 mm |
| Dimensions: Length | 48.5 mm |
| Mounting | DIN mounting rail |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet VAA-2E-KE1-S | |
| Instruction Manual | PDF · 159 kB |
| Brief Instructions | PDF · 870 kB |
CAD & dimension drawings
| 3-D model (STEP) VBA-4E2A-KE1-Z/E2 | STP · 324 kB |
| EPLAN macro VAA-2E-KE1-S | EDZ · 36 kB |
Certificates (3)
| Canada, USA UL (CoC 20141115-E223772) | PDF · 349 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 201 kB |
| AS-Interface (61701) | PDF · 90 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts

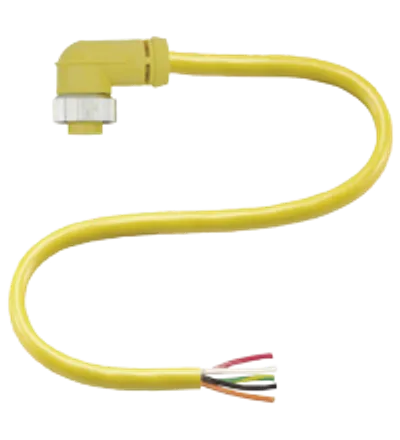

Available on requestFemale connector V95-W-YE4M-STOOWMPN: V95-W-YE4M-STOOW · Pepperl Fuchs
Price on request
Request a quote

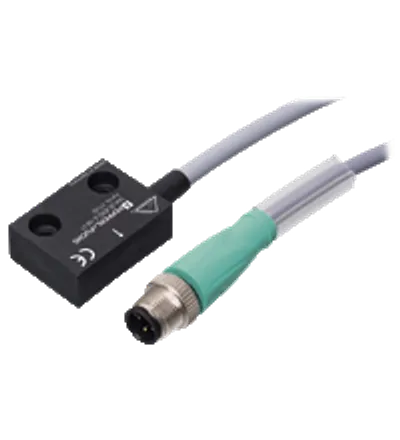

Available on requestRead head and evaluation unit VAA-2E-IER2-S-0,15M-V1MPN: VAA-2E-IER2-S-0,15M-V1 · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestRead head and evaluation unit VAA-2E-IER2-S-1M-V1MPN: VAA-2E-IER2-S-1M-V1 · Pepperl Fuchs
Price on request
Request a quote

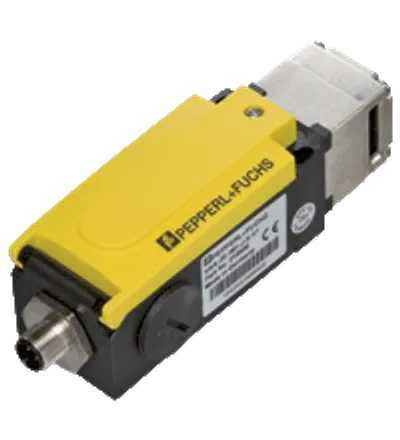

Available on requestAS-Interface safety switch VAA-2E-IM1-J-S-V1MPN: VAA-2E-IM1-J-S-V1 · Pepperl Fuchs
Price on request
Request a quote

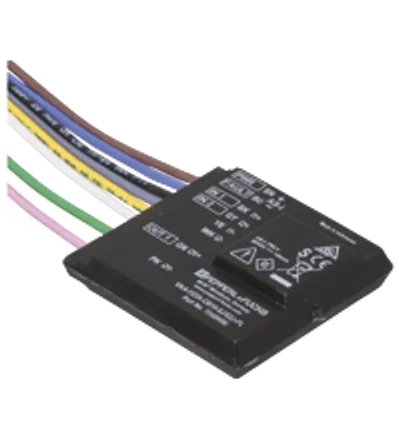

Available on requestAS-Interface safety module VAA-2E1A-CB10-SJ/E2J-FLMPN: VAA-2E1A-CB10-SJ/E2J-FL · Pepperl Fuchs
Price on request
Request a quote
Available on requestAS-Interface EMERGENCY STOP button VAA-2E1A-F85A/CB10-S-V1MPN: VAA-2E1A-F85A/CB10-S-V1 · Pepperl Fuchs
Price on request
Request a quote

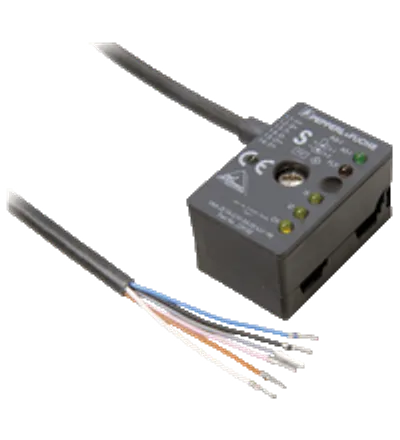

Available on requestAS-Interface safety module VAA-2E1A-G10-SAJ/EA2J-1MMPN: VAA-2E1A-G10-SAJ/EA2J-1M · Pepperl Fuchs
Price on request
Request a quote

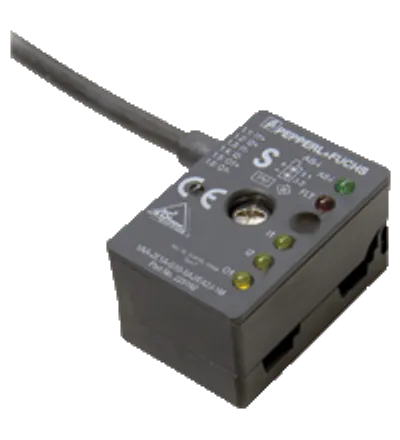

Available on requestAS-Interface safety module VAA-2E1A-G10-SAJ/EA2J-2M-V1-GMPN: VAA-2E1A-G10-SAJ/EA2J-2M-V1-G · Pepperl Fuchs
