Pepperl Fuchs V31-GM-OR0,6M-POC-V1-G – Connection cable
MPN: V31-GM-OR0,6M-POC-V1-G · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V31-GM-OR0,6M-POC-V1-G be shipped?
V31-GM-OR0,6M-POC-V1-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V31-GM-OR0,6M-POC-V1-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V31-GM-OR0,6M-POC-V1-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V31-GM-OR0,6M-POC-V1-G, subject to availability and destination.
• Welding-bead resistant
• Suitable for robotic applications / torsion resistant
• Degree of protection IP66 / IP68
• Free of paint wetting interfering substances
• Ozone resistant
• Hydrolysis resistant
• Oil resistant
• Halogen-free
• Specific design protects against loosening and inaccurate installation

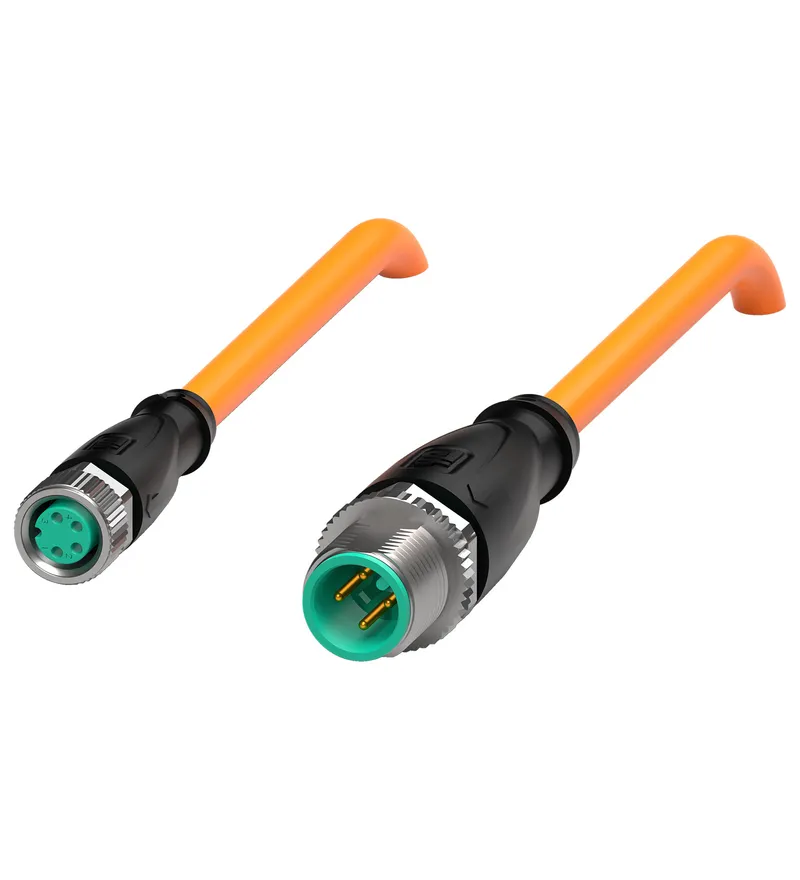

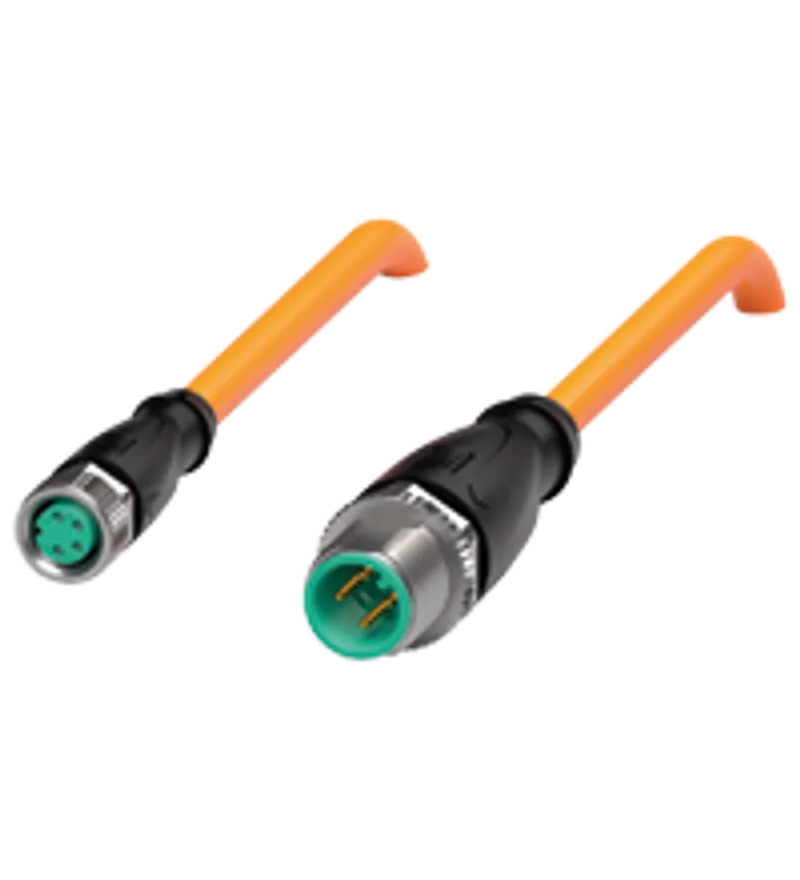

Cordset M8 socket angled to M12 plug straight A-coded, 4-pin, POC cable welding-bead resistant orange, suitable for robotic applications, torsion resistant, oil resistant, molecularly cross-linked
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 317165 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M8 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 4 |
| Connector 2: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V AC/DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 connector M8 x 1 : IEC 61076-2-104 |
| Flammability | IEC 60332-1-2 , ISO 14572 , ISO 6722 |
| Halogen-free | IEC 60754-2 |
| Lead-free | RoHS directive 2011/65/EU |
| Hydrolysis resistance | ISO 6722 |
| Oil resistance | ISO 14572 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 120 °C (-40 ... 248 °F) for 20000 h-40 ... 150 °C (-40 ... 302 °F) for 3000 h |
| Ambient temperature: Cable, flexing | -15 ... 120 °C (5 ... 248 °F) for 20000 h-15 ... 150 °C (5 ... 302 °F) for 3000 h |
| Pollution degree | 3 |
Mechanical specifications
| Connector 1: Tightening torque | 0.4 Nm |
| Connector 1: Loosening protection | integrated |
| Connector 1: Tool installation | straight knurling and hexagon nut SW = 9 mm |
| Connector 1: Mating cycles | min. 100 |
| Connector 1: Degree of protection | IP66 / IP68 |
| Connector 2: Tightening torque | 0.6 Nm |
| Connector 2: Loosening protection | integrated |
| Connector 2: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Connector 2: Mating cycles | min. 100 |
| Connector 2: Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.8 mm |
| Bending radius | > 10 x cable diameter, movable installation > 10 x cable diameter, fixed installation |
| Sheath stripping force | max. 50 N / 300 mm |
| Sheath color | orange (similar to RAL 2003) |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
| Core construction | 19 x 0.16 mm ∅ |
| Length | 0.6 m L |
| Cable code | Li 7Y 41X 4 x 0,34 |
| Drag chain suitability: Torsion cycles | min. 300000 |
| Drag chain suitability: Torsional stress | ± 360 °/ 30 cm |
| Mass | 24.06 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Lead-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | POC |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | ETFE |
| Cable: Welding-bead resistance | yes |
| Cable: Weld spatter resistance | yes |
| Cable: Oil resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | flame-resistant |
| Cable: Molecularly cross-linked | yes |
General information
| Cable marking sleeve | 2x PUR transparent , fixed to cable |
