Pepperl Fuchs V31-GM-1,5M-PUR-ABG – Cable socket, shielded
MPN: V31-GM-1,5M-PUR-ABG · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V31-GM-1,5M-PUR-ABG be shipped?
V31-GM-1,5M-PUR-ABG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V31-GM-1,5M-PUR-ABG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V31-GM-1,5M-PUR-ABG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V31-GM-1,5M-PUR-ABG, subject to availability and destination.
• Degree of protection IP66 / IP68
• Halogen-free
• Shield connected to screw connection
• Specific design protects against loosening and inaccurate installation

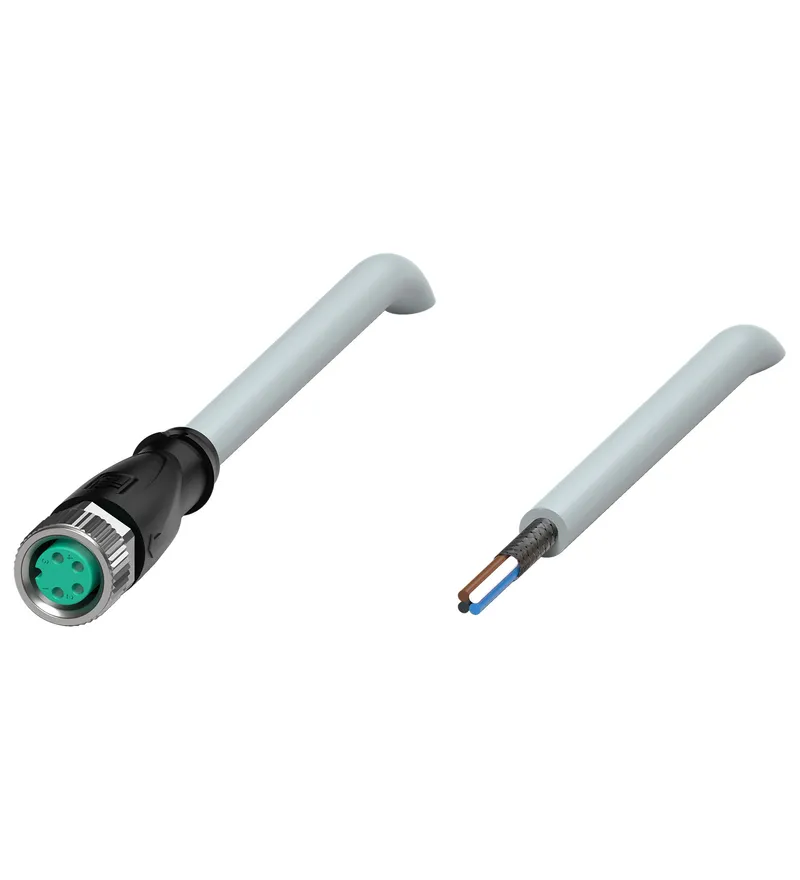

Female cordset single-ended M8 straight A-coded, 4-pin, PUR cable grey, shielded
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 240803-0004 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M8 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V AC/DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 |
| Halogen-free | DIN VDE 0472-815 DIN EN 50267-2-1 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.4 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 9 mm |
| Plug connector: Mating cycles | min. 100 |
| Plug connector: Shielding | shield connected to screw connection |
| Degree of protection | IP66 / IP68 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.8 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 100 N / 300 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
| Core construction | 19 x 0.15 mm ∅ |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 1.5 m L |
| Cable code | Li 9Y 11YM 4 x 0.34 |
| Mass | 61.06 g |
Material
| Halogen-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Chemical resistance | good |
General information
| Cable marking sleeve | 1x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V31-GM-1,5M-PUR-ABG |
CAD & dimension drawings
| 3-D model (STEP) V31-GM-BK10M-PUR-U/ABG | STP · 6.1 MB |
Certificates (2)
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 223 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 293 kB |
