Pepperl Fuchs V3-GM-BK3M-PUR-U-V11-G – Connection cable
MPN: V3-GM-BK3M-PUR-U-V11-G · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V3-GM-BK3M-PUR-U-V11-G be shipped?
V3-GM-BK3M-PUR-U-V11-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V3-GM-BK3M-PUR-U-V11-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V3-GM-BK3M-PUR-U-V11-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V3-GM-BK3M-PUR-U-V11-G, subject to availability and destination.
• Suitable for drag chains and abrasion resistant
• Suitable for robotic applications / torsion resistant
• Degree of protection IP66 / IP68
• Free of paint wetting interfering substances
• Resistant to microbes and hydrolysis
• UV resistant
• UL listed for USA and Canada
• Halogen-free
• Specific design protects against loosening and inaccurate installation

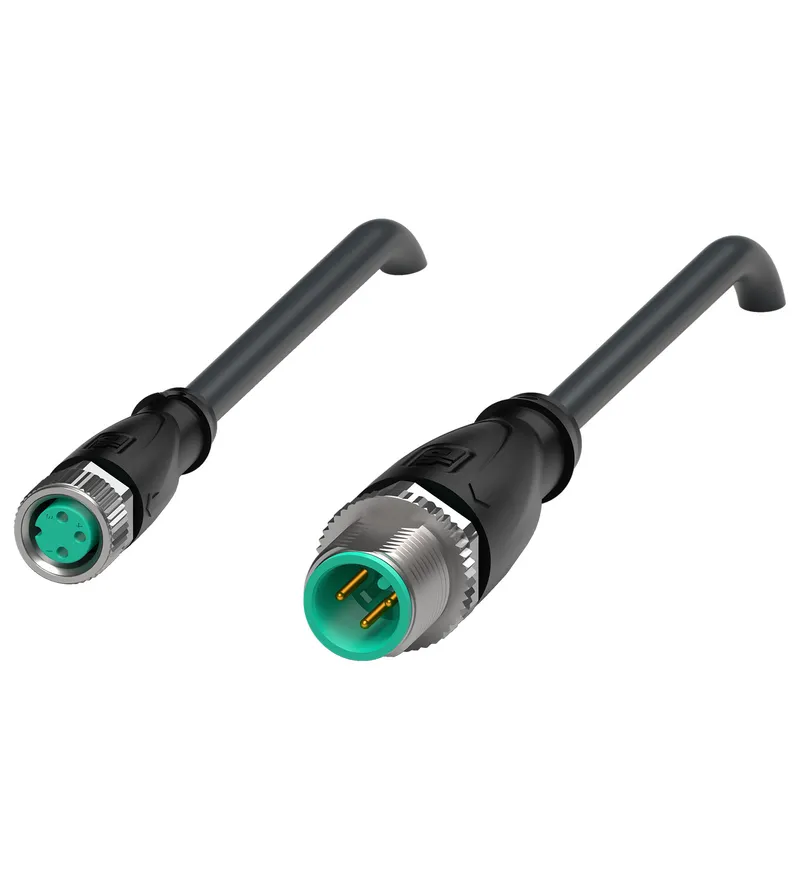

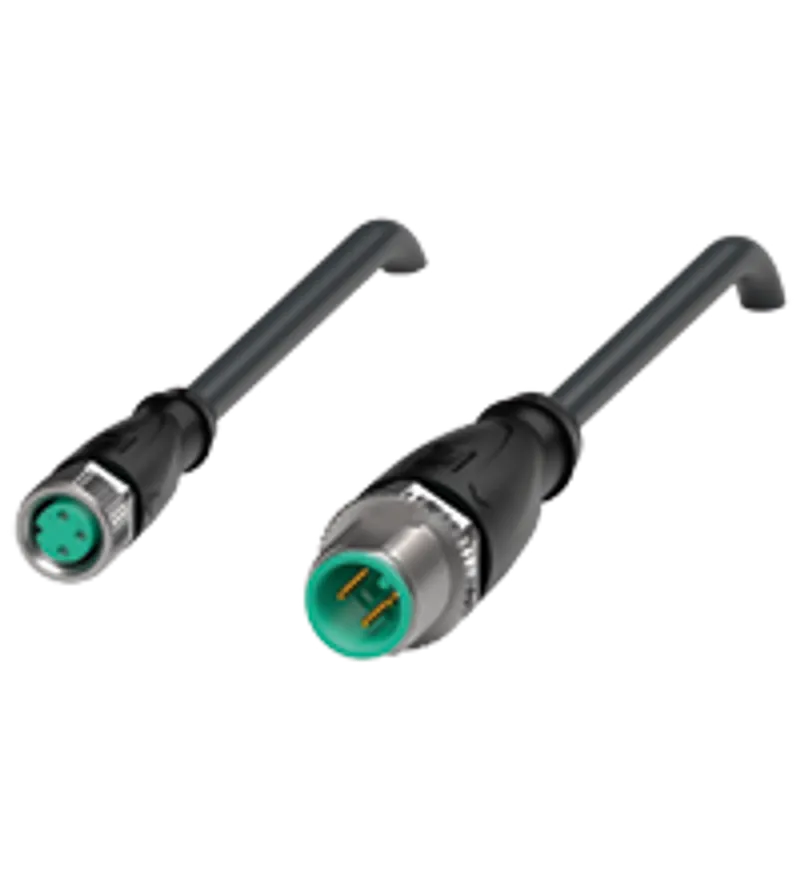

Cordset M8 socket straight to M12 plug straight A-coded, 3-pin, PUR cable black, UL approved, drag chain suitable, torsion resistant
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 456707 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M8 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 3 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 3 |
| Connector 2: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 1581; DIN EN 60332-2-2 |
| Halogen-free | IEC 60754-1 |
| Lead-free | RoHS directive 2011/65/EU |
Approvals and certificates
| UL approval | AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) |
| Maximum permissible operating current | max. 3 A |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -20 ... 80 °C (-4 ... 176 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Connector 1: Tightening torque | 0.4 Nm |
| Connector 1: Loosening protection | integrated |
| Connector 1: Tool installation | straight knurling and hexagon nut SW = 9 mm |
| Connector 1: Mating cycles | min. 100 |
| Connector 1: Degree of protection | IP66 / IP68 |
| Connector 2: Tightening torque | 0.6 Nm |
| Connector 2: Loosening protection | integrated |
| Connector 2: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Connector 2: Mating cycles | min. 100 |
| Connector 2: Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 4.3 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | black (similar to RAL 9005) |
| Number of cores | 3 |
| Core cross section | 0.34 mm2 |

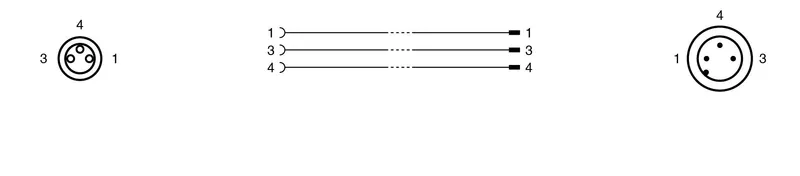

| Cores color | Core 1: brown Core 3: blue Core 4: black |
| Core construction | 42 x 0.1 mm ∅ |
| Length | 3 m L |
| Cable code | Li F 9Y 11Y 3 x 0,34 |
| Drag chain suitability: Test temperature | 25 °C (77 °F) |
| Drag chain suitability: Drag chain cycles | min. 10000000 |
| Drag chain suitability: Motion velocity | max. 3 m/s |
| Drag chain suitability: Traverse distance | max. 5 m |
| Drag chain suitability: Acceleration | max. 5 m/s2 |
| Drag chain suitability: Torsion cycles | min. 1000000 |
| Drag chain suitability: Torsional stress | ± 180 °/m |
| Mass | 88.39 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Lead-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: UV resistance | yes |
| Cable: Chemical resistance | good |
| Cable: Oil resistance | yes |
| Cable: Cooling lubricant resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | FT2 |
General information
| Cable marking sleeve | 2x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V3-GM-BK3M-PUR-U-V11-G |
CAD & dimension drawings
| 3-D model (STEP) V3-GM-BK0,3M-PUR-U-V11-G | STP · 9.4 MB |
Certificates (3)
| Canada, USA UL (CoC E231213) | PDF · 428 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 293 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 217 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts

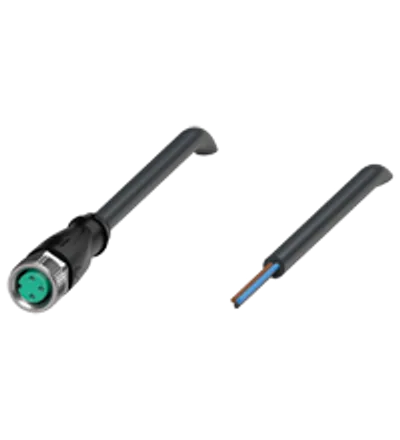

Available on requestFemale cordset V3-GM-BK30M-PUR-UMPN: V3-GM-BK30M-PUR-U · Pepperl Fuchs
Price on request
Request a quote

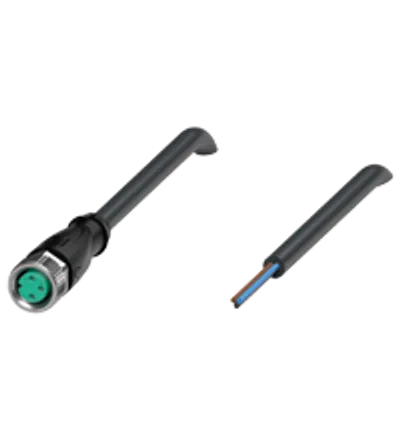

Available on requestFemale cordset V3-GM-BK30M-PVC-UMPN: V3-GM-BK30M-PVC-U · Pepperl Fuchs
Price on request
Request a quote

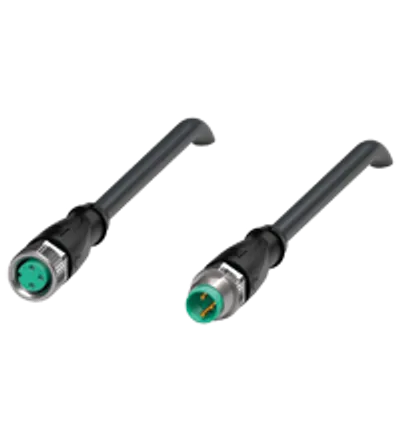

Available on requestConnection cable V3-GM-BK3,5M-PUR-U-V3-GMMPN: V3-GM-BK3,5M-PUR-U-V3-GM · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestFemale cordset V3-GM-BK3M-PUR-UMPN: V3-GM-BK3M-PUR-U · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestConnection cable V3-GM-BK3M-PUR-U-V3-GMMPN: V3-GM-BK3M-PUR-U-V3-GM · Pepperl Fuchs
Price on request
Request a quote

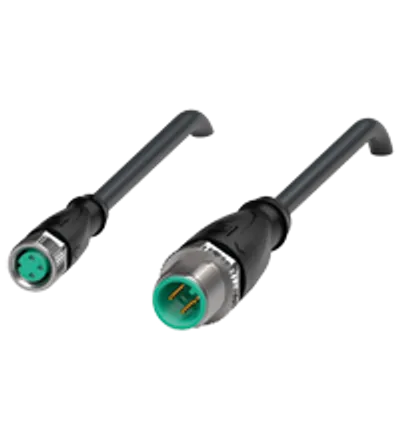

Available on requestConnection cable V3-GM-BK3M-PVC-U-V11-GMPN: V3-GM-BK3M-PVC-U-V11-G · Pepperl Fuchs
