Pepperl Fuchs V19SY-G-BK2M-PUR-ABG
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Data Connectors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V19SY-G-BK2M-PUR-ABG be shipped?
V19SY-G-BK2M-PUR-ABG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V19SY-G-BK2M-PUR-ABG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V19SY-G-BK2M-PUR-ABG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V19SY-G-BK2M-PUR-ABG, subject to availability and destination.

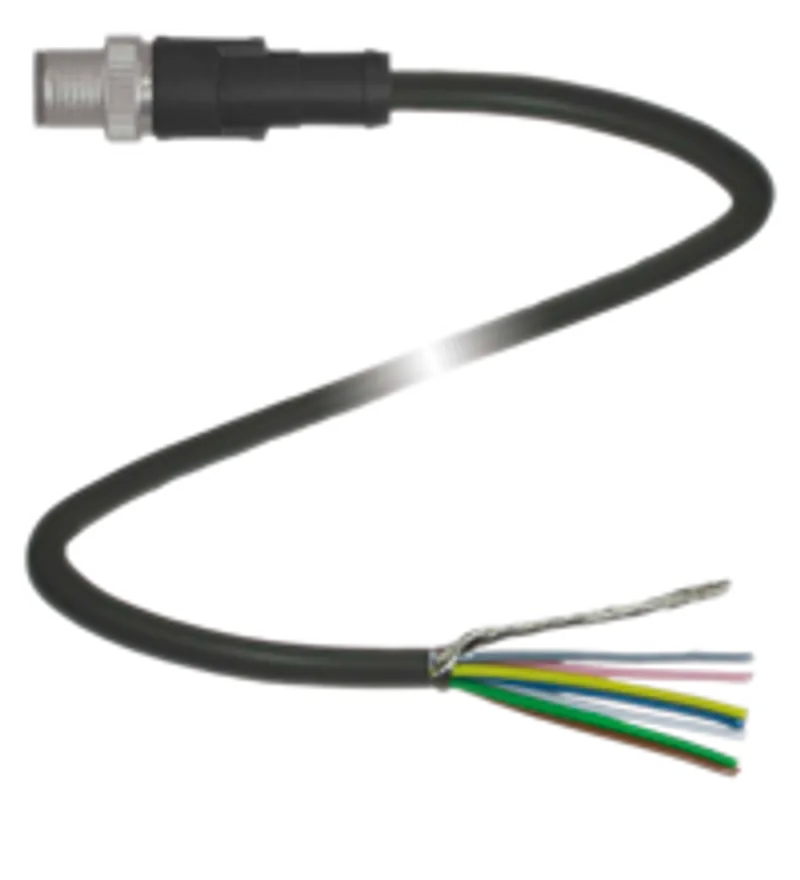

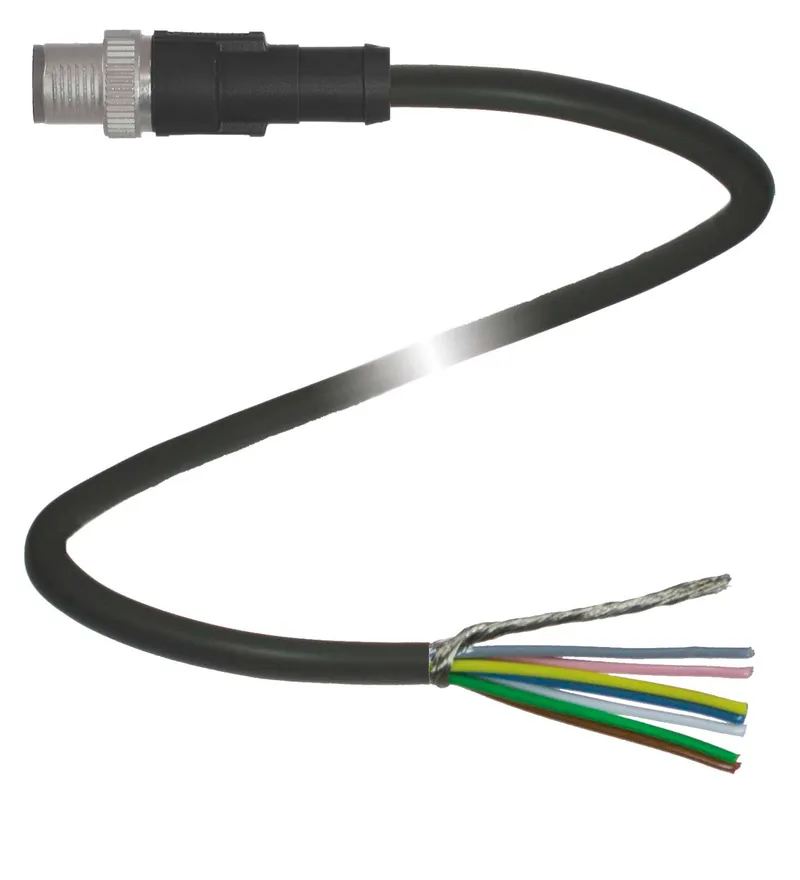

Cable connector, Ethernet. Ethernet bus cable male cordset single-ended M12 straight Y-coded 8-pin, PUR cable black, Cat5e, shielded, drag chain suitable. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingY-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: Y-coded. Connector 2: . Connectioncable end: . Connection: cable end. Rated voltage: 30 V DC. Rated current: 6 A (power supply)0.5 A (data). Volume resistance: max. 5 mΩ. Degree of protection: EN 60529. Fieldbus standard: Hybrid Ethernet. Plug connection: connector M12 x 1 : IEC 61076-2-113. Component category: CAT5 (IEC 11801) , CAT5e (TIA 568B). Flammability: UL 1581 ; UL 2556. Halogen-free: DIN VDE 0472-815 / IEC 60754-1. Hydrolysis resistance: EN 50396. Oil resistance: DIN EN 60811-2-1 / DIN VDE 0282-10. Ambient temperature: . Plug connector-25 ... 90 °C (-13 ... 194 °F)Cable, fixed installation-40 ... 90 °C (-40 ... 194 °F)Cable, flexing-30 ... 70 °C (-22 ... 158 °F): . Plug connector: -25 ... 90 °C (-13 ... 194 °F). Cable, fixed installation: -40 ... 90 °C (-40 ... 194 °F). Cable, flexing: -30 ... 70 °C (-22 ... 158 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmLoosening protectionintegratedTool installationstraight knurlingMating cyclesmin. 100Shieldingshield connected to screw connection: . Tightening torque: 0.4 Nm. Loosening protection: integrated. Tool installation: straight knurling. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP65 / IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter8.8 mmBending radius> 8 x cable diameter, movable installation > 4 x cable diameter, fixed installationSheath colorblack (similar to RAL 9005)Number of cores8Core cross section4 x 0.15 mm² (data)4 x 0.85 mm² (power supply)Cores colorCore 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: blue Core 6: white Core 7: brown Core 8: blackCore construction19 x 0.1 mm (Data)19 x 0.2 mm (Power supply)Shieldtinned copper braiding, 85 % coverageLengthL2 mCable code94H: . Sheath diameter: 8.8 mm. Bending radius: > 8 x cable diameter, movable installation > 4 x cable diameter, fixed installation. Sheath color: black (similar to RAL 9005). Number of cores: 8. Core cross section: 4 x 0.15 mm² (data)4 x 0.85 mm² (power supply). Cores color: Core 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: blue Core 6: white Core 7: brown Core 8: black. Core construction: 19 x 0.1 mm (Data)19 x 0.2 mm (Power supply). Shield: tinned copper braiding, 85 % coverage. Length: 2 m. Cable code: 94H. Drag chain suitability: . Drag chain cyclesmin. 2000000Motion velocitymax. 3 m/sTraverse distance4.5 mAccelerationmax. 3 m/s2: . Drag chain cycles: min. 2000000. Motion velocity: max. 3 m/s. Traverse distance: 4.5 m. Acceleration: max. 3 m/s2. Mass: 261 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceNi/AuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: Ni/Au. Flammability: V-2. Cable: . SheathingPURCoresbare copper (Cu)Core insulationPPOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT1: . Sheathing: PUR. Cores: bare copper (Cu). Core insulation: PP. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT1
Specifications
General specifications
| Connector 1 | |
| ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingY-coded | Connection |
| Connection | plug |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 8 |
| Coding | Y-coded |
| Connector 2 | |
| Connectioncable end | Connection |
| Connection | cable end |
Electrical specifications
| Rated voltage | 30 V DC Ur |
| Rated current | 6 A (power supply)0.5 A (data) Ir |
| Volume resistance | max. 5 mΩ |
Conformity
| Degree of protection | EN 60529 |
| Fieldbus standard | Hybrid Ethernet |
| Plug connection | connector M12 x 1 : IEC 61076-2-113 |
| Component category | CAT5 (IEC 11801) , CAT5e (TIA 568B) |
| Flammability | UL 1581 ; UL 2556 |
| Halogen-free | DIN VDE 0472-815 / IEC 60754-1 |
| Hydrolysis resistance | EN 50396 |
| Oil resistance | DIN EN 60811-2-1 / DIN VDE 0282-10 |
Ambient conditions
| Ambient temperature | |
| Plug connector-25 ... 90 °C (-13 ... 194 °F)Cable, fixed installation-40 ... 90 °C (-40 ... 194 °F)Cable, flexing-30 ... 70 °C (-22 ... 158 °F) | Plug connector |
| Plug connector | -25 ... 90 °C (-13 ... 194 °F) |
| Cable, fixed installation | -40 ... 90 °C (-40 ... 194 °F) |
| Cable, flexing | -30 ... 70 °C (-22 ... 158 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector | |
| Tightening torque0.4 NmLoosening protectionintegratedTool installationstraight knurlingMating cyclesmin. 100Shieldingshield connected to screw connection | Tightening torque |
| Tightening torque | 0.4 Nm |
| Loosening protection | integrated |
| Tool installation | straight knurling |
| Mating cycles | min. 100 |
| Shielding | shield connected to screw connection |
| Degree of protection | IP65 / IP67 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |

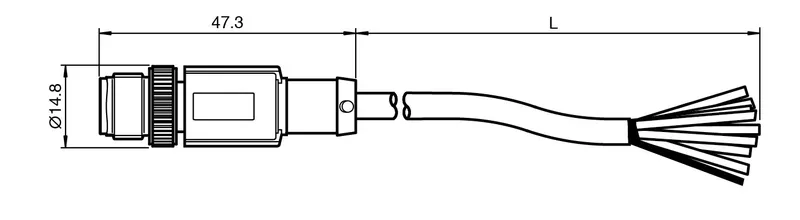

| Sheath diameter8.8 mmBending radius> 8 x cable diameter, movable installation > 4 x cable diameter, fixed installationSheath colorblack (similar to RAL 9005)Number of cores8Core cross section4 x 0.15 mm² (data)4 x 0.85 mm² (power supply)Cores colorCore 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: blue Core 6: white Core 7: brown Core 8: blackCore construction19 x 0.1 mm (Data)19 x 0.2 mm (Power supply)Shieldtinned copper braiding, 85 % coverageLengthL2 mCable code94H | Sheath diameter |
| Sheath diameter | 8.8 mm |
| Bending radius | > 8 x cable diameter, movable installation > 4 x cable diameter, fixed installation |
| Sheath color | black (similar to RAL 9005) |
| Number of cores | 8 |
| Core cross section | 4 x 0.15 mm² (data)4 x 0.85 mm² (power supply) |

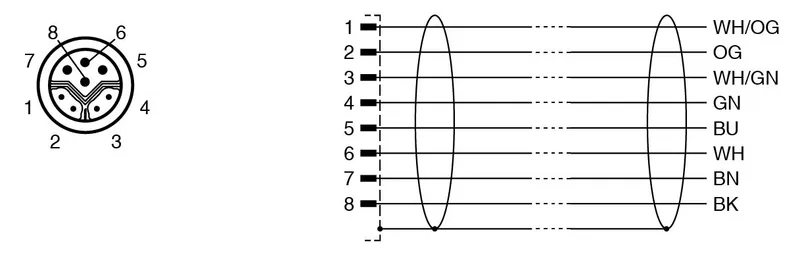

| Cores color | Core 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: blue Core 6: white Core 7: brown Core 8: black |
| Core construction | 19 x 0.1 mm (Data)19 x 0.2 mm (Power supply) |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 2 m L |
| Cable code | 94H |
| Drag chain suitability | |
| Drag chain cyclesmin. 2000000Motion velocitymax. 3 m/sTraverse distance4.5 mAccelerationmax. 3 m/s2 | Drag chain cycles |
| Drag chain cycles | min. 2000000 |
| Motion velocity | max. 3 m/s |
| Traverse distance | 4.5 m |
| Acceleration | max. 3 m/s2 |
| Mass | 261 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Plug connector | |
| Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceNi/AuFlammabilityV-2 | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | TPU, black |
| Contact surface | Ni/Au |
| Flammability | V-2 |
| Cable | |
| SheathingPURCoresbare copper (Cu)Core insulationPPOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT1 | Sheathing |
| Sheathing | PUR |
| Cores | bare copper (Cu) |
| Core insulation | PP |
| Oil resistance | yes |
| Microbial resistance | yes |
| Hydrolysis resistance | yes |
| Flammability | FT1 |
