Pepperl Fuchs V11-W-1,5M-PVC – Female cordset
MPN: V11-W-1,5M-PVC · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V11-W-1,5M-PVC be shipped?
V11-W-1,5M-PVC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V11-W-1,5M-PVC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V11-W-1,5M-PVC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V11-W-1,5M-PVC, subject to availability and destination.
• Degree of protection IP66 / IP68 / IP69
• Specific design protects against loosening and inaccurate installation

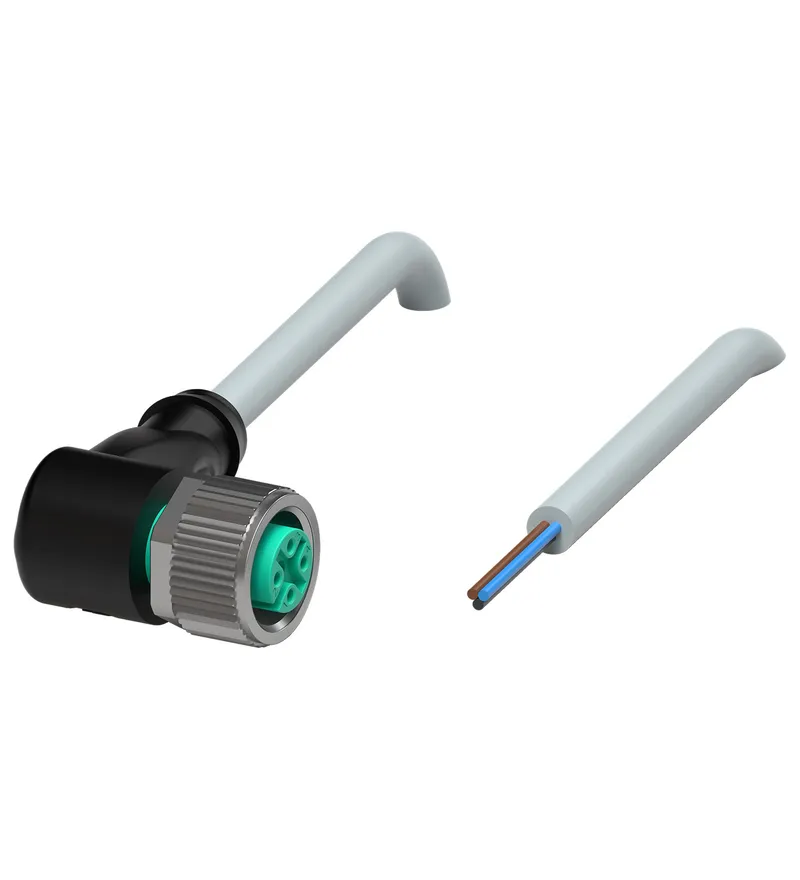

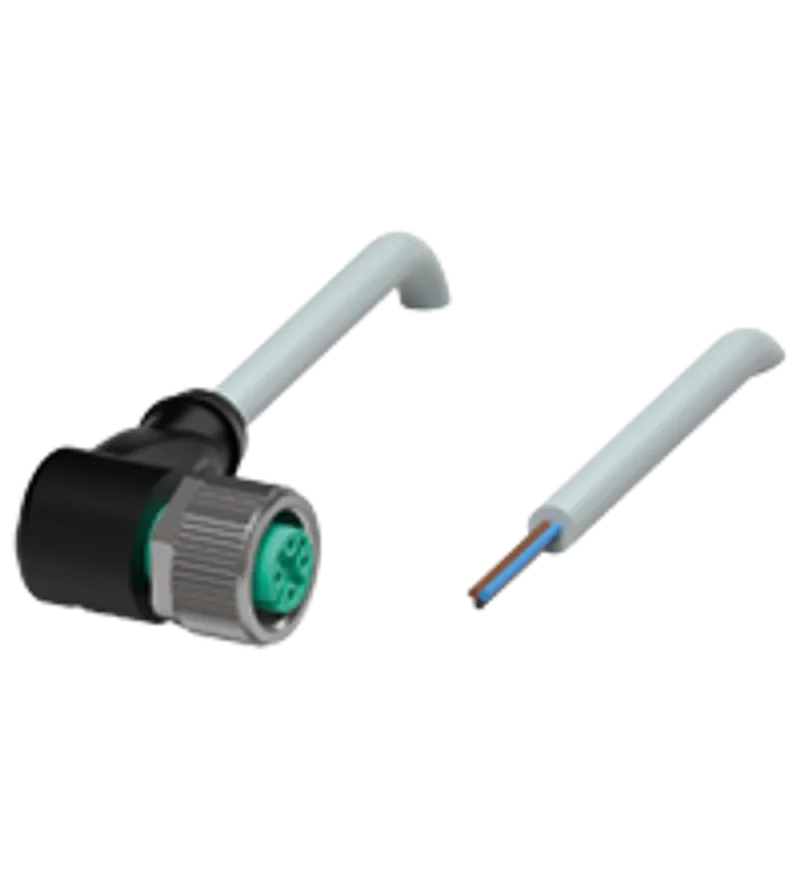

Female cordset single-ended M12 angled A-coded, 3-pin, PVC cable grey
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 239999-100005 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | angled |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 3 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 250 V AC/DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Lead-free | RoHS directive 2011/65/EU |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -25 ... 70 °C (-13 ... 158 °F) |
| Ambient temperature: Cable, flexing | -5 ... 70 °C (23 ... 158 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |

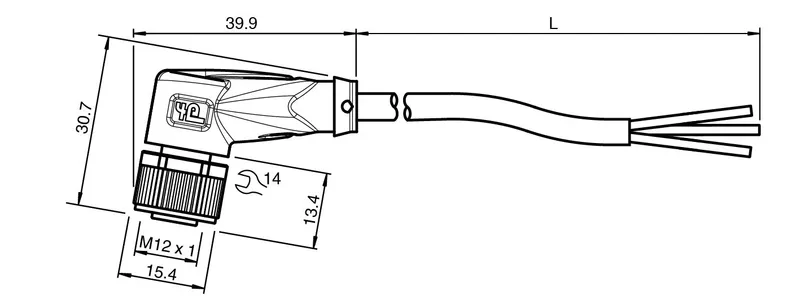

| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.8 mm |
| Bending radius | > 10 x cable diameter, movable installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 3 |
| Core cross section | 0.34 mm2 |

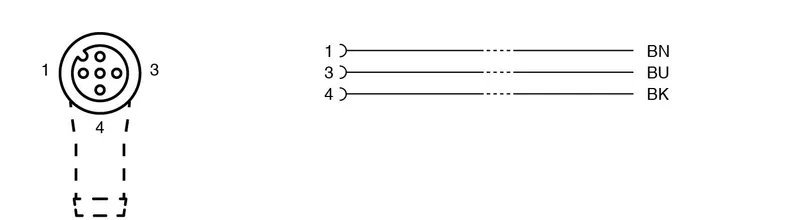

| Cores color | Core 1: brown Core 3: blue Core 4: black |
| Core construction | 19 x 0.15 mm ∅ |
| Length | 1.5 m L |
| Cable code | Li Y YM 3 x 0,34 |
| Mass | 61.3 g |
Material
| Lead-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PVC |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PVC |
| Cable: Flammability | flame-resistant |
General information
| Cable marking sleeve | 1x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V11-W-1,5M-PVC |
CAD & dimension drawings
| 3-D model (STEP) V11-W-30M-PVC | STP · 3.9 MB |
Certificates (2)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 291 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 221 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts

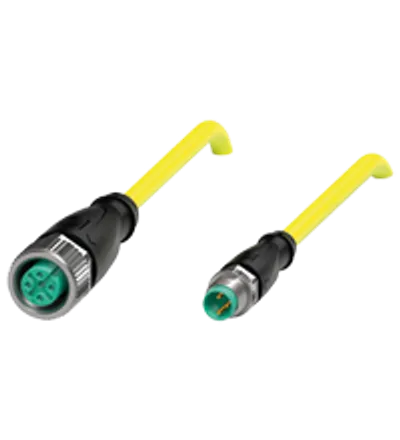

Available on requestConnection cable V11-G-YE5M-PVC-U-V3-GMMPN: V11-G-YE5M-PVC-U-V3-GM · Pepperl Fuchs
Price on request
Request a quote

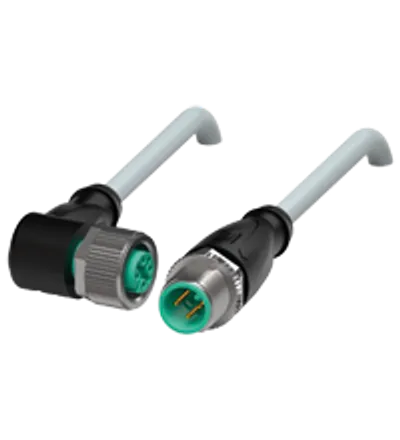

Available on requestConnection cable V11-W-0,3M-PUR-V11-GMPN: V11-W-0,3M-PUR-V11-G · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestConnection cable V11-W-0,6M-PUR-V11-GMPN: V11-W-0,6M-PUR-V11-G · Pepperl Fuchs
Price on request
Request a quote

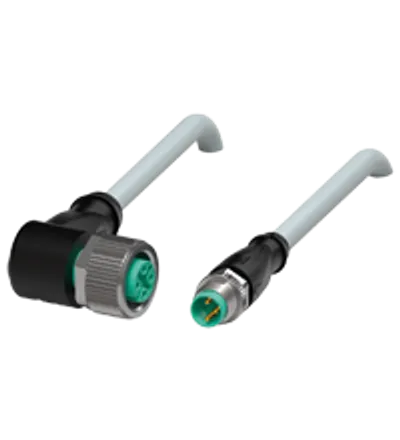

Available on requestConnection cable V11-W-0,6M-PUR-V3-GMMPN: V11-W-0,6M-PUR-V3-GM · Pepperl Fuchs
Price on request
Request a quote
Available on requestFemale cordset V11-W-10M-PURMPN: V11-W-10M-PUR · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestConnection cable V11-W-10M-PUR-V3-GMMPN: V11-W-10M-PUR-V3-GM · Pepperl Fuchs
Price on request
Request a quote

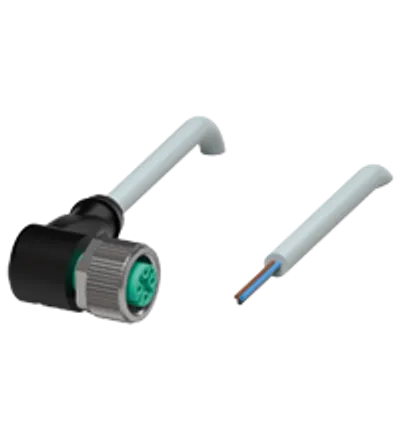

Available on requestFemale cordset V11-W-10M-PVCMPN: V11-W-10M-PVC · Pepperl Fuchs
