Pepperl Fuchs V11-G-OR3M-PUR-A1-V1-W-Y168822 – Connection cable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V11-G-OR3M-PUR-A1-V1-W-Y168822 be shipped?
V11-G-OR3M-PUR-A1-V1-W-Y168822 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V11-G-OR3M-PUR-A1-V1-W-Y168822 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V11-G-OR3M-PUR-A1-V1-W-Y168822 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V11-G-OR3M-PUR-A1-V1-W-Y168822, subject to availability and destination.
• Improved resistance to weld slag
• Suitable for drag chains and abrasion resistant
• Suitable for robotic applications / torsion resistant
• Degree of protection IP66 / IP68 / IP69
• Free of paint wetting interfering substances
• Resistant to microbes and hydrolysis
• UL listed for USA and Canada
• Halogen-free
• Specific design protects against loosening and inaccurate installation
• Customer-specific configuration

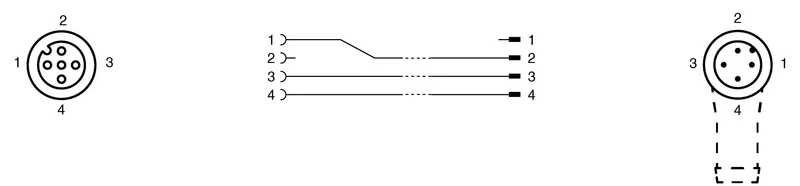

Cordset M12 socket straight to M12 plug angled A-coded, 4-pin, PUR cable welding-bead resistant orange, UL approved, drag chain suitable, torsion resistant
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70168822 |
| Customization | customer-specific pin assignment |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | angled |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 4 |
| Connector 2: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 250 V AC/DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 1581; DIN EN 60332-2-2 |
| PWIS conformity | VW-PV 3.10.7 |
| Halogen-free | DIN VDE 0472-815 |
| Oil resistance | DIN EN 60811-2-1 |
Approvals and certificates
| UL approval | AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 4.9 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | orange (similar to RAL 2003) |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1-2: brown Core 2: white not used Core 3-3: blue Core 4-4: black |
| Core construction | 42 x 0.1 mm ∅ |
| Length | 3 m L |
| Cable code | Li F 9Y 11Y 4 x 0,34 |
| Drag chain suitability: Drag chain cycles | min. 5000000 |
| Drag chain suitability: Motion velocity | max. 3 m/s |
| Drag chain suitability: Traverse distance | max. 5 m |
| Drag chain suitability: Acceleration | max. 5 m/s2 |
| Drag chain suitability: Torsion cycles | min. 1000000 |
| Drag chain suitability: Torsional stress | ± 180 °/m |
| Mass | 93.13 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Welding-bead resistance | yes |
| Cable: Weld spatter resistance | yes |
| Cable: Chemical resistance | good |
| Cable: Oil resistance | yes |
| Cable: Cooling lubricant resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | FT2 |
General information
| Cable marking sleeve | none |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V11-G-OR3M-PUR-A1-V1-W-Y168822 |
CAD & dimension drawings
| 3-D model (STEP) V1-G-OR2M-PUR-A1-V1-W | STP · 7.3 MB |
Certificates (3)
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 221 kB |
| Canada, USA UL (CoC E231213) | PDF · 428 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 291 kB |
