• Built-in LED, as operating and function indicator
• Suitable for drag chains and abrasion resistant
• Suitable for robotic applications / torsion resistant
• Degree of protection IP66 / IP68 / IP69
• Free of paint wetting interfering substances
• Resistant to microbes and hydrolysis
• UV resistant
• UL listed for USA and Canada
• Halogen-free
• Specific design protects against loosening and inaccurate installation

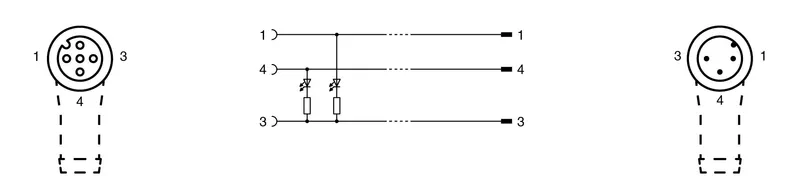

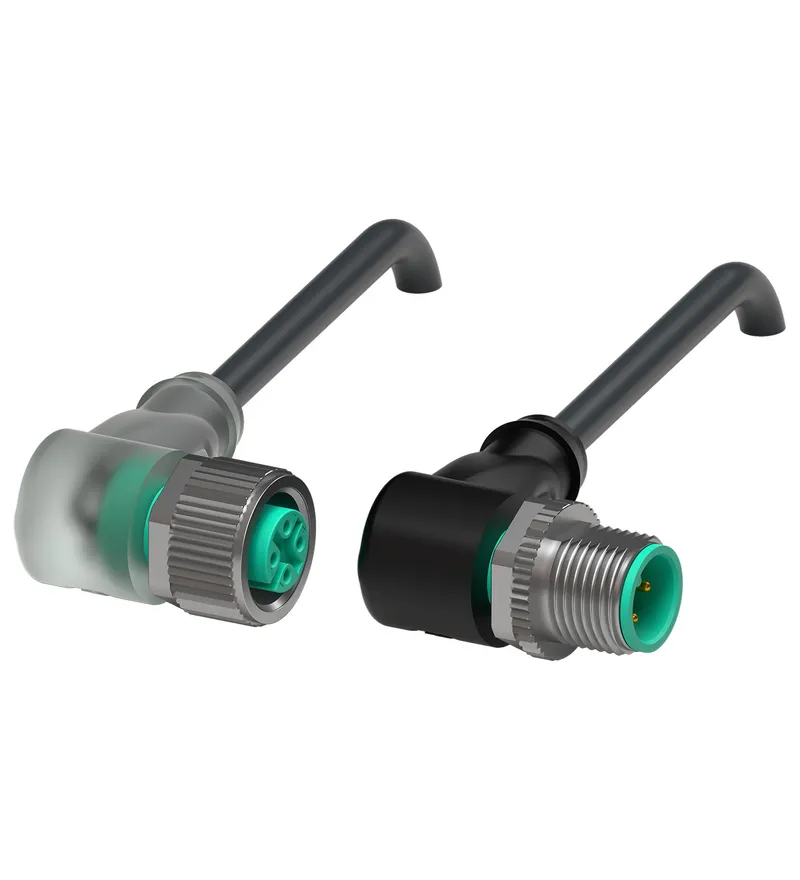

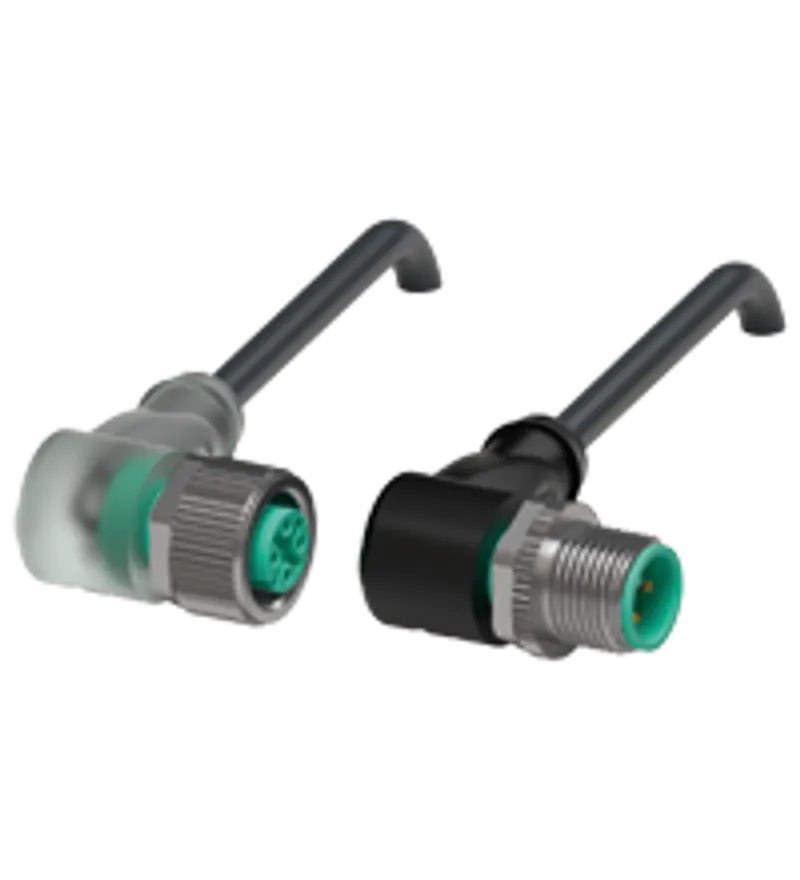

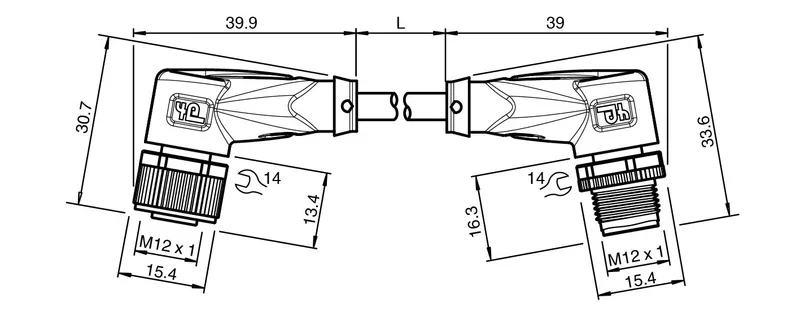

Cordset M12 socket angled A-coded LED 3-pin to M12 plug angled A-coded 3-pin, PUR cable black, UL approved, drag chain suitable, torsion resistant
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 240781-100004 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | angled |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 3 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | angled |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 3 |
| Connector 2: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green | Operating display |
| LED yellow | Functional display pin 4 |
Electrical specifications
| Operating voltage | max. 24 V DC -20 % / +25 % UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 1581; DIN EN 60332-2-2 |
| Halogen-free | IEC 60754-1 |
| Lead-free | RoHS directive 2011/65/EU |
Approvals and certificates
| UL approval | AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -20 ... 80 °C (-4 ... 176 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 4.3 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | black (similar to RAL 9005) |
| Number of cores | 3 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1: brown Core 3: blue Core 4: black |
| Core construction | 42 x 0.1 mm ∅ |
| Length | 5 m L |
| Cable code | Li F 9Y 11Y 3 x 0,34 |
| Drag chain suitability: Test temperature | 25 °C (77 °F) |
| Drag chain suitability: Drag chain cycles | min. 10000000 |
| Drag chain suitability: Motion velocity | max. 3 m/s |
| Drag chain suitability: Traverse distance | max. 5 m |
| Drag chain suitability: Acceleration | max. 5 m/s2 |
| Drag chain suitability: Torsion cycles | min. 1000000 |
| Drag chain suitability: Torsional stress | ± 180 °/m |
| Mass | 144.87 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Lead-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, transparent/black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: UV resistance | yes |
| Cable: Chemical resistance | good |
| Cable: Oil resistance | yes |
| Cable: Cooling lubricant resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | FT2 |
General information
| Cable marking sleeve | 2x PUR transparent , fixed to cable |
