Pepperl Fuchs V1-G-N-2M-PUR – Cable connector, NAMUR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1-G-N-2M-PUR be shipped?
V1-G-N-2M-PUR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1-G-N-2M-PUR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1-G-N-2M-PUR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1-G-N-2M-PUR, subject to availability and destination.
• Suitable for NAMUR technology
• Degree of protection IP66 / IP68 / IP69
• Suitable for routing intrinsically safe circuits in accordance with DIN EN 60079-14:2014
• Specific design protects against loosening and inaccurate installation

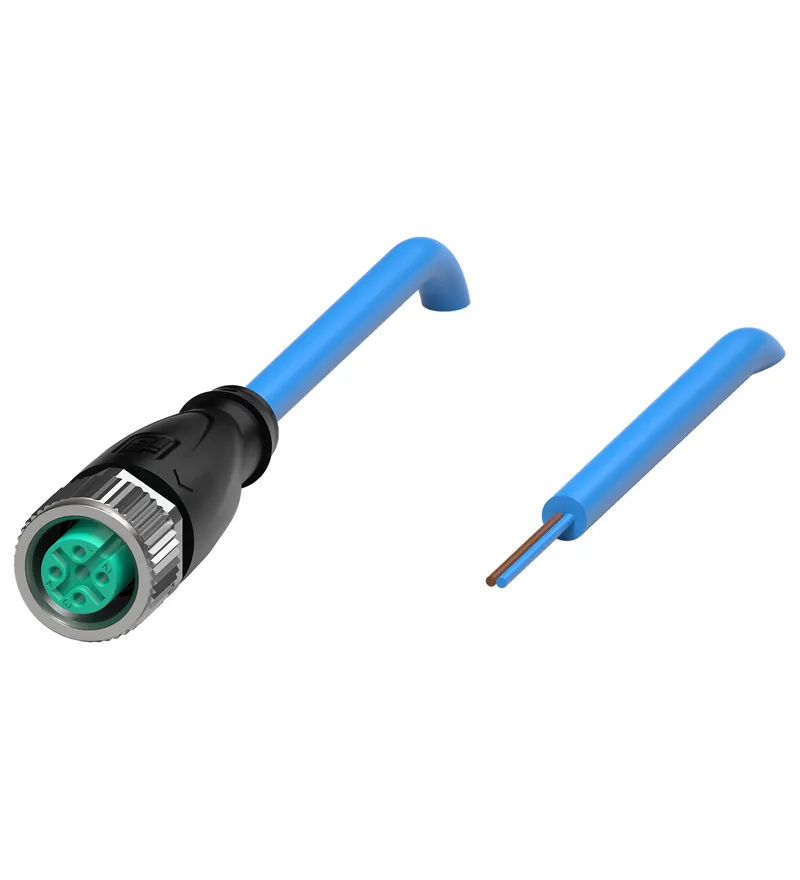

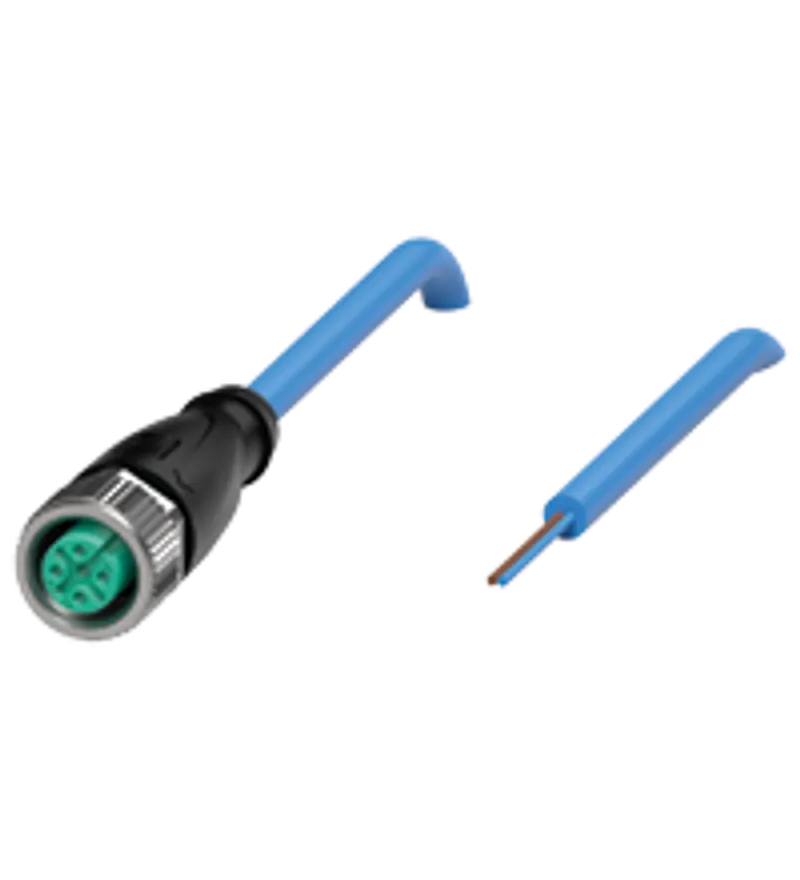

Female cordset single-ended M12 straight A-coded, 2-pin, PUR cable blue, NAMUR
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 109435 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 2 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 250 V AC/DC UB |
| Operating current | max. 4 A IB |
| Resistance per unit length | max. 0.057 Ω/m R' |
| Capacitance per unit length | 102.4 nF/km C' |
| Inductance per unit length | 0.49 mH/km L' |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Lead-free | RoHS directive 2011/65/EU |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -20 ... 80 °C (-4 ... 176 °F) |
| Pollution degree | 3 |

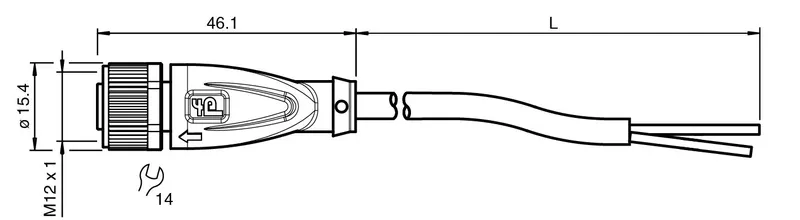

Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 4.8 mm |
| Bending radius | > 15 x cable diameter, movable installation > 10 x cable diameter, fixed installation |
| Sheath color | blue (similar to RAL 5015) |
| Number of cores | 2 |
| Core cross section | 0.34 mm2 |

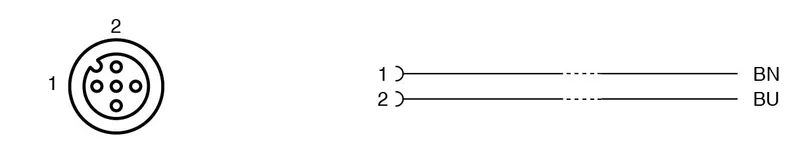

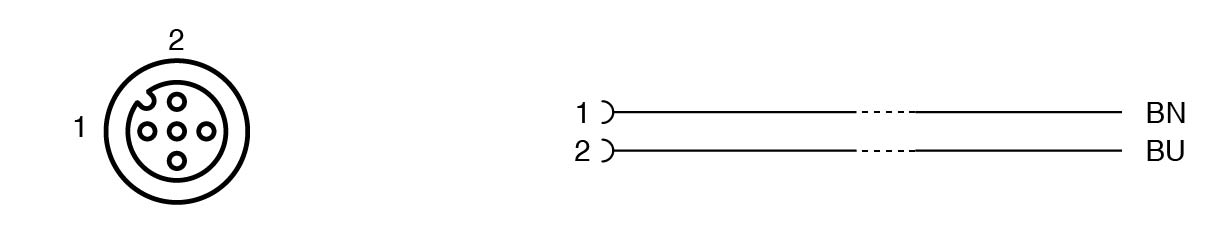

| Cores color | Core 1: brown Core 2: blue |
| Core construction | 42 x 0.1 mm ∅ |
| Length | 2 m L |
| Cable code | Li FY 11Y 2 x 0.34 |
| Mass | 59.8 g |
Material
| Lead-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PVC |
| Cable: Flammability | HB |
General information
| Cable marking sleeve | 1x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V1-G-N-2M-PUR |
CAD & dimension drawings
| 3-D model (STEP) V1-G-N1-BU15M-PUR-N1 | STP · 3.4 MB |
Certificates (2)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 290 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 221 kB |
More Pepperl Fuchs parts

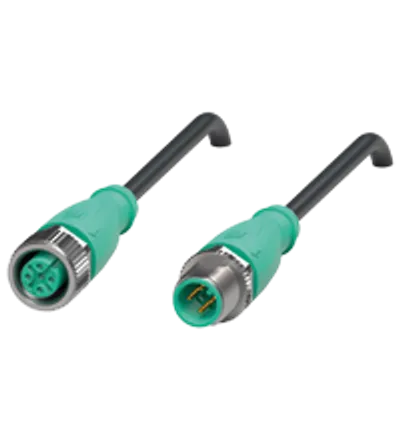

Available on requestConnection cable V1-G-GN-BK5M-PUR-A-V1-G

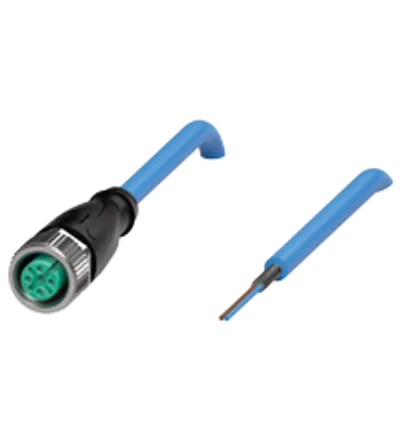

Available on requestCable connector, NAMUR V1-G-N-15M-PUR-N4S
