Pepperl Fuchs V1-G-BK1,5M-PUR-U5/ABG-V1-W – Connection cable, shielded
MPN: V1-G-BK1,5M-PUR-U5/ABG-V1-W · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1-G-BK1,5M-PUR-U5/ABG-V1-W be shipped?
V1-G-BK1,5M-PUR-U5/ABG-V1-W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1-G-BK1,5M-PUR-U5/ABG-V1-W in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1-G-BK1,5M-PUR-U5/ABG-V1-W and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1-G-BK1,5M-PUR-U5/ABG-V1-W, subject to availability and destination.
• Degree of protection IP66 / IP68 / IP69
• Resistant to microbes and hydrolysis
• UV resistant
• UL listed for USA and Canada
• Halogen-free
• Shield connected to screw connection
• Specific design protects against loosening and inaccurate installation

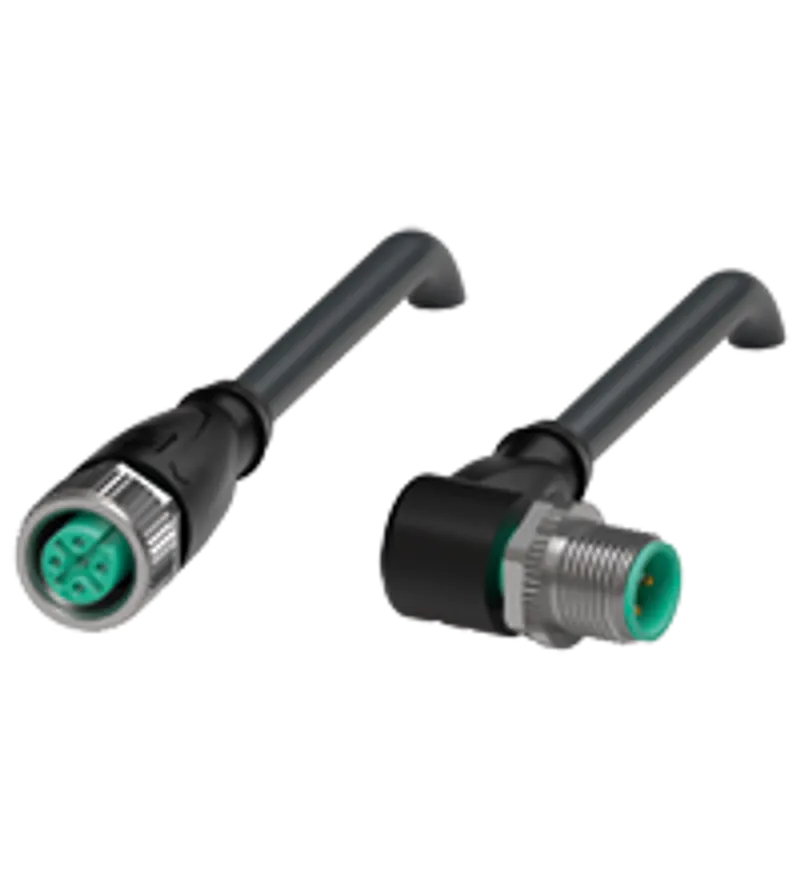

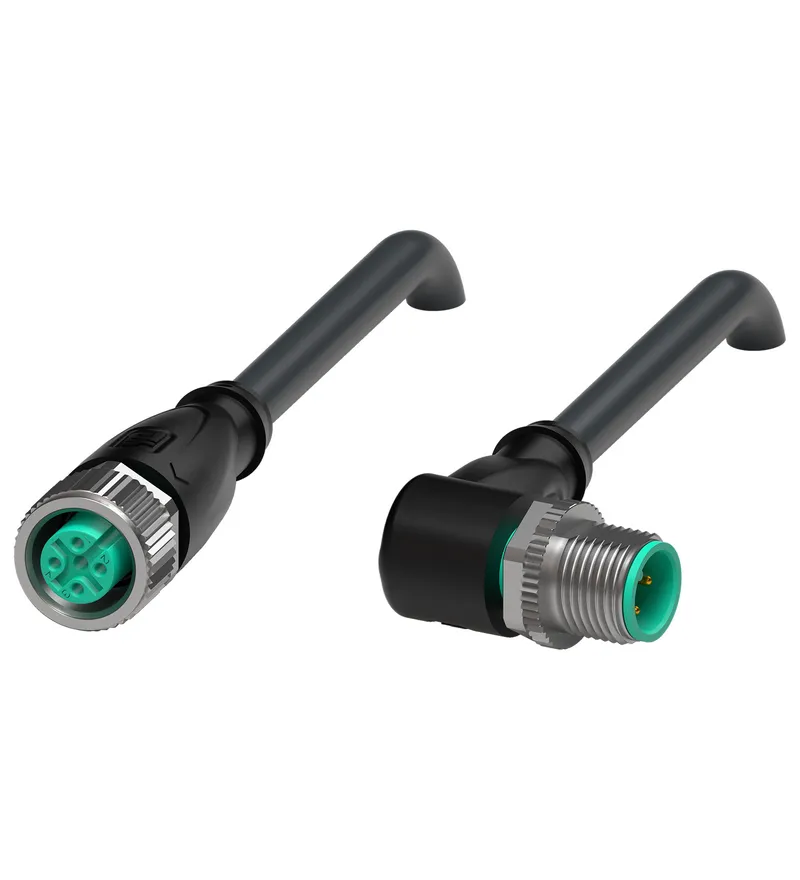

Cordset M12 socket straight to M12 plug angled A-coded, 4-pin, PUR cable black, shielded, UL-approved
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 287321 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | angled |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 4 |
| Connector 2: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 1581; DIN EN 60332-2-2 |
| Halogen-free | DIN VDE 0472-815 / DIN EN 50267-2-1 |
| Lead-free | RoHS directive 2011/65/EU |
Approvals and certificates
| UL approval | AWM STYLE 21924/11558 105°C 300V AWM I A/B 105°C 300V FT2 (cable) |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -50 ... 105 °C (-58 ... 221 °F) |
| Ambient temperature: Cable, flexing | -30 ... 105 °C (-22 ... 221 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Plug connector: Shielding | shield connected to screw connection |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 6 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | black (similar to RAL 7021) |
| Number of cores | 4 |
| Core cross section | 0.5 mm2 |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
| Core construction | 28 x 0.15 mm ∅ |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 1.5 m L |
| Cable code | Li 9Y C11Y 4 x 0,50 |
| Mass | 112 g |
Material
| Halogen-free | yes |
| Lead-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: UV resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | FT2 |
General information
| Cable marking sleeve | 2x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V1-G-BK1,5M-PUR-U5/ABG-V1-W |
CAD & dimension drawings
| 3-D model (STEP) V1-G-BK1,5M-PUR-U5/ABG-V1-W | STP · 7.3 MB |
Certificates (3)
| Canada, USA UL (CoC E231213) | PDF · 428 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 221 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 291 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts
Available on requestAdapter cable V1-G-BK0,75M-PUR-U-V1-G-Y285728MPN: V1-G-BK0,75M-PUR-U-V1-G-Y285728 · Pepperl Fuchs
Price on request
Request a quote
Available on requestConnection cable V1-G-BK0,75M-PVC-U-V1-W-Y30643MPN: V1-G-BK0,75M-PVC-U-V1-W-Y30643 · Pepperl Fuchs
Price on request
Request a quote
Available on requestConnection cable V1-G-BK1,5M-PUR-A-V1-GMPN: V1-G-BK1,5M-PUR-A-V1-G · Pepperl Fuchs
Price on request
Request a quote
Available on requestFemale cordset V1-G-BK1,5M-PUR-UMPN: V1-G-BK1,5M-PUR-U · Pepperl Fuchs
Price on request
Request a quote
Available on requestFemale cordset V1-G-BK10M-PUR-AMPN: V1-G-BK10M-PUR-A · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestConnection cable V1-G-BK10M-PUR-A-V1-GMPN: V1-G-BK10M-PUR-A-V1-G · Pepperl Fuchs
Price on request
Request a quote
Available on requestFemale cordset V1-G-BK10M-PUR-O1MPN: V1-G-BK10M-PUR-O1 · Pepperl Fuchs
Price on request
Request a quote

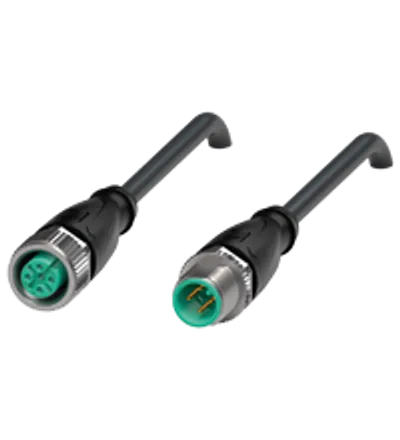

Available on requestConnection cable V1-G-BK10M-PUR-O1-V1-GMPN: V1-G-BK10M-PUR-O1-V1-G · Pepperl Fuchs
