Pepperl Fuchs V1-G-3M-PUR-ABG-SUBD15 – Adapter cable
MPN: V1-G-3M-PUR-ABG-SUBD15 · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1-G-3M-PUR-ABG-SUBD15 be shipped?
V1-G-3M-PUR-ABG-SUBD15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1-G-3M-PUR-ABG-SUBD15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1-G-3M-PUR-ABG-SUBD15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1-G-3M-PUR-ABG-SUBD15, subject to availability and destination.
• M12 to Sub-D adapter
• Halogen-free
• Degree of protection IP20
• Shield connected to screw connection
• Specific design protects against loosening and inaccurate installation

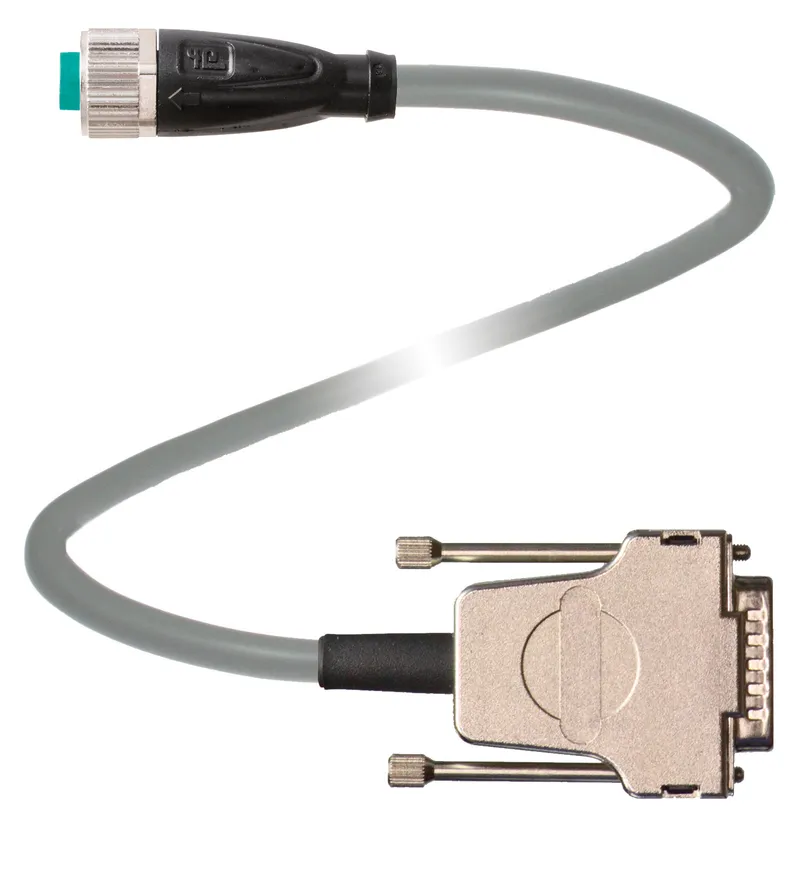

Adapter cable M12 socket straight A-coded 4-pin to Sub-D-plug 15-pin, PUR cable grey, shielded
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 246298 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | Sub-D |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 15 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 Connector Sub-D : IEC 807-2 |
| Halogen-free | DIN VDE 0472-815 DIN EN 50267-2-1 |
| Lead-free | RoHS directive 2011/65/EU |
Ambient conditions
| Ambient temperature: Connector 1 | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Connector 2 | -55 ... 130 °C (-67 ... 266 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 1 |
Mechanical specifications

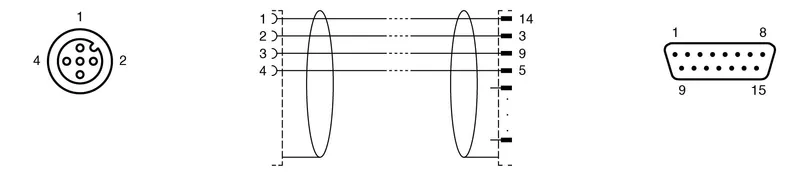

| Connector 1: Tightening torque | 0.6 Nm |
| Connector 1: Loosening protection | integrated |
| Connector 1: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Connector 1: Mating cycles | min. 100 |
| Connector 1: Shielding | shield connected to screw connection |
| Connector 1: Degree of protection | IP66 / IP68 / IP69 |
| Connector 2: Tightening torque | 0.4 Nm |
| Connector 2: Loosening protection | screws UNC 4-40 |
| Connector 2: Mating cycles | min. 100 |
| Connector 2: Shielding | shield connected to connector |
| Connector 2: Degree of protection | IP20 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.8 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 100 N / 300 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1-14: brown Core 2-3: white Core 3-9: blue Core 4-5: black |
| Core construction | 19 x 0.15 mm ∅ |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 3 m L |
| Cable code | Li 9Y 11YM 4 x 0.34 |
| Mass | 143.95 g |
Material
| Halogen-free | yes |
| Lead-free | yes |
| Connector 1: Screw connection | Zinc diecast, nickel-plated |
| Connector 1: Body | TPU, black |
| Connector 1: Contact surface | gold plated (Au) |
| Connector 1: Flammability | V-2 |
| Connector 2: Body | nickel-plated steel |
| Connector 2: Contact surface | Cu alloy |
| Connector 2: Flammability | V-0 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Chemical resistance | good |
General information
| Cable marking sleeve | 1x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V1-G-3M-PUR-ABG-SUBD15 |

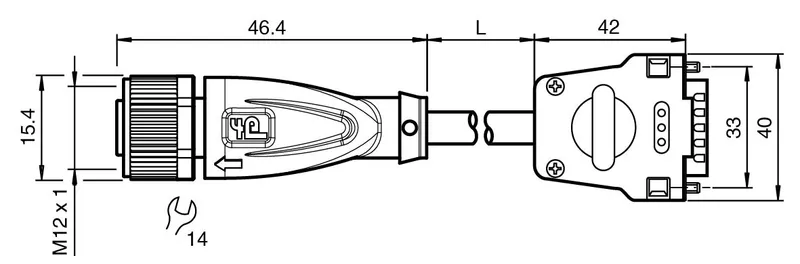

CAD & dimension drawings
