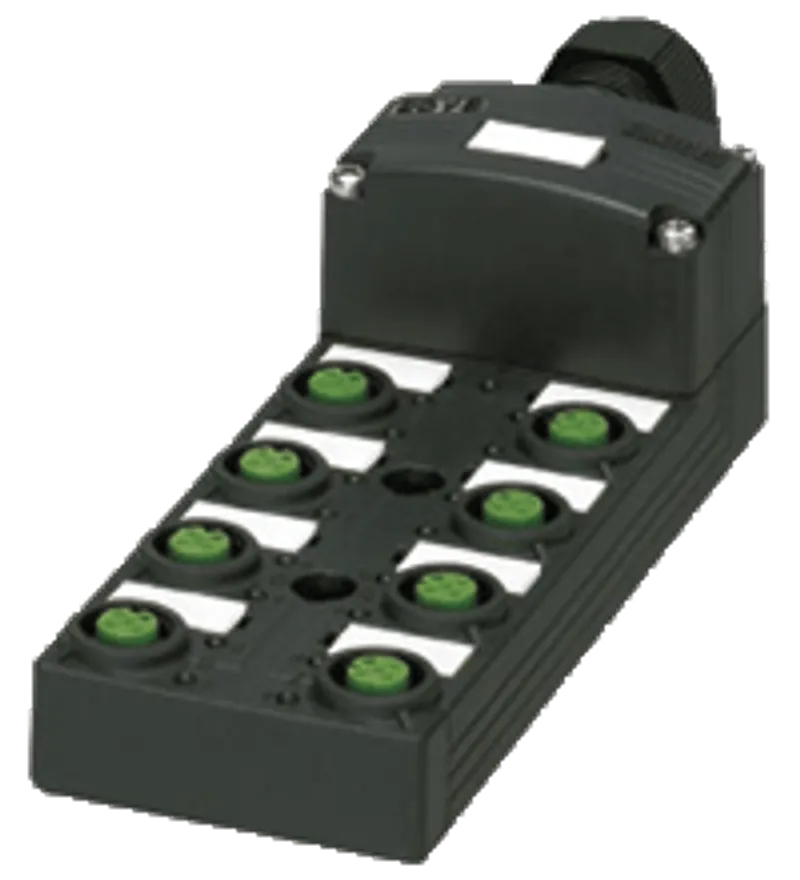

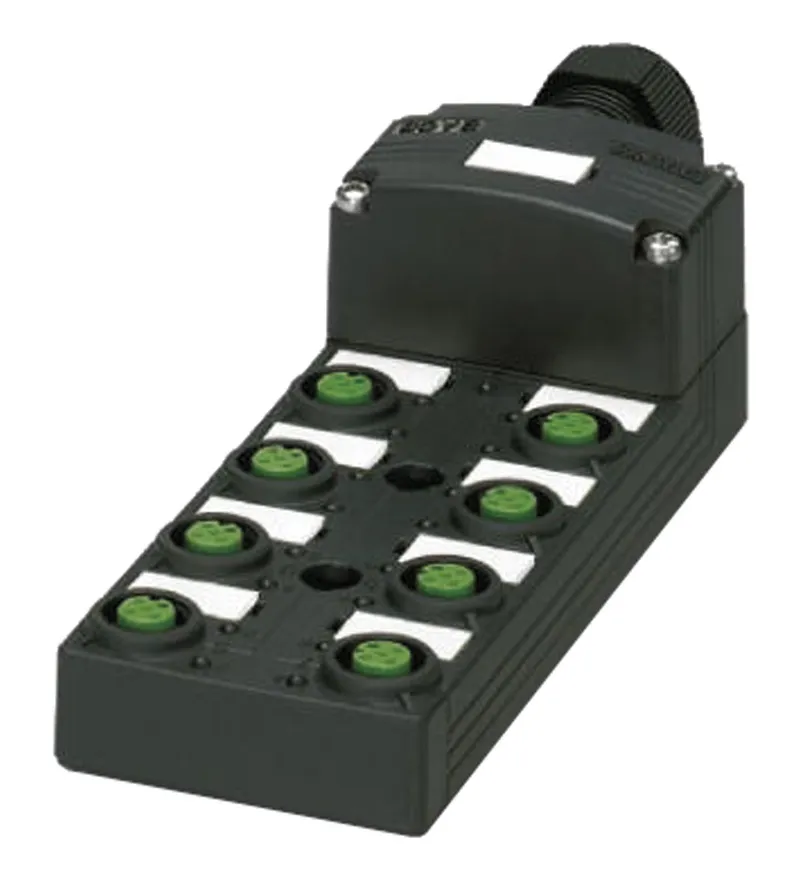

Pepperl Fuchs V1-8/16A-E2
Splitter boxes
- MPN
- V1-8/16A-E2
- Category
- Passive Splitters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs V1-8/16A-E2?
Fast, simple installation with cage clamp terminals
Twin communication of the plug-in stations
LED indicator for module supply and I/O status
Splitter box octuple, twin configuration, with cage-clamp terminals
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 259974 |
| Number of pins | 5 |
| UL File Number | E191152 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green | supply voltage each module |
| LED yellow | I/O status indication |
Electrical specifications
| Operating voltage | max. 24 V DC -20 % / +25 % UB |
| Operating current | ≤ 5 mA per channel indication element IB |
| Current loading capacity | ≤ 2 A per channel,≤ 4 A per plug-in station,≤ 8 A total current per distributor |
Output
| Number/Type | 8 , twin configuration |
Conformity
| Degree of protection | EN 60529 |
| Flammability | UL 94 |
Ambient conditions
| Ambient temperature | -25 ... 80 °C (-13 ... 176 °F) |
Mechanical specifications
| Connection type | 8 x socket M12 x 1 5-pin 1 x terminal compartment |
| Degree of protection | IP65 / IP67 |
| Connection | Signal and energy: Cage tension spring terminals flexible: 0.2 mm2 ... 1 mm2 rigid: 0.2 mm2 ... 1.5 mm2 Sensor/actuator: 5-pin, M12 x 1 socket |
| Material: Contacts | Cu alloy |
| Material: Contact surface | Au |
| Material: Housing | PBT |
| Material: Threaded bushings | PBT |
| Material: Seal | O-ring: NBR |
| Cable: Sheath diameter | 7 mm ... 12 mm |
| Mass | 224.83 g |
| Dimensions: Height | 42.6 mm |
| Dimensions: Width | 54 mm |
| Dimensions: Length | 117 mm |
| Flammability | V-0 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

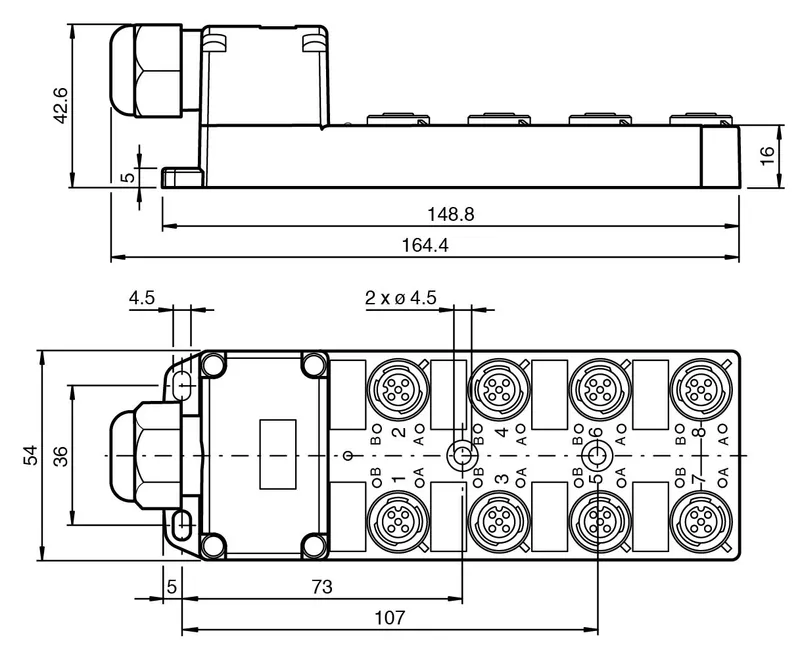

CAD & dimension drawings
