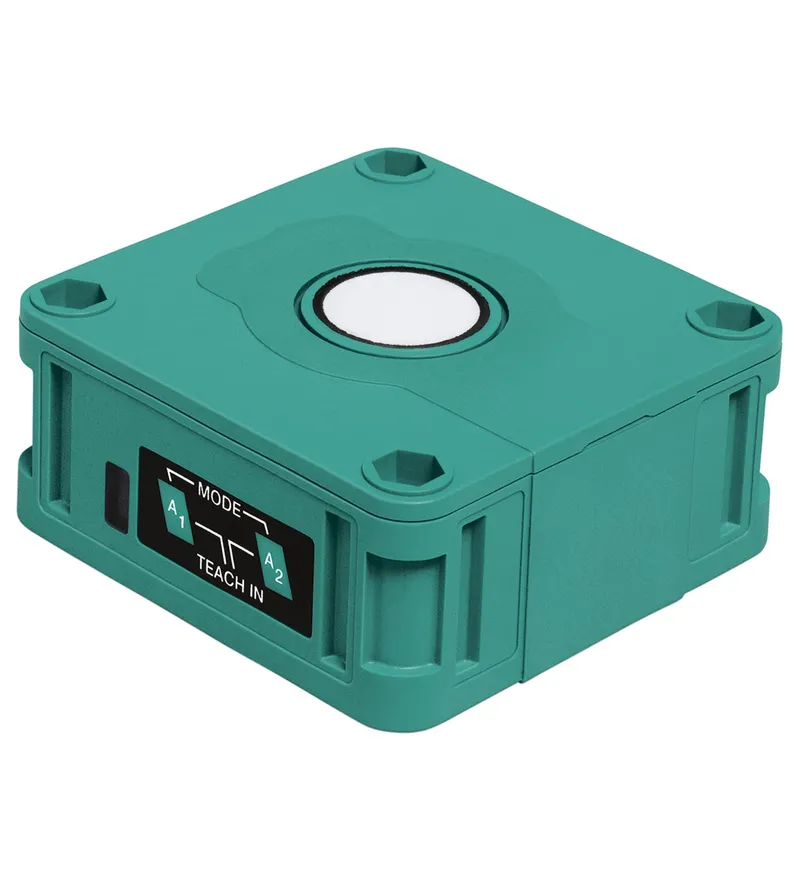

Ultrasonic sensor UB1500-F42-UK-V95 — photo 2 of 4

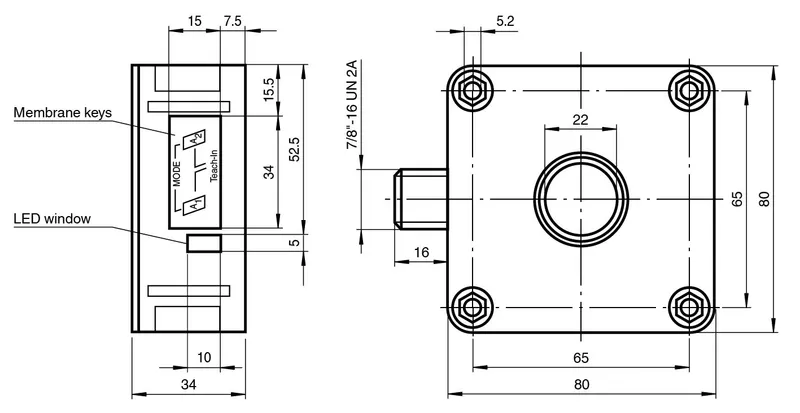

Ultrasonic sensor UB1500-F42-UK-V95 — photo 3 of 4

Ultrasonic sensor UB1500-F42-UK-V95 — photo 4 of 4

Available on request

Pepperl Fuchs UB1500-F42-UK-V95 – Ultrasonic sensor

MPN: UB1500-F42-UK-V95 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Diffuse Mode and Retroreflective Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can UB1500-F42-UK-V95 be shipped?

UB1500-F42-UK-V95 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up UB1500-F42-UK-V95 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for UB1500-F42-UK-V95 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for UB1500-F42-UK-V95, subject to availability and destination.

• Relay output for high power

• Extremely small unusable area

• TEACH-IN

• Interference suppression (adjustable divergence of sound cone in close range)

• Temperature compensation

• NO/NC selectable

Single head system, Relay output for high power, Extremely small unusable area, TEACH-IN, Series: UB-F42, Operating voltage: 22 ... 253 V DC , 22 ... 253 V AC , 47 ... 63 Hz, Output type: 1 relay output, Connection: 5-pin V95 connector (7/8"-16 UN 2A), Housing: PBT

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	111683
Sensing range	70 ... 1500 mm
Adjustment range	90 ... 1500 mm
Dead band	0 ... 70 mm
Standard target plate	100 mm x 100 mm
Transducer frequency	approx. 175 kHz
Response delay	approx. 150 ms
Lifecycle	Active (current Pepperl+Fuchs product)

Indicators/operating means

LED green	solid green: Power on
LED yellow	solid: switching state switch outputflashing: program function
LED red	normal operation: "fault"program function: no object detected

Electrical specifications

Fusing	≤ 3 A Slow-blow fuse in accordance with IEC 60127-2 Sheet 5 required. Recommendation: after a short circuit, check that the device is functioning correctly.
Operating voltage	22 ... 253 V DC 22 ... 253 V AC , 47 ... 63 Hz UB
No-load supply current	≤ 60 mA I0
Time delay before availability	≤ 800 ms tv

Output

Output type	1 relay output
Rated operating current	3 A Ie
Repeat accuracy	≤ 0.5 % of switching point
Switching frequency	≤ 3 Hz f
Range hysteresis	1 % of the set operating distance H
Temperature influence	± 1 % of full-scale value

Compliance with standards and directives

Standard conformity: Standards

EN IEC 60947-5-2:2020 IEC 60947-5-2:2019

Ambient conditions

Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Degree of protection	IP65
Connection	5-pin V95 connector (7/8"-16 UN 2A)
Material: Housing	PBT
Material: Transducer	epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT
Mass	260 g
Dimensions: Height	80 mm
Dimensions: Width	80 mm
Dimensions: Length	34 mm
