Pepperl Fuchs SR*-U*
Enclosure (Ex e)
- MPN
- SR*-U*
- Category
- Enclosures (Ex d, Ex e)
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

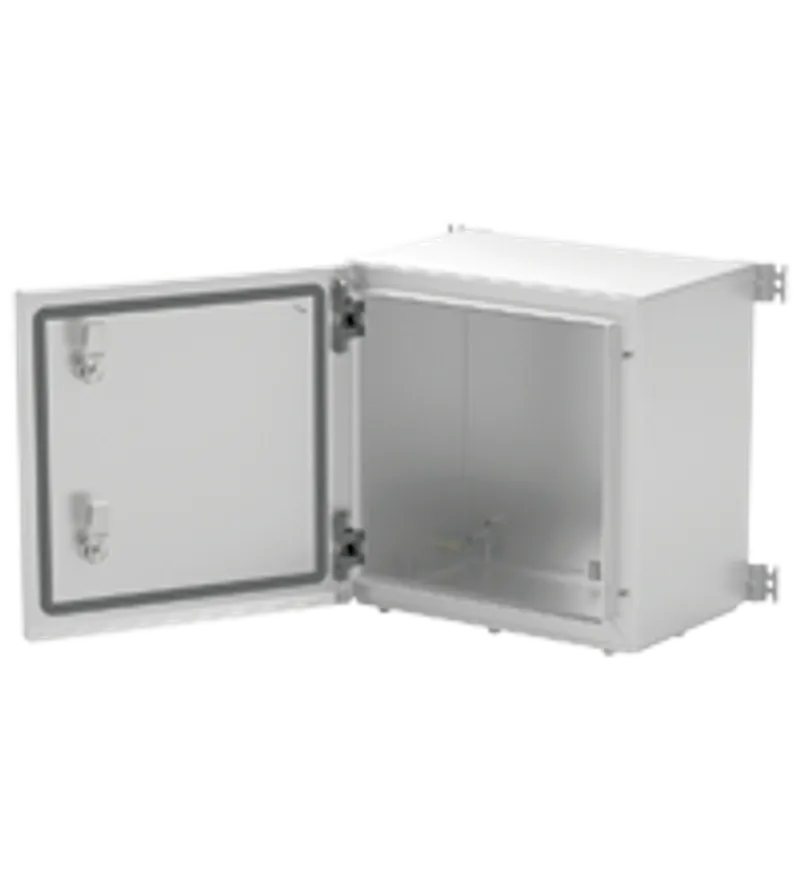

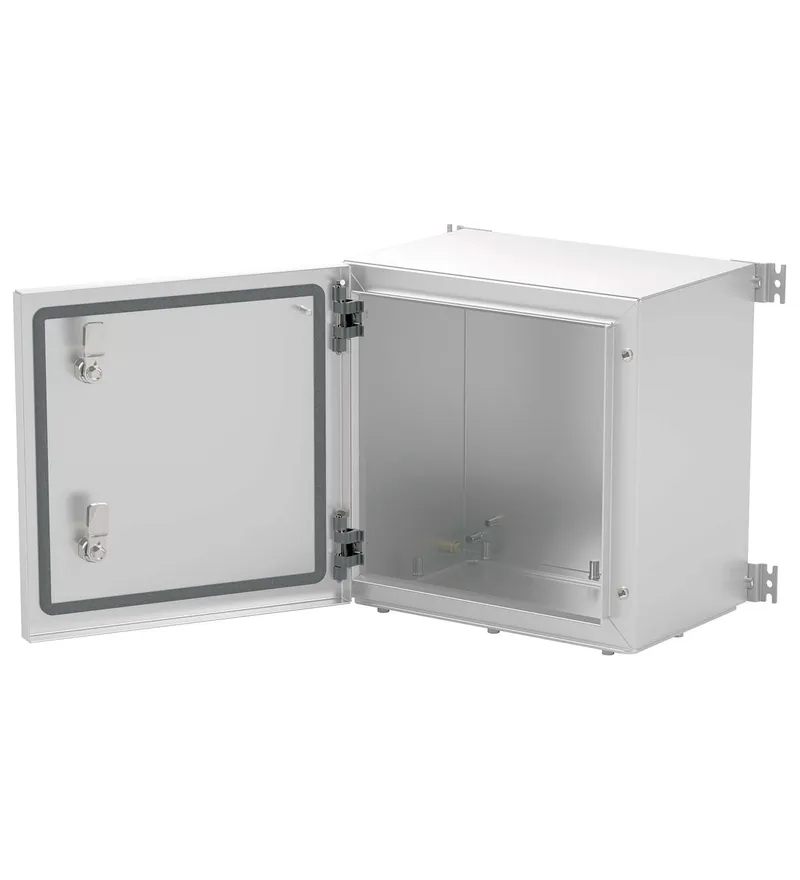

What is the Pepperl Fuchs SR*-U*?
Stainless Steel enclosure
Brushed enclosure, IP66
Installation in Zone 1, Zone 2, Zone 21 and Zone 22
Ex eb and Ex tb certified
Suitable for operation in Class I, II Division 2
Suitable for operation in Class I Zone 2, Class II Zone 22
32 enclosure size options
Return Flange Sealing provides Drain Channel
Option for vertical or horizontal mounting provides high flexibility
Customizable configuration of gland plates, ground bolt and hinges as per specification
Wide range of accessories available
Stainless Steel enclosure, Brushed enclosure, IP66, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex eb and Ex tb certified, Suitable for operation in Class I, II Division 2, Suitable for operation in Class I Zone 2, Class II Zone 22, 32 enclosure size options, Return Flange Sealing provides Drain Channel, Option for vertical or horizontal mounting provides high flexibility, Customizable configuration of gland plates, ground bolt and hinges as per specification, Explosion protection: Ex e
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T202985 |
| Operating voltage | 1100 V AC / DC max. for ATEX / IECEx 1000 V AC / DC max. for North American approvals |
| Operating current | 350 A max. , depending on size and certification |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure cover | fully detachable |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw , optional quarter-turn key locks |
| Cover seal | silicone |
| Degree of protection | IP66 , Type 4X |
| Cable entry | see data table |
| Gland plate on face(s) | optional |
| Terminal assembly: Number of rails | see data table |
| Terminal assembly: Terminal type | Standard see PDF datasheet, other terminal types optional |
| Terminal assembly: Number of terminals per rail | see data table |
| Material: Enclosure | 1.5 mm AISI 316L, (1.4404) stainless steel |
| Material: Gland plate | optional 3 mm or 6 mm AISI 316L (1.4404) stainless steel |
| Material: Finish | brushed |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Shock resistance | IK09, IK10 |
| Dimensions | see data table |
| Mounting | screws , optional mounting brackets enclosed |
| Grounding | M6 internal/external brass nickel-plated grounding bolt M6 internal stainless steel grounding bolt welded to lid M6 internal stainless steel grounding bolt welded to enclosure body |
Ambient conditions
| Ambient temperature | -60 ... 120 °C (-76 ... 248 °F) depending on integrated components |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 20 ATEX 3118U |
| Marking | II 2 GD Ex eb IIC Gb Ex tb IIIC Db |
International approvals
| UL approval: Approved for | Class I and II, Division 2 Class I, Zone 2, Class II, Zone 22 |
| UL approval: cULus | E499269 |
| UL approval: Ambient temperature | -25 ... 40 °C (-13 ... 104 °F) |
| IECEx approval | IECEx CML 20.0076U |
| UKCA approval | CML 21 UKEX 3423U |
Conformity
| Degree of protection | EN60529 or UL 50 / UL50E / CSA 22.2 No. 94 |
| Shock resistance | EN IEC 62262 |
General information
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Accessories
| Optional accessories | Mounting plate M6 internal/external stainless steel grounding bolt cover hinges stainless steel AISI 316L gland plate 3 mm AISI 316L (1.4404) stainless steel gland plate 6 mm AISI 316L (1.4404) stainless steel M6 internal stainless steel grounding bolt welded to bottom gland plate quarter-turn key locks stainless steel A4 (V4A) engraved traffolyte tag label engraved AISI 316L stainless steel tag label color in-fill stainless steel tag label cover padlock facility eyebolts door handles |
