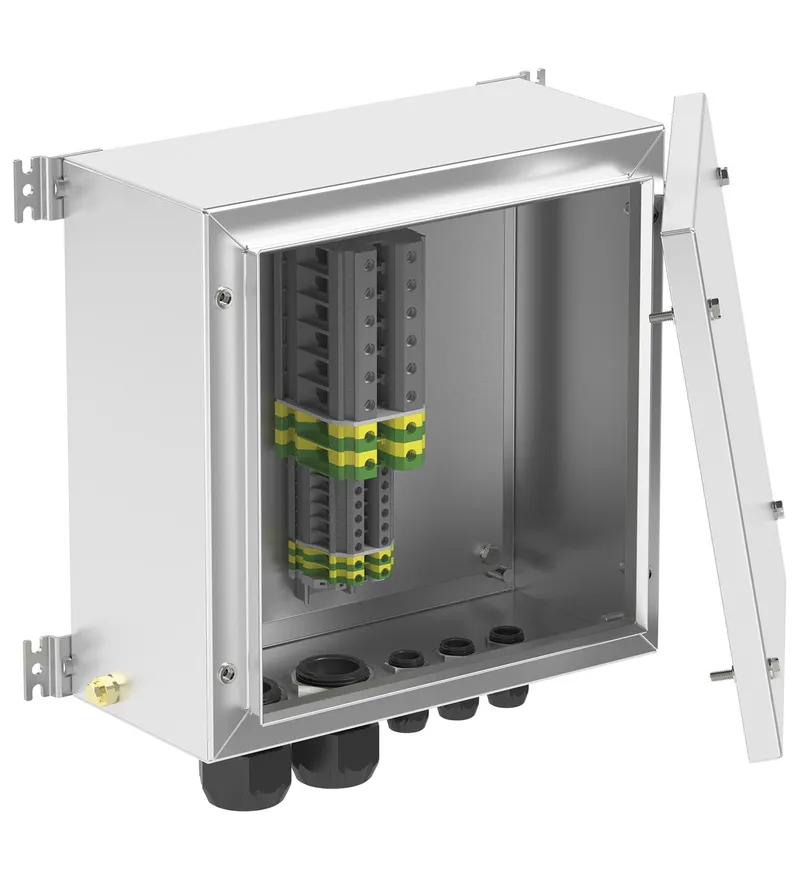

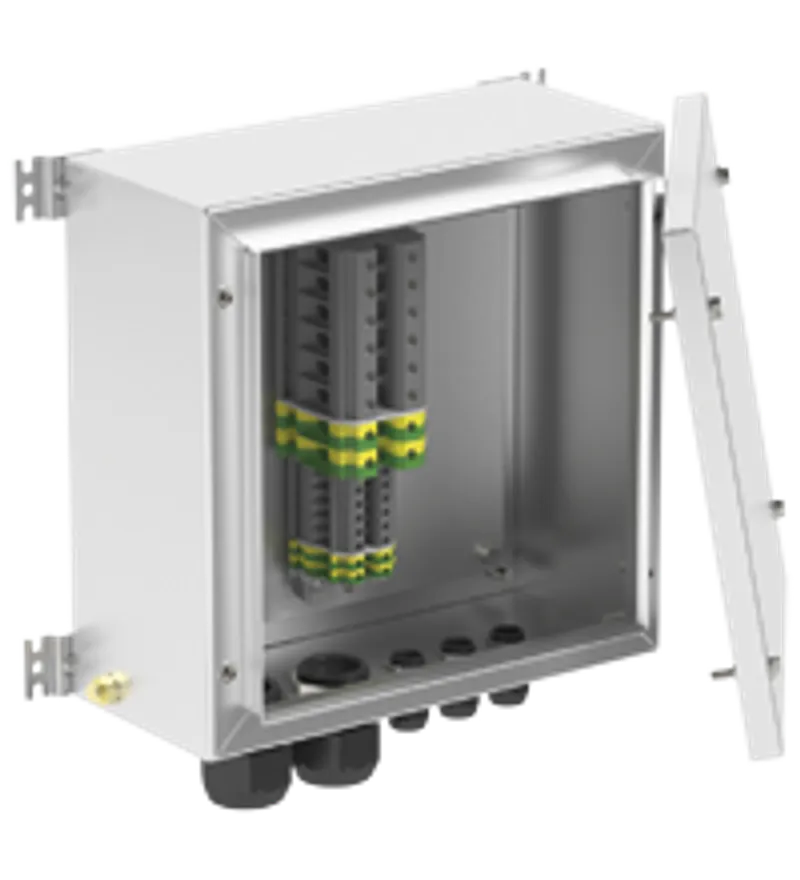

Pepperl Fuchs SR.T* – Terminal and Junction Boxes Ex e / Ex i with Return Flange, Stainless Steel
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal and Junction Boxes (Ex e, Ex i, Ex op) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SR.T* be shipped?
SR.T* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SR.T* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SR.T* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SR.T*, subject to availability and destination.
• Stainless Steel enclosure
• Installation in Zone 1, Zone 2, Zone 21 and Zone 22
• Installation in Class I, II, Division 2
• Ex eb, Ex ia and Ex tb certified
• 16 enclosure size options
• Return Flange Sealing provides Drain Channel
• Customizable configuration of terminals, cable entries and cable gland types as per specification
• Customizable configuration of gland plates, ground bolt and hinges as per specification
• Option for vertical or horizontal mounting provides high flexibility
• Up to 4 gland plates
• Wide range of accessories available
Stainless Steel enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Installation in Class I, II, Division 2, Ex eb, Ex ia and Ex tb certified, 16 enclosure size options, Return Flange Sealing provides Drain Channel, Customizable configuration of terminals, cable entries and cable gland types as per specification, Customizable configuration of gland plates, ground bolt and hinges as per specification, Option for vertical or horizontal mounting provides high flexibility, Up to 4 gland plates
Specifications
Electrical specifications
| Order code (Pepperl+Fuchs part number) | T195509 |
| Operating voltage | 1100 V AC / DC max. for ATEX / IECEx |
| Operating current | 350 A max. , depending on size and certification |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Enclosure cover | fully detachable |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw , optional quarter-turn key locks |
| Cover seal | silicone |
| Degree of protection | IP66 , Type 4X |
| Cable entry | see data table |
| Gland plate on face(s) | optional |
| Terminal assembly: Number of rails | see data table |
| Terminal assembly: Terminal type | Standard see PDF datasheet, other terminal types optional |
| Terminal assembly: Number of terminals per rail | see data table |
| Material: Enclosure | 1.5 mm AISI 316L, (1.4404) stainless steel |
| Material: Gland plate | optional 3 mm or 6 mm AISI 316L (1.4404) stainless steel |
| Material: Finish | brushed |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Shock resistance | IK09, IK10 |

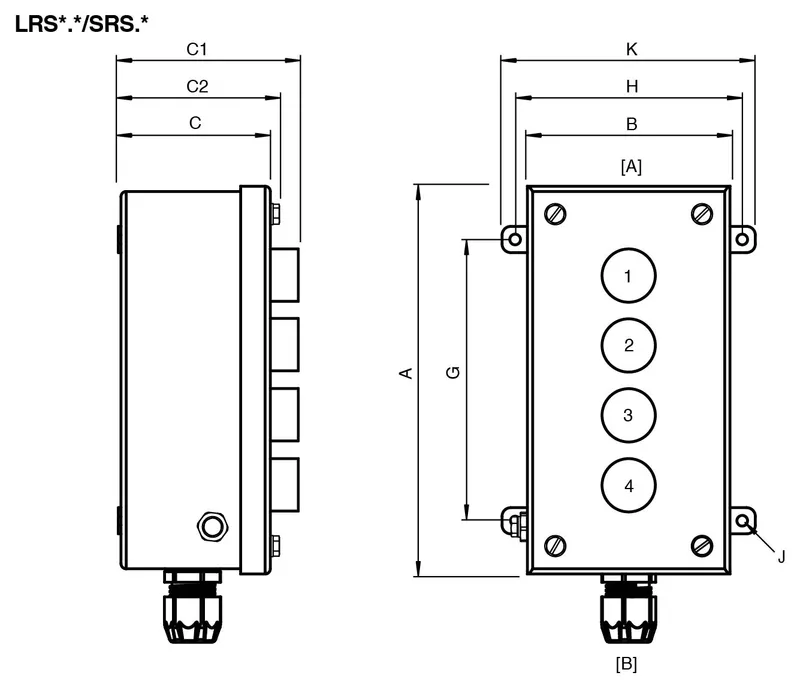

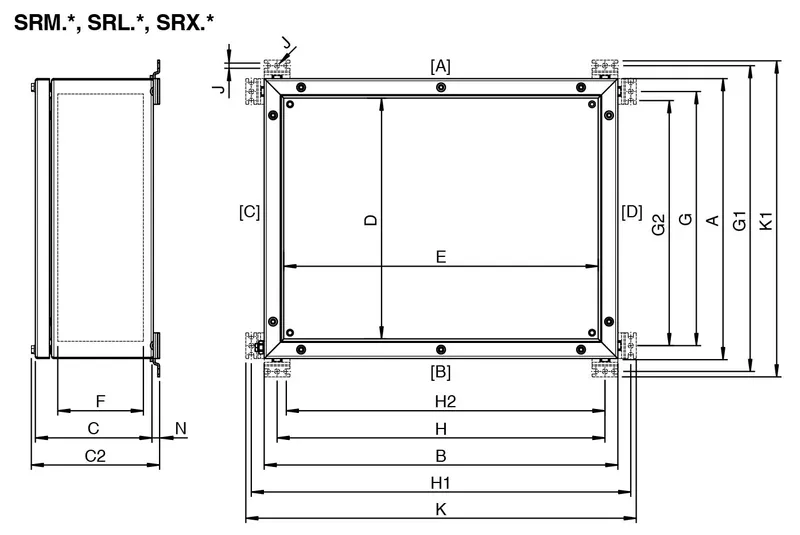

| Dimensions | see data table |
| Mounting | screws , optional mounting brackets enclosed |
| Grounding | M6 internal/external brass nickel-plated grounding bolt M6 internal stainless steel grounding bolt welded to lid M6 internal stainless steel grounding bolt welded to enclosure body |
Ambient conditions
| Ambient temperature | -60 ... 65 °C (-76 ... 149 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 20 ATEX 3156X |
| Marking | II 2 GD Ex eb IIC T* Gb, Ex tb IIIC T** Db or Ex ia IIC T* Gb T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +55 °C T4/T130 °C @ Ta +60 °C |
International approvals
| IECEx approval | IECEx CML 20.0094X |
| UKCA approval | CML 21 UKEX 3892X |
| ETL approval: ETL certificate | Intertek 5003368 , Intertek 5022079 |
| ETL approval: Approved for | Class I, Division 2, Groups A, B, C, D Class II, Division 2, Groups F, G Class III |
| ETL approval: cETLus | according to UL 1773 , UL 121201 , CSA C22.2, No. 40, 213 |
| ETL approval: Ambient temperature | -50 ... 65 °C (-58 ... 149 °F) |
| ECAS approval | 23-08-81524/E23-08-083807 |
| CCoE approval | PESO A/P/HQ/KA/104/5946 (P528900) |
| IA approval | MASC S/25-8314X |
| CCC approval | 2023122303116185 |
Conformity
| Degree of protection | EN60529 and UL 50 / UL 50E |
| Shock resistance | EN IEC 62262 |
| CE marking | 0102 |
General information
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Accessories
| Optional accessories | Mounting plate M6 internal/external stainless steel grounding bolt cover hinges stainless steel AISI 316L gland plate 3 mm AISI 316L (1.4404) stainless steel gland plate 6 mm AISI 316L (1.4404) stainless steel M6 internal stainless steel grounding bolt welded to bottom gland plate quarter-turn key locks stainless steel A4 (V4A) engraved traffolyte tag label engraved AISI 316L stainless steel tag label color in-fill stainless steel tag label cover padlock facility eyebolts door handles |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Instruction Manual | PDF · 167 kB |
| Commissioning Instructions | PDF · 170 kB |
| Brief Instructions | PDF · 582 kB |
Certificates (10)
| South Africa MASC (MASC S/25-8314X) | PDF · 747 kB |
| Brasil DNV GL Brasil (DNV 24.0104 X) | PDF · 270 kB |
| ATEX Certificate (CML 20ATEX3156X) | PDF · 142 kB |
| UK-Type Examination Certificate (CML 21UKEX3892X) | PDF · 162 kB |
| CCC Ex Certificate (2023122303116185 (Mannheim)) | PDF · 3.3 MB |
| Canada, USA UL Hazardous Location (E499269 Vol 1 Sec 2) | PDF · 557 kB |
| Canada, USA Intertek Hazardous Location (104837524DAL-001) | PDF · 106 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 261 kB |
| India PESO (India) CCOE (A/P/HQ/KA/104/5946 (P528900)) | PDF · 79 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 452 kB |
More Pepperl Fuchs parts

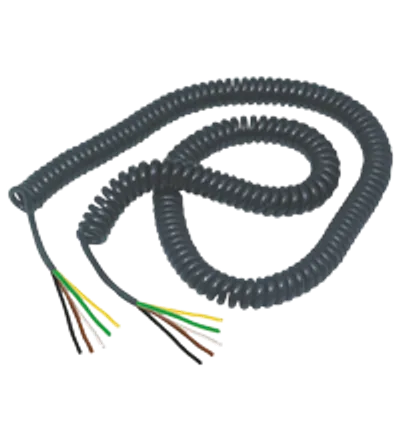

Available on requestBulk Spiral Cable SPK 5x0,25mm² BL900/2000/350Available on requestBulk Spiral Cable SPK 5x0,25mm² BL900/200/300

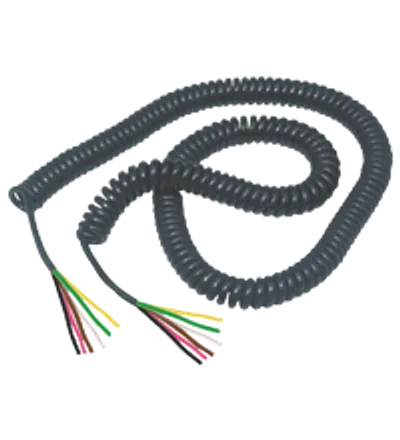

Available on requestBulk Spiral Cable SPK 6x0,25mm² BL900/4000/350

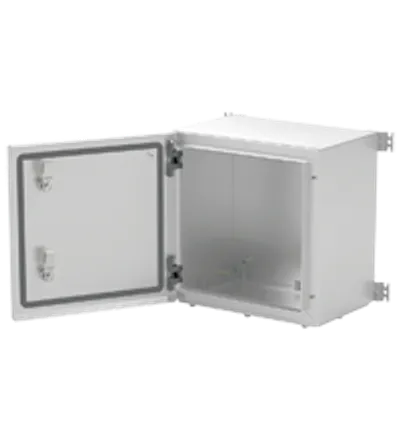

Available on requestEnclosure (Ex e) SR*-U*
