Pepperl Fuchs REF-HEATER120
Reflector, heatable
- MPN
- REF-HEATER120
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs REF-HEATER120?
Mounting holes for simple installation

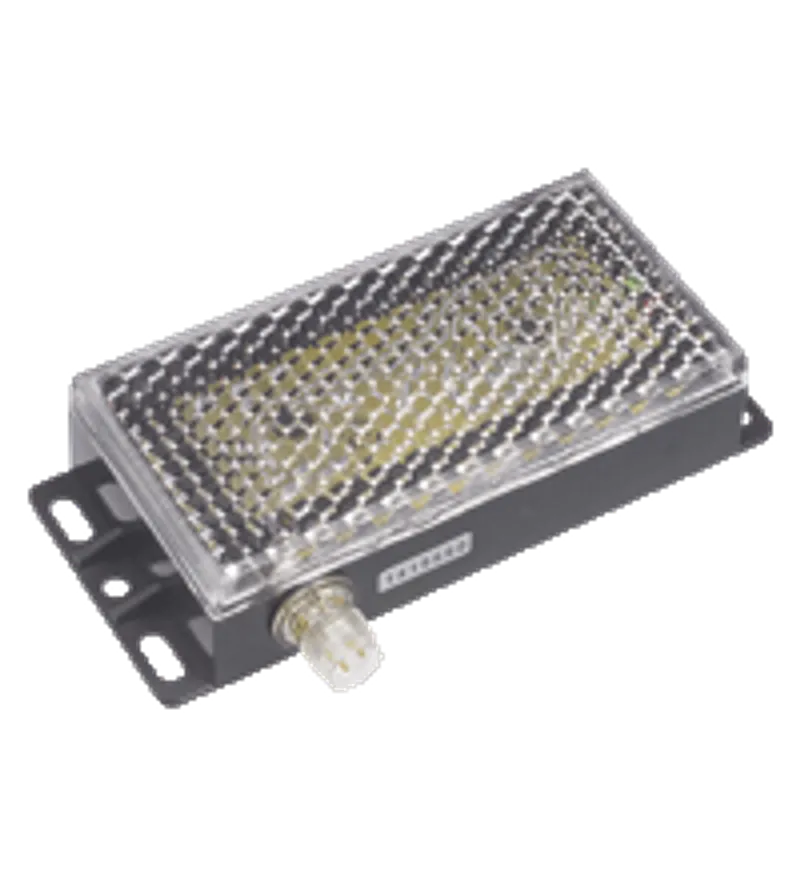

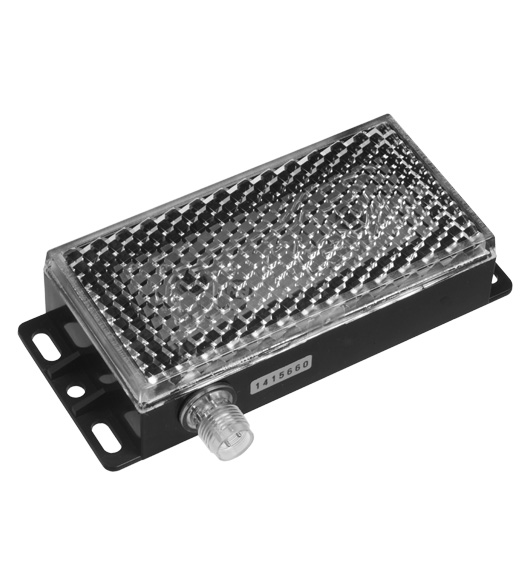

Reflector, rectangular 120 mm x 51 mm, mounting holes, heatable 24 V DC, Mounting holes for simple installation
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 113964 |
| Construction type | rectangular |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 24 V DC UB |
| Operating current | 200 mA IB |
| Power consumption | max. 6 W P0 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |

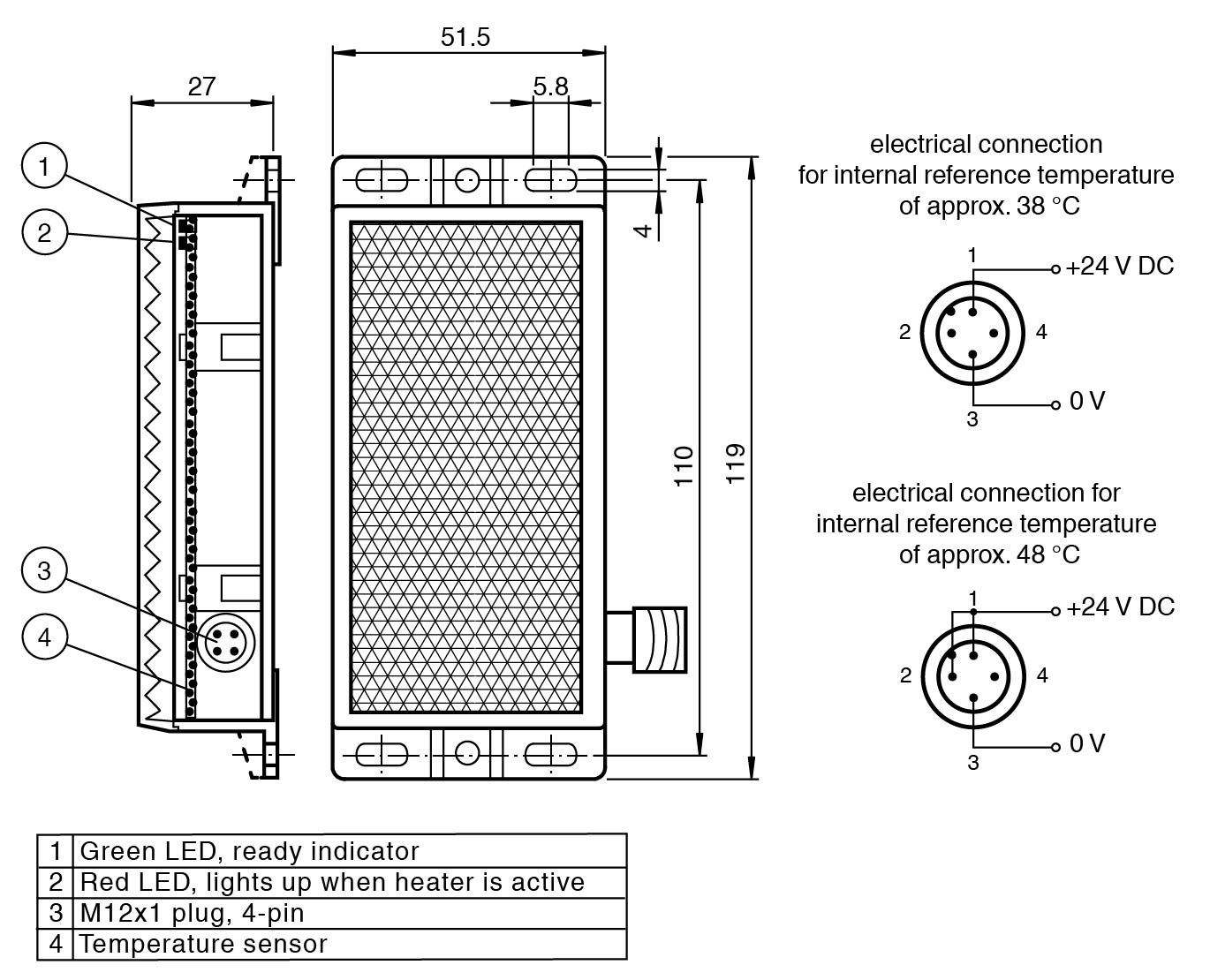

Mechanical specifications
| Connection | 4-pin, M12 x 1 connector |
| Material | PMMA/ABS |
| Dimensions: Height | 27 mm |
| Dimensions: Width | 51.5 mm |
| Dimensions: Length | 119 mm |
| Mounting | mounting holes |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
REF-HEATER120: frequently asked questions
When can REF-HEATER120 be shipped?
REF-HEATER120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up REF-HEATER120 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for REF-HEATER120 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for REF-HEATER120, subject to availability and destination.
