Home / Pepperl Fuchs / Accessories / Pepperl Fuchs REF-H85HT

Pepperl Fuchs

Pepperl Fuchs REF-H85HT

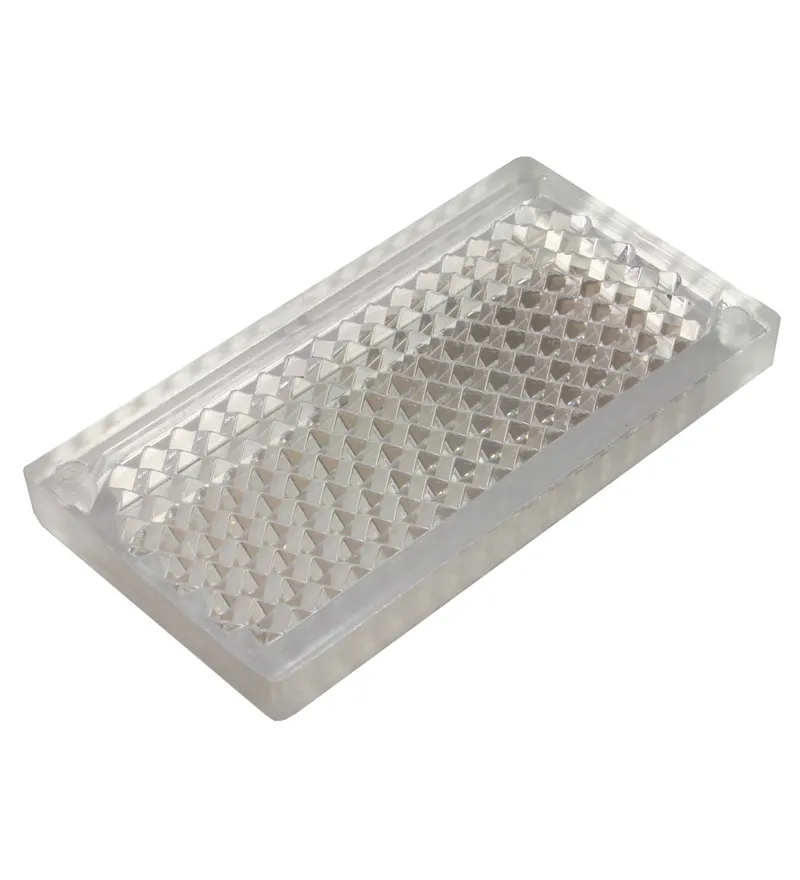

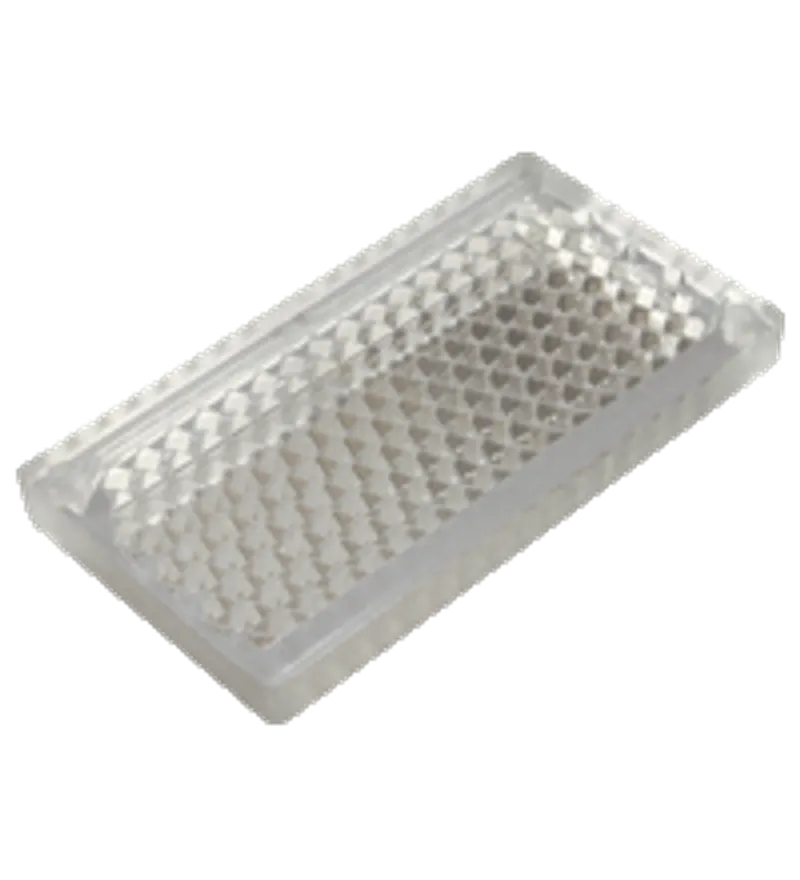

Reflector

MPN: REF-H85HT
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs REF-H85HT?

Specially resistant to scratching and knocks

High temperature rated to 500 °C

Reflector, rectangular 51 mm x 94 mm, mounting holes, high temperature resistant up to 500 °C, Specially resistant to scratching and knocks, High temperature rated to 500 °C

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	197532
Construction type	rectangular
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature

-50 ... 500 °C (-58 ... 932 °F)

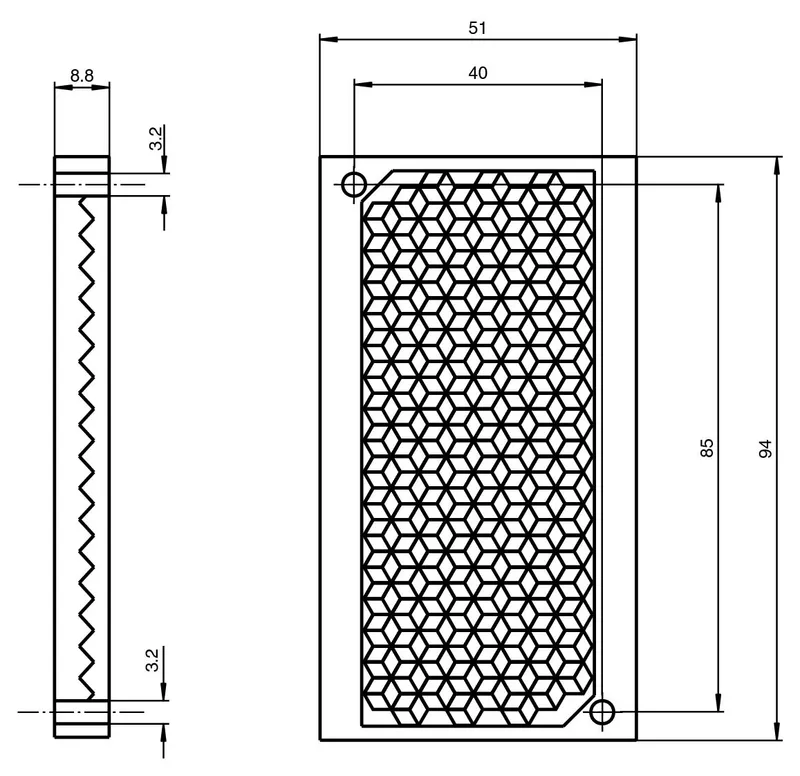

Mechanical specifications

Material	Borosilicate glass
Dimensions: Height	8.8 mm
Dimensions: Width	51 mm
Dimensions: Length	94 mm
Mounting	mounting holes

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet REF-H85HTPDF

REF-H85HT: frequently asked questions

When can REF-H85HT be shipped?

REF-H85HT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up REF-H85HT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for REF-H85HT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for REF-H85HT, subject to availability and destination.
