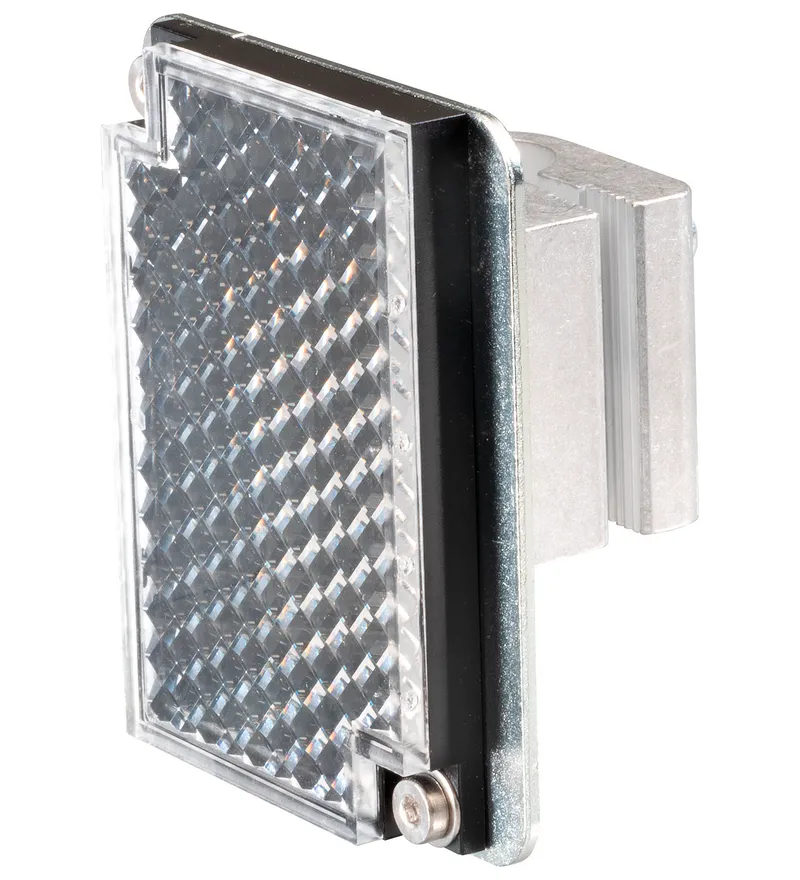

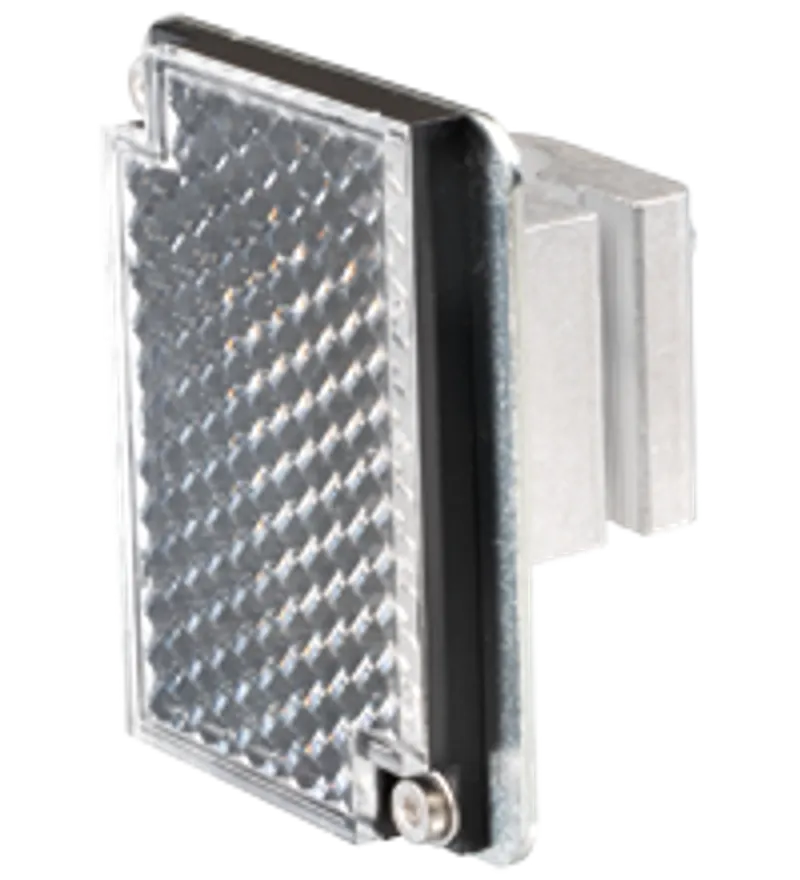

Pepperl Fuchs REF-H60-SET
Reflector
- MPN
- REF-H60-SET
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs REF-H60-SET?
Pre-assembled on angle bracket
Reflector, rectangular 40.3 mm x 59.9 mm, with angle bracket, Pre-assembled on angle bracket
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70177301 |
| Reference target | H60 reflector |
| Construction type | rectangular |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |

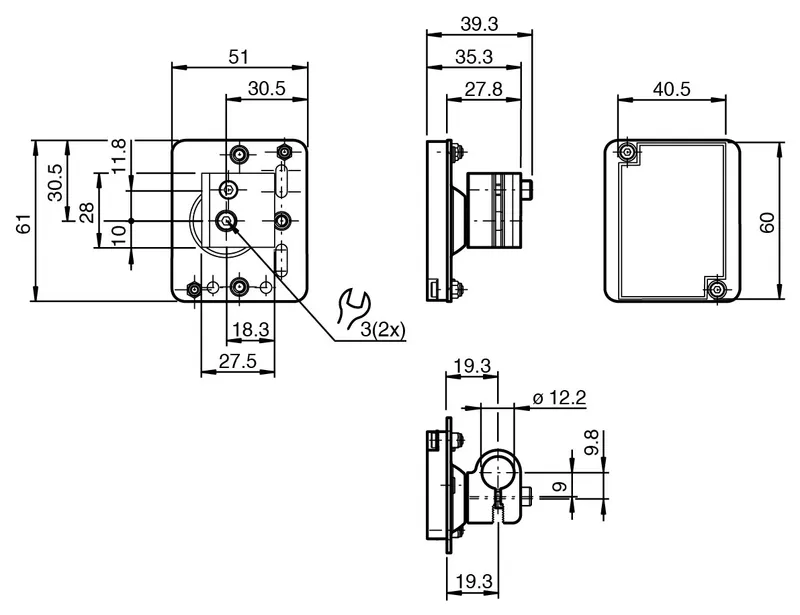

Mechanical specifications
| Material | PMMA/ABS |
| Dimensions | 59.9 mm x 40.3 mm x 7.8 mm |
| Height | 39.3 mm |
| Width | 51 mm |
| Length | 61 mm |
| Mounting | mounting holes |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
REF-H60-SET: frequently asked questions
When can REF-H60-SET be shipped?
REF-H60-SET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up REF-H60-SET in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for REF-H60-SET and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for REF-H60-SET, subject to availability and destination.
