Pepperl Fuchs REF-H60
Reflector
- MPN
- REF-H60
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs REF-H60?
Mounting holes for simple installation

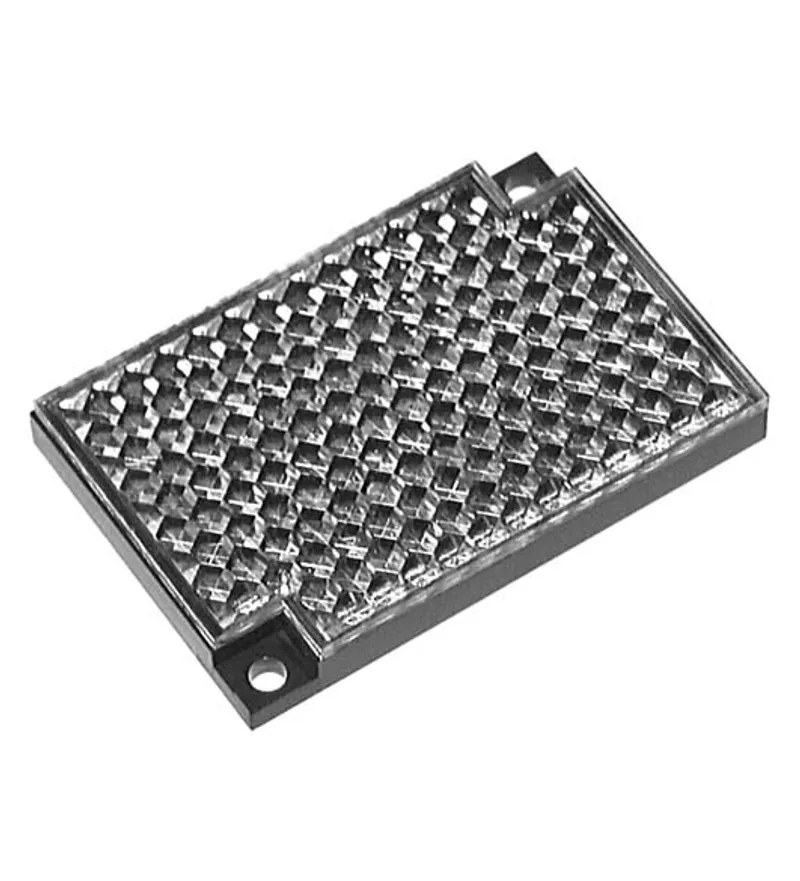

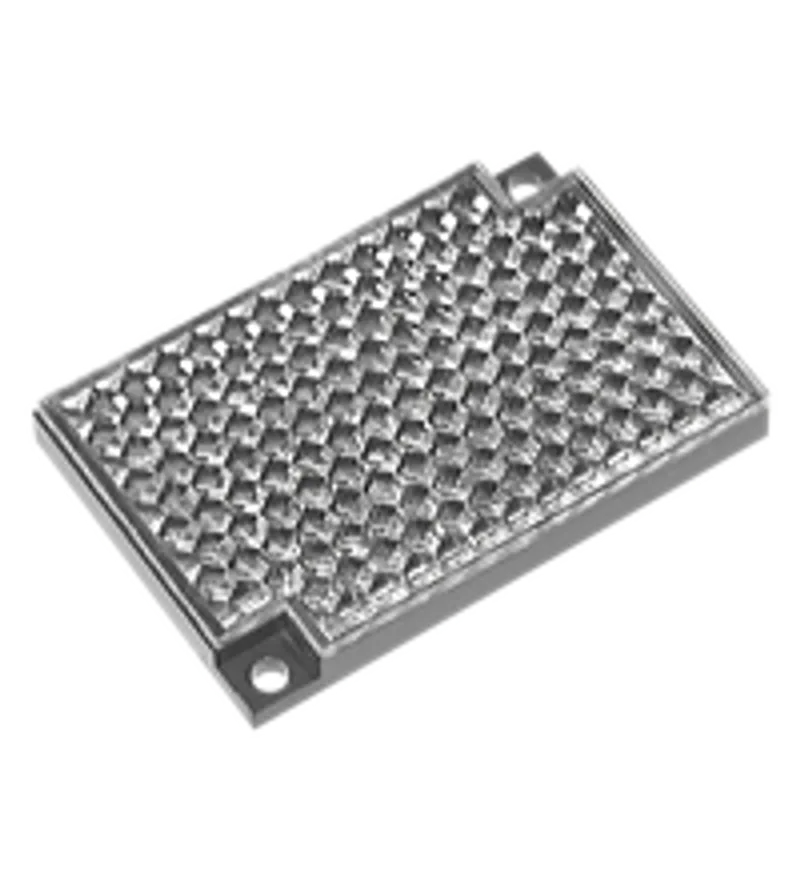

Reflector, rectangular 40.3 mm x 59.9 mm, mounting holes, Mounting holes for simple installation
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 113947 |
| Construction type | rectangular |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |

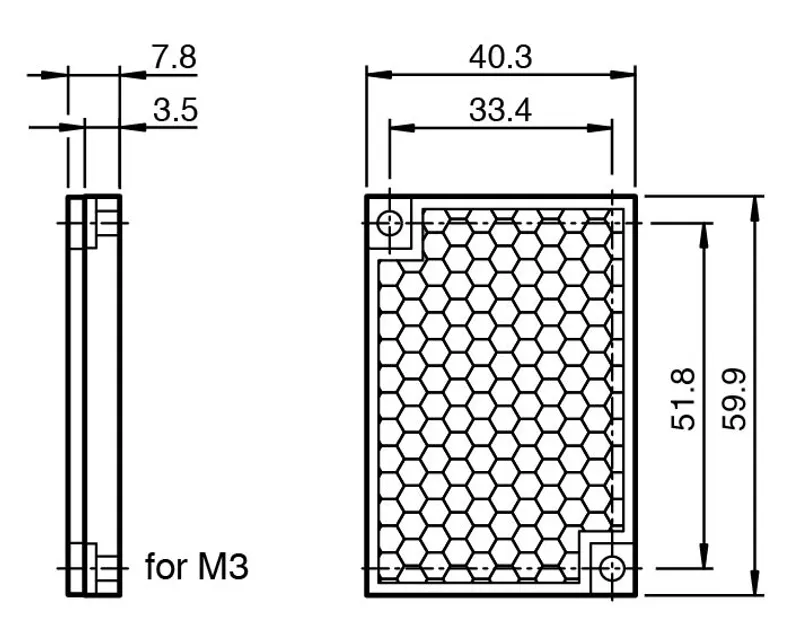

Mechanical specifications
| Material | PMMA/ABS |
| Dimensions: Height | 7.8 mm |
| Dimensions: Width | 40.3 mm |
| Dimensions: Length | 59.9 mm |
| Mounting | mounting holes |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
