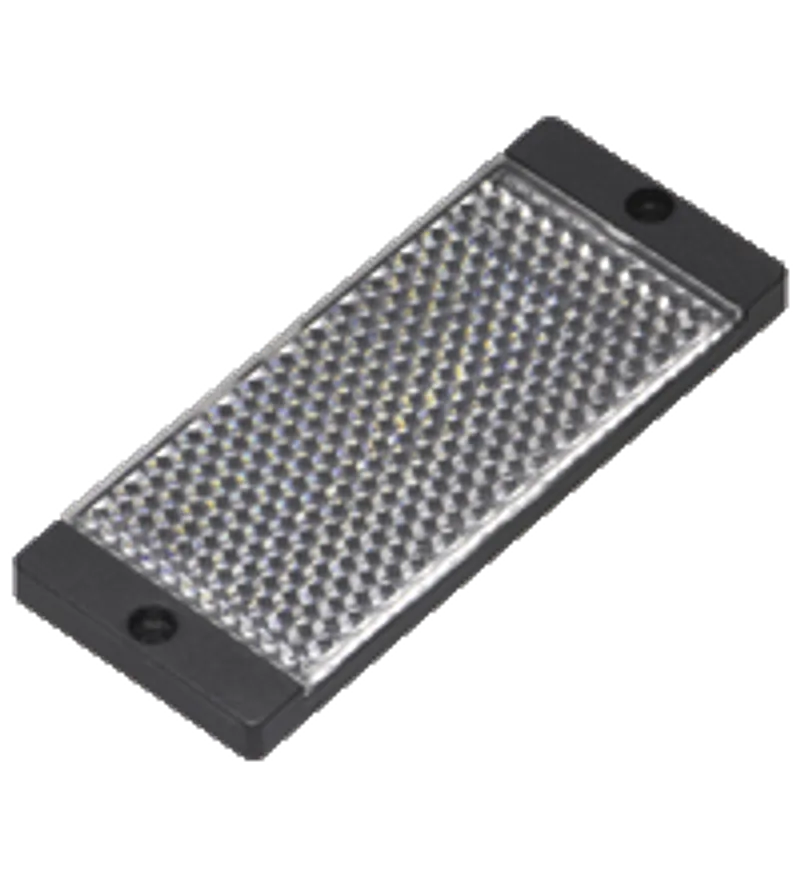

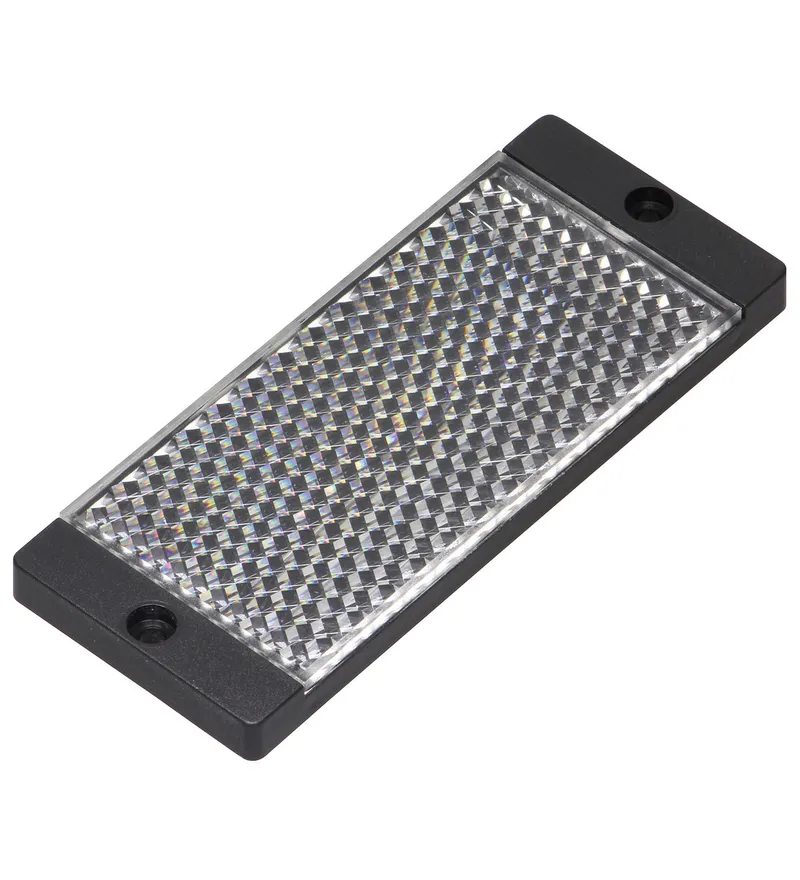

Pepperl Fuchs REF-H22x58
Reflector
- MPN
- REF-H22x58
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs REF-H22x58?
Mounting holes for simple installation

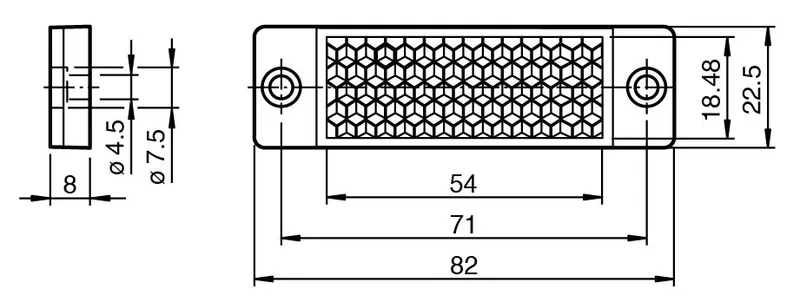

Reflector, rectangular 18.48 mm x 54 mm, mounting holes, Mounting holes for simple installation
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70124441 |
| Construction type | rectangular |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -40 ... 65 °C (-40 ... 149 °F) |
Mechanical specifications
| Material | PMMA |
| Dimensions: Height | 8 mm |
| Dimensions: Width | 22.5 mm |
| Dimensions: Length | 82 mm |
| Mounting | mounting holes |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
REF-H22x58: frequently asked questions
When can REF-H22x58 be shipped?
REF-H22x58 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up REF-H22x58 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for REF-H22x58 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for REF-H22x58, subject to availability and destination.
