Pepperl Fuchs REF-H18x40HT
Reflector
- MPN
- REF-H18x40HT
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs REF-H18x40HT?
Mounting holes for simple installation
High temperature rated to 120 °C (248 °F)
Reflector, rectangular 18.5 mm x 60 mm, mounting holes, high temperature applications, Mounting holes for simple installation, High temperature rated to 120 °C (248 °F)
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 204132 |
| Construction type | rectangular |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -20 ... 120 °C (-4 ... 248 °F) ; briefly (< 2 min) up to 160 °C (320 °F) |

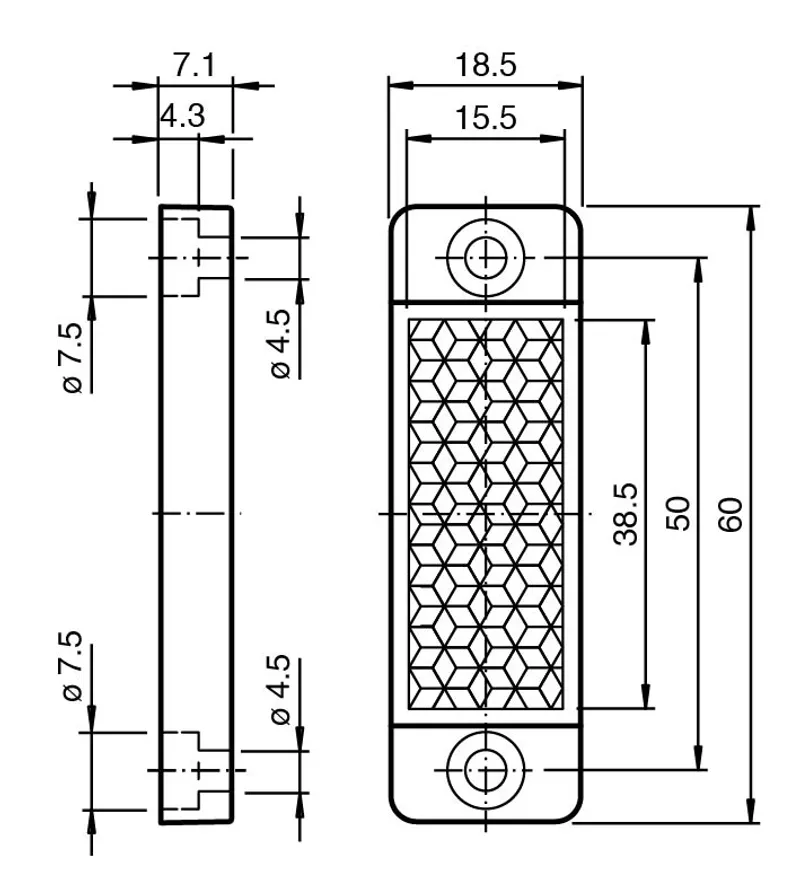

Mechanical specifications
| Material | PMMA |
| Dimensions: Height | 7.1 mm |
| Dimensions: Width | 18.5 mm |
| Dimensions: Length | 60 mm |
| Mounting | mounting holes |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
REF-H18x40HT: frequently asked questions
When can REF-H18x40HT be shipped?
REF-H18x40HT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up REF-H18x40HT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for REF-H18x40HT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for REF-H18x40HT, subject to availability and destination.
