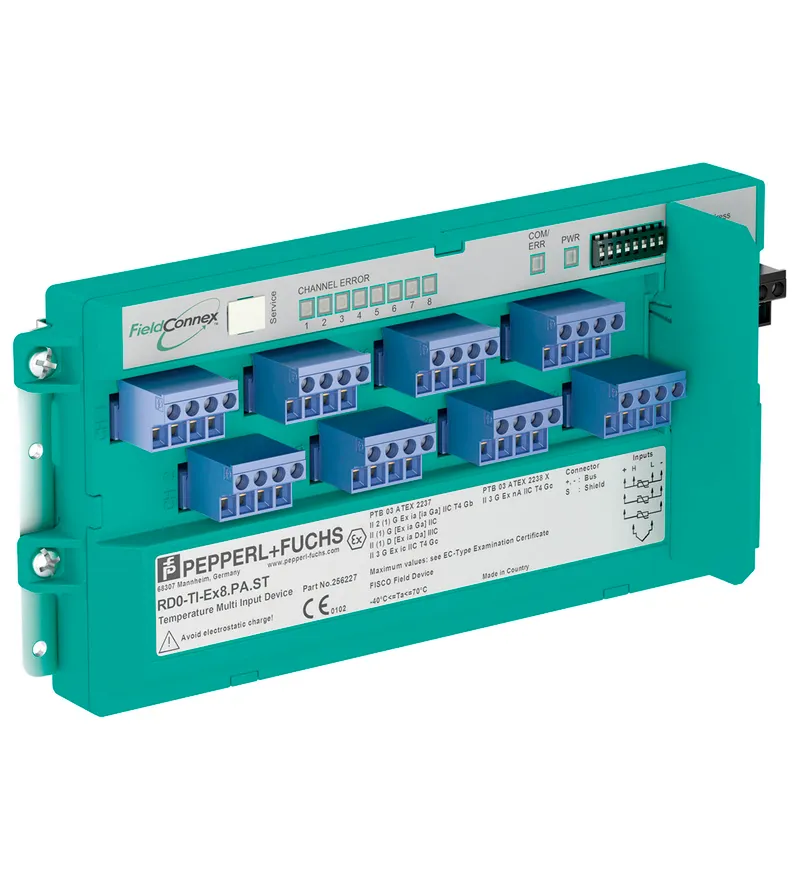

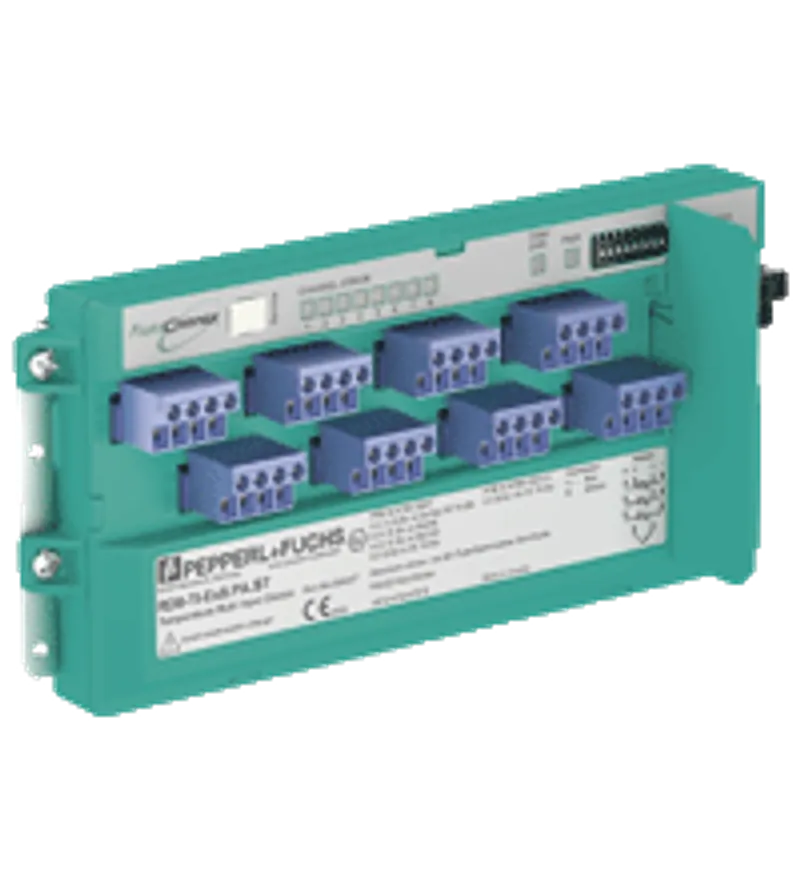

Pepperl Fuchs RD0-TI-Ex8.PA.* – Temperature Multi-Input
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Ethernet Switches |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can RD0-TI-Ex8.PA.* be shipped?
RD0-TI-Ex8.PA.* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RD0-TI-Ex8.PA.* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RD0-TI-Ex8.PA.* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RD0-TI-Ex8.PA.*, subject to availability and destination.
• For 8 temperature or analog sensors
• Installation in Zone 1/Div. 1, intrinsically safe
• Sensors in Zone 0/Div. 1
• Connection to fieldbus acc. to FISCO or Entity
• For PROFIBUS PA
• DCS integration via GSD and FDT/DTM
• Monitors sensor condition
• For T/C, RTD 2-, 3-, 4-wire, voltage and resistance
• Cold junction compensation
• Removable terminals
Temperature multi-input, electronic component for control cabinet installation, For 8 temperature or analog sensors, Installation in Zone 1/Div. 1, intrinsically safe, Sensors in Zone 0/Div. 1, Connection to fieldbus acc. to FISCO or Entity, For PROFIBUS PA, IECEx approval, Dust protection, Europe, USA, Canada, Device coupler location: non-explosion hazardous area, Zone 2 - high-power trunk, Zone 1 - high-power trunk, Division 2 - high-power trunk, Division 1 - high-power trunk
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T163902 |
| Design / Mounting | Cabinet installation |
| Installation in hazardous area | Zone 1 / Div. 1 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Fieldbus connection
| Fieldbus type | PROFIBUS PA |
| Firmware update | via separate plug connection |
| FDE (Fault Disconnect Equipment) | 6.7 mA |
| Polarity | not polarity sensitive |
| Rated voltage | 9 ... 32 V UN |
| Rated current | max. 23 mA IN |
| PROFIBUS PA: Profile | 3.02 |
Indicators/operating means
| LED PWR | green: on, bus voltage existent |
| LED COM ERR | red, continuous lightning: hardware error; red, flashing: no bus activities or bus fault; off: no error |
| LED CHANNEL ERROR | red: 2 Hz flashing: lead breakage, overrange; off: no error |
Input
| Number | 8 |
| Sensor types | see table 1 |
| Grounding | grounding of thermoelements possible |
| Error detection | lead breakage, wiring error, hardware device error |
| Common mode voltage | Input to Input 600 Vpeak |
Transfer characteristics
| Deviation: Cold junction compensation | ± 0.5 °C (32.9 °F) |
| Deviation: Resolution/accuracy | see table 2 |
| Deviation: Influence of ambient temperature | see table 3 |
| Deviation: Linearization | T/C input 0.1°C RTD input 0.03°C |
| Internal measurement cycle | for all sensor types max. 1 s |
Galvanic isolation
| Fieldbus/inputs | safe galvanic isolation acc. to EN 60079-11, voltage peak value 375 V |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
Standard conformity
| Galvanic isolation | EN 60079-11 |
| Electromagnetic compatibility | NE 21:2011 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) hazardous area -40 ... 85 °C (-40 ... 185 °F) safe area |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | ≤ 95 % non-condensing |
| Shock resistance | 15 g , 11 ms |
| Vibration resistance | 5 g , 10 ... 150 Hz |
| Corrosion resistance | acc. to ISA-S71.04-1985, severity level G3 |
Mechanical specifications
| Connection type | plug-in terminals , spring terminal and screw terminal |
| Core cross section: Bus | up to 2.5 mm2 |
| Core cross section: Inputs | up to 2.5 mm2 |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | 360 g |
| Mounting | DIN rail mounting |
Data for application in connection with hazardous areas
| EU-type examination certificate | PTB 03 ATEX 2237 |
| Marking | II 2 (1) G Ex ia [ia Ga] IIC T4 Gb , [exsign] II (1) G [Ex ia Ga] IIC , [exsign] II (1) D [Ex ia Da] IIIC , [exsign] II 3 G Ex ic IIC T4 Gc |
| Bus | FISCO see EC-Type Examination Certificate |
| Voltage Ui | 24 V |
| Inputs | see EC-Type Examination Certificate |
| Certificate | PTB 03 ATEX 2238 X |
| Marking | II 3 G Ex nA IIC T4 Gc |
| Galvanic isolation: Bus | see Statement of Conformity |
| Galvanic isolation: Input | see EC-Type Examination Certificate |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
International approvals
| FM approval: FM certificate | FM18US0054X , FM18CA0027X |
| FM approval: Control drawing | 16-473FM-12A |
| IECEx approval: IECEx certificate | IECEx PTB 05.0001 IECEx PTB 05.0002X |
| IECEx approval: IECEx marking | Ex ia [ia Ga] IIC T4 Gb [Ex ia Ga] IIC [Ex ia Da] IIIC Ex ic IIC T4 Gc Ex nA IIC T4 Gc |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
