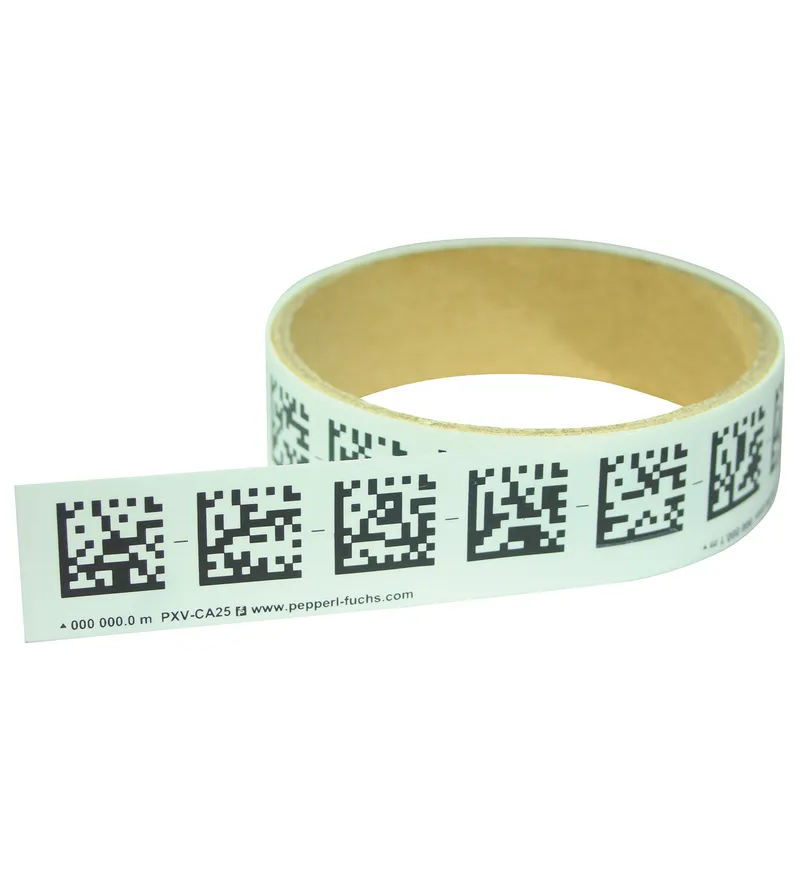

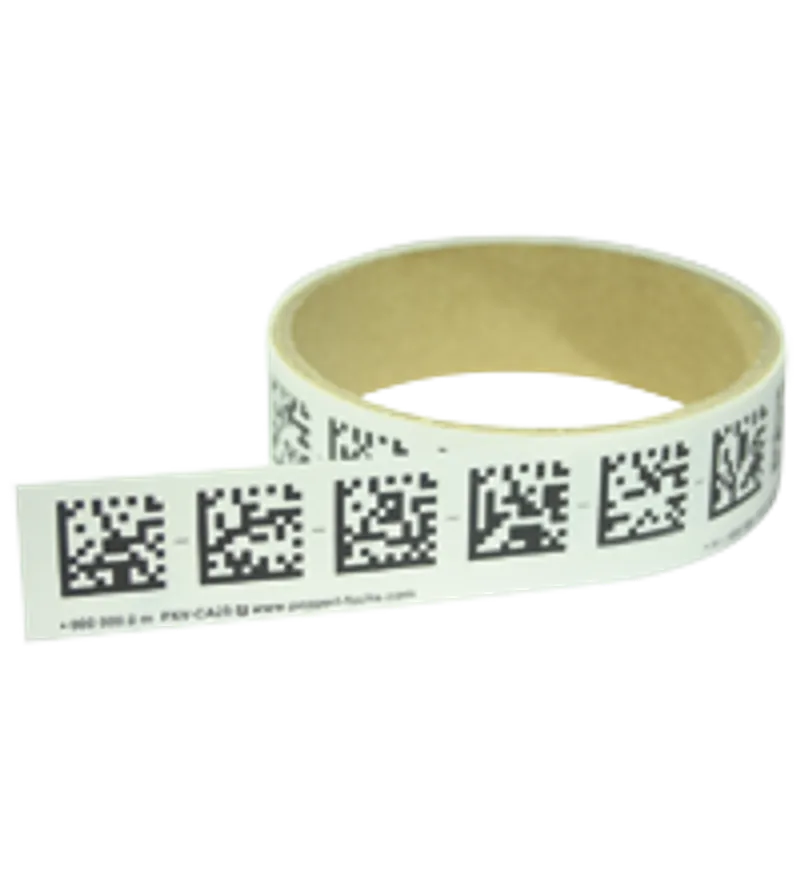

Pepperl Fuchs PXV*-CA25-* – Code tape
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Optical Linear Positioning Systems |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PXV*-CA25-* be shipped?
PXV*-CA25-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PXV*-CA25-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PXV*-CA25-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PXV*-CA25-*, subject to availability and destination.
• High chemical resistance
• Low weight
• Self-adhesive mounting
• High temperature resistance
• High mechanical stability
Data Matrix code tape, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, High mechanical stability
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 299652 |
| Start position | 0 ... 99999 m (see order information) |
| Length | 1 ... 100000 m (see order information) |

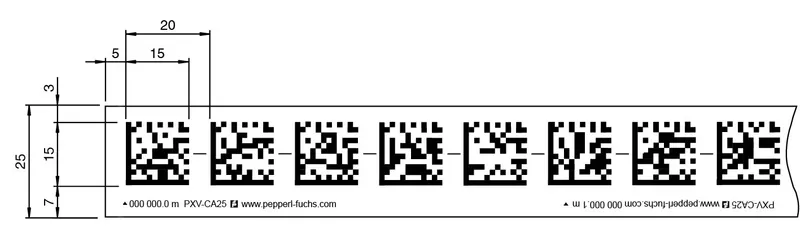

| Width | 25 mm (1 row version) |
| External diameter | max. 180 mm (with max. code tape length of 100 m) |
| Inside diameter | 76 mm ( role core ) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Operating temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Installation temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation Humidity Salt spray (150 h / 5%) |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids |
Mechanical specifications
| Material thickness | 150 µm |
| Material | polyester laminate |
| Surface | polyester , matte |
| Mass | 6.3 g / m |
| Tensile strength | ≥ 150 N |
| Manufacturing tolerance | ± 1 mm/m |
| Storage | Maximum 2 years under normal storage conditions. |
| Adhesive | Acrylate-based adhesive ; curing 72 h |
| Adhesive strength | Average values (FTM2) Aluminum : 24 N / 25 mm High grade stainless steel : 25 N / 25 mm ABS : 22 N / 25 mm PP : 18 N / 25 mm HD-PE : 12 N / 25 mm LD-PE : 12 N / 25 mm |
| Note | Max. code tape length of 100 m per roll |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet PXV*-CA25-* |
More Pepperl Fuchs parts
Available on requestMultiturn absolute rotary encoder PVM78E
Available on requestSingleturn absolute rotary encoder PVS58Available on requestSingleturn absolute rotary encoder PVS78E

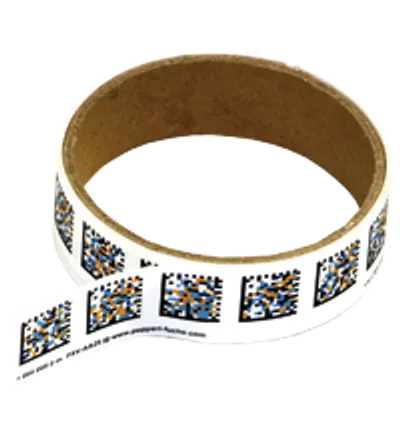

Available on requestCode tape PXV*-AA25-*

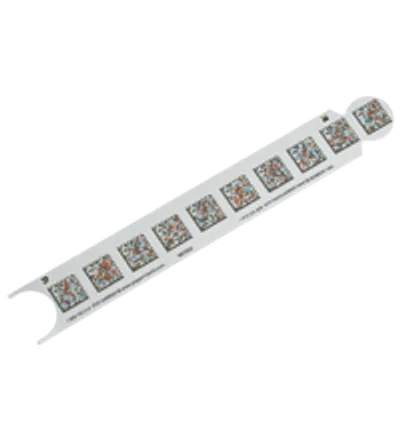

Available on requestMetal code bar PXV-AAMGAvailable on requestPolyester code bar PXV-AAMP

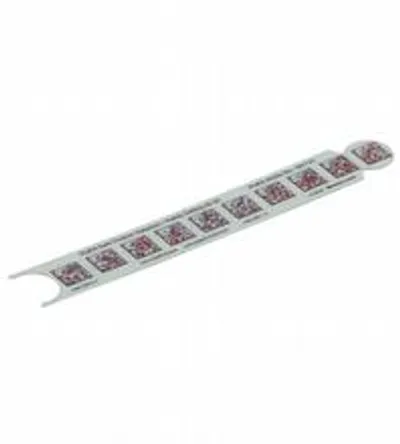

Available on requestPolyester code bar PXV-AAMP30X200-*-9601

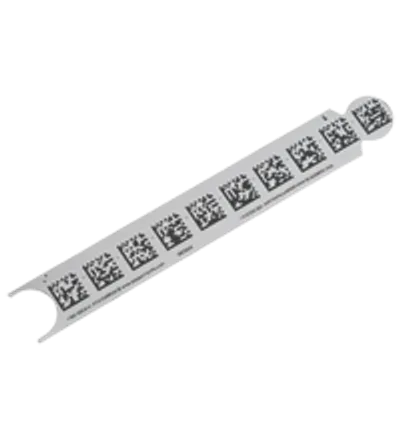

Available on requestMetal code bar PXV-CAM
