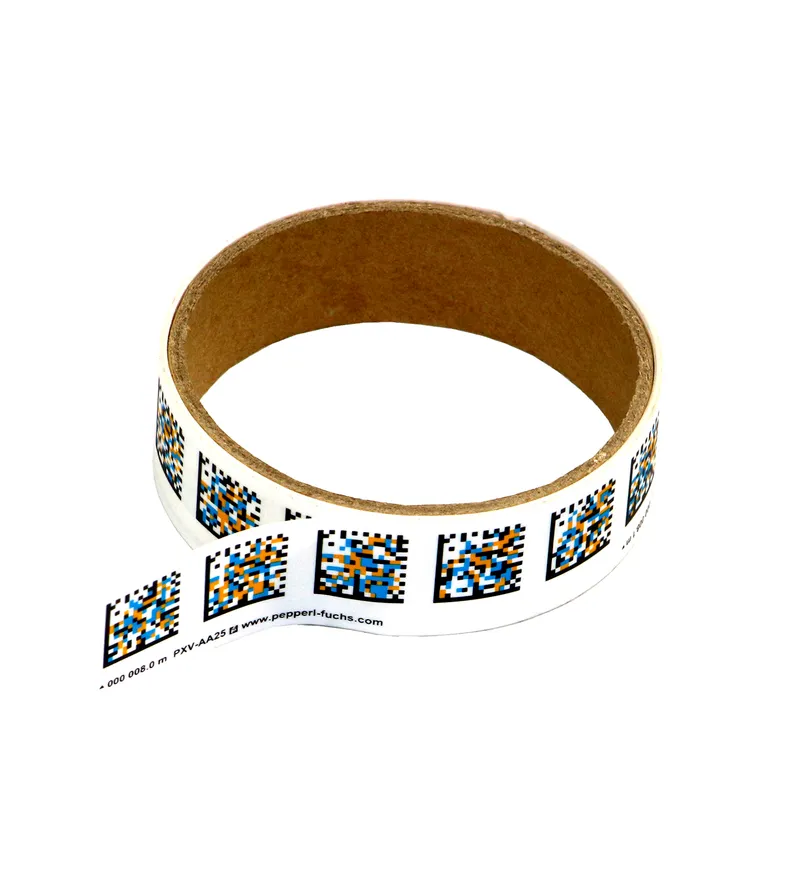

Pepperl Fuchs PXV*-AA25-* – Code tape
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Optical Linear Positioning Systems |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PXV*-AA25-* be shipped?
PXV*-AA25-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PXV*-AA25-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PXV*-AA25-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PXV*-AA25-*, subject to availability and destination.
• High chemical resistance
• Low weight
• Self-adhesive mounting
• High temperature resistance
• High mechanical stability
Data Matrix code tape, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, High mechanical stability
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 299651 |
| Start position | 0 ... 99999 m (see order information) |
| Length | 1 ... 100000 m (see order information) |

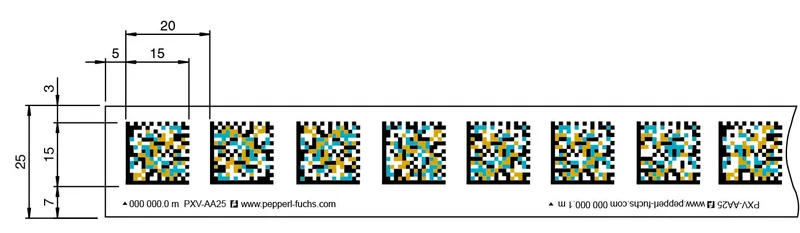

| Width | 25 mm (1 row version) |
| External diameter | max. 180 mm (with max. code tape length of 100 m) |
| Inside diameter | 76 mm ( role core ) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Operating temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Installation temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation Humidity Salt spray (150 h / 5%) |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids |
Mechanical specifications
| Material thickness | 150 µm |
| Material | polyester laminate |
| Surface | polyester , matte |
| Mass | 6.3 g / m |
| Tensile strength | ≥ 150 N |
| Manufacturing tolerance | ± 1 mm/m |
| Storage | Maximum 2 years under normal storage conditions. |
| Adhesive | Acrylate-based adhesive ; curing 72 h |
| Adhesive strength | Average values (FTM2) Aluminum : 24 N / 25 mm High grade stainless steel : 25 N / 25 mm ABS : 22 N / 25 mm PP : 18 N / 25 mm HD-PE : 12 N / 25 mm LD-PE : 12 N / 25 mm |
| Note | Max. code tape length of 100 m per roll |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet PXV*-AA25-* |
More Pepperl Fuchs parts
Available on requestPepperl Fuchs PVM58N-YY1AGR0BN-1213 – Multiturn absolute rotary encoder. Industrial standard…
Available on requestMultiturn absolute rotary encoder PVM78E

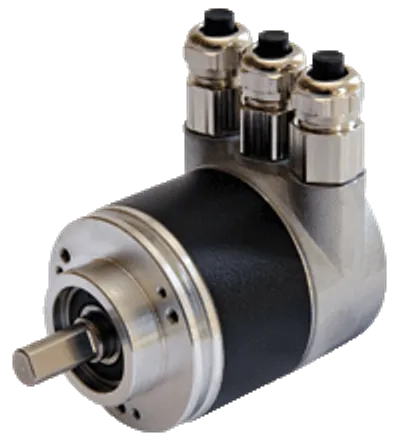

Available on requestSingleturn absolute rotary encoder PVS58Available on requestSingleturn absolute rotary encoder PVS78E

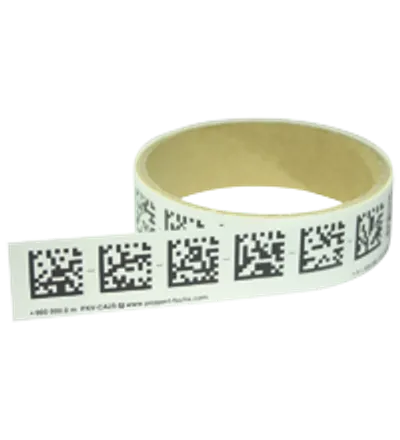

Available on requestCode tape PXV*-CA25-*
