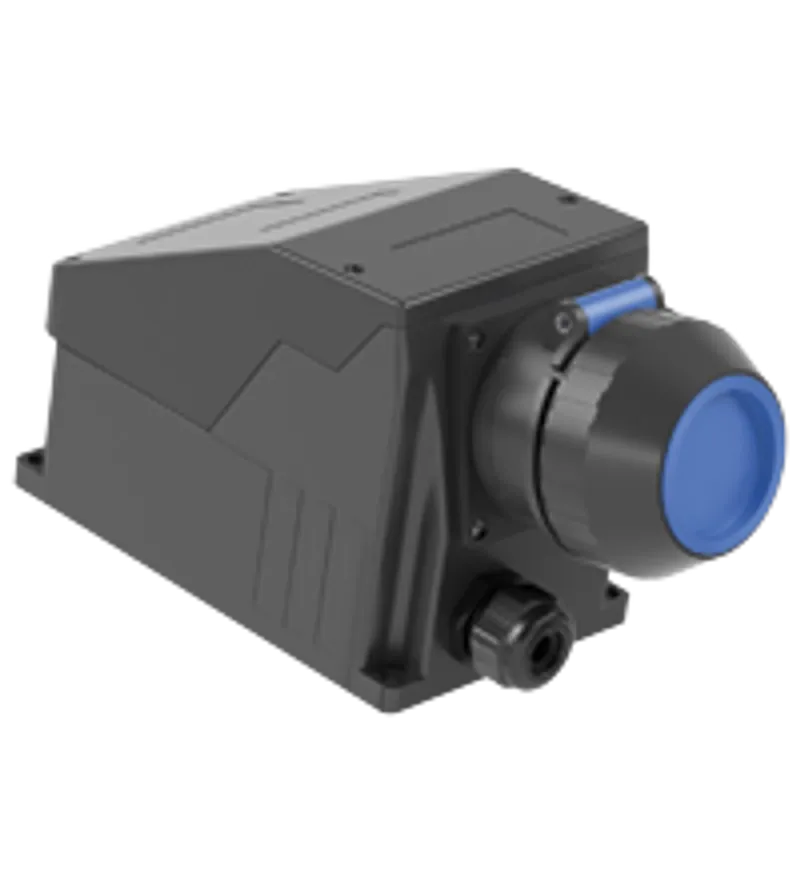

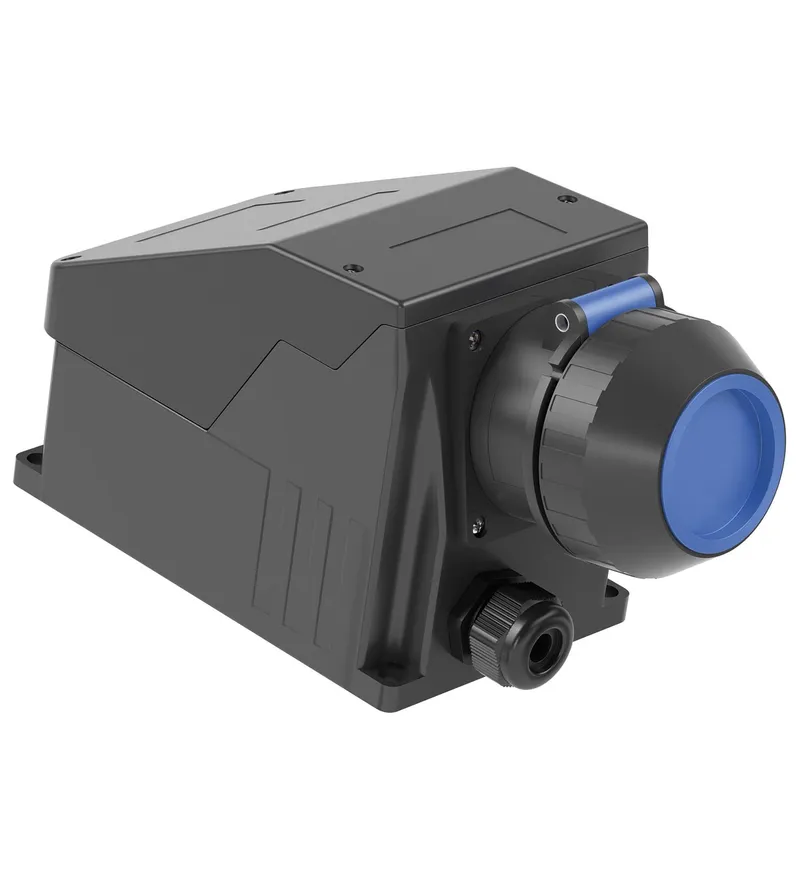

Pepperl Fuchs PS-4 – Sockets Ex de

MPN: PS*-4* · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive Sensors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can PS*-4* be shipped?

PS*-4* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up PS*-4* in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for PS*-4* and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PS*-4*, subject to availability and destination.

• Ex de and Ex t certified

• Glass-fiber reinforced polyester (GRP) enclosure

• Full equipment certified

• Installation in Zone 1, Zone 2, Zone 21 and Zone 22

• Degree of protection IP66

• Degree of protection ensured by means of bayonet catch

• Low insertion force

• Self-cleaning lamellar contacts

Ex de and Ex t certified, Glass-fiber reinforced polyester (GRP) enclosure, Full equipment certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Degree of protection IP66, Degree of protection ensured by means of bayonet catch, Low insertion force, Self-cleaning lamellar contacts, Operating voltage: see table, Operating current: see table, Number of poles: see table, Color coding according to IEC 60309: see table

Specifications

Electrical specifications

Order code (Pepperl+Fuchs part number)	T194109
Operating voltage	see table
Operating current	see table
Terminal capacity	see table
Supply frequency	50/60 Hz
Function	socket
Usage category	see table
Number of poles	see table
Color coding according to IEC 60309	see table
Protective contact position according to IEC 60309	see table
Lifecycle	Active (current Pepperl+Fuchs product)

Mechanical specifications

Cable type	non-armored cables
Cover fixing	see table
Degree of protection	IP66
Cable entry: Number of cable entries	see table 1x Cable gland , 1x Stopping Plug
Material: Housing	carbon loaded, antistatic glass-fiber reinforced polyester (GRP)
Material: Finish	inherent color black
Mass	see table

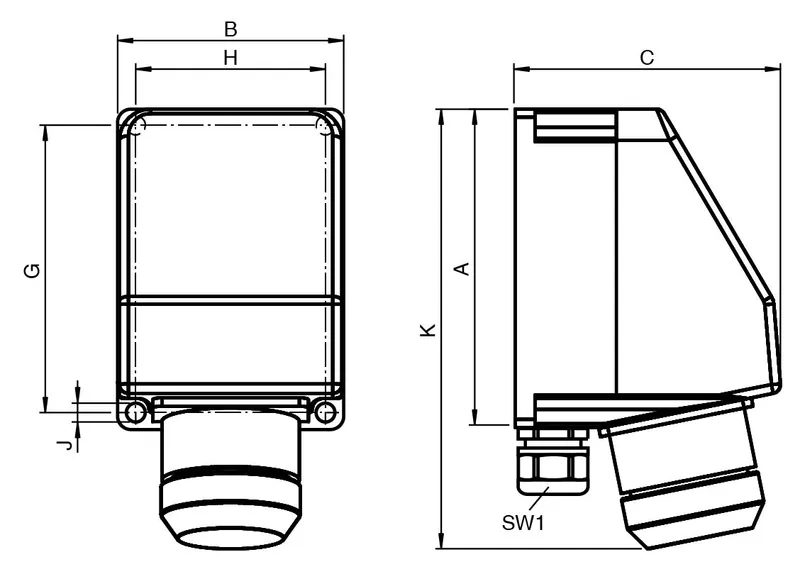

Dimensions	see table

Ambient conditions

Ambient temperature

-40 ... 55 °C (-40 ... 131 °F)

Data for application in connection with hazardous areas

EU-type examination certificate	SIRA 11 ATEX 1044
Marking	II 2 GD Ex de IIC T6 Gb Ex t IIIC T80 °C Db

International approvals

IECEx approval

IECEx SIR 11.0026

Conformity

Degree of protection	EN 60529
Usage category	IEC / EN 60947
CE marking	0102
Plug connection	IEC 60309

General information

Supplementary information

EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
