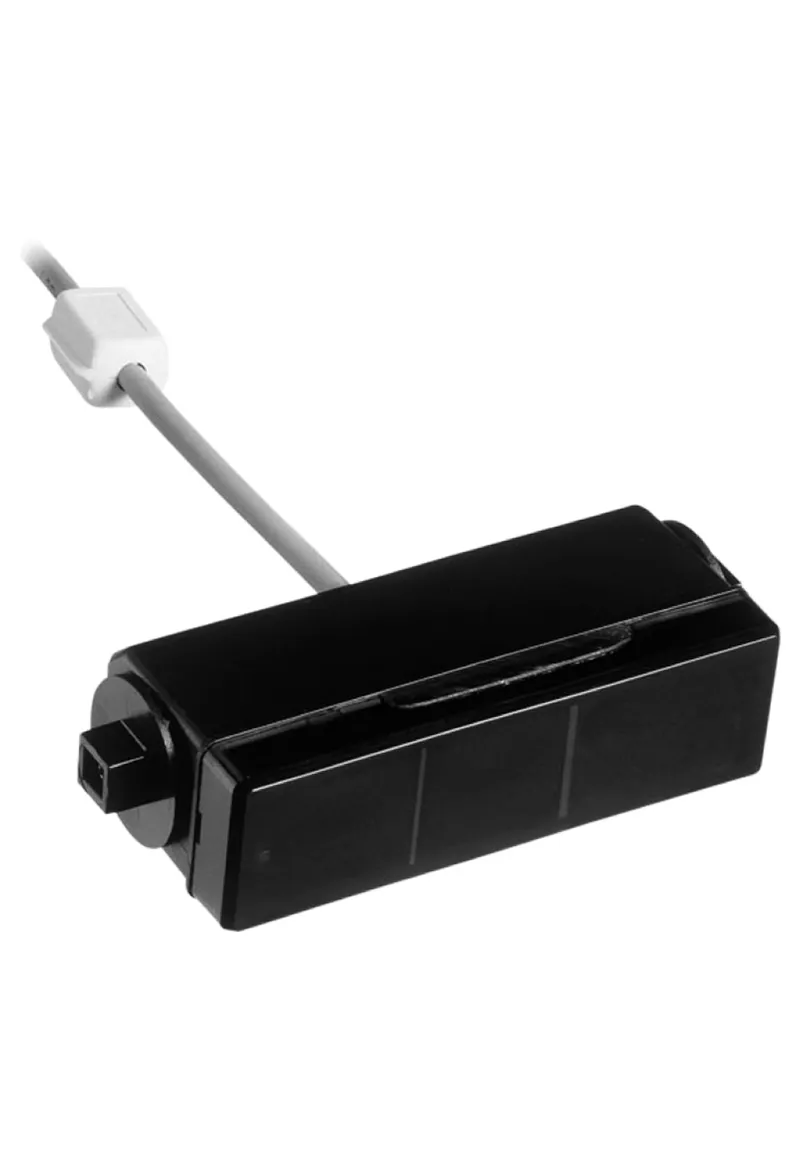

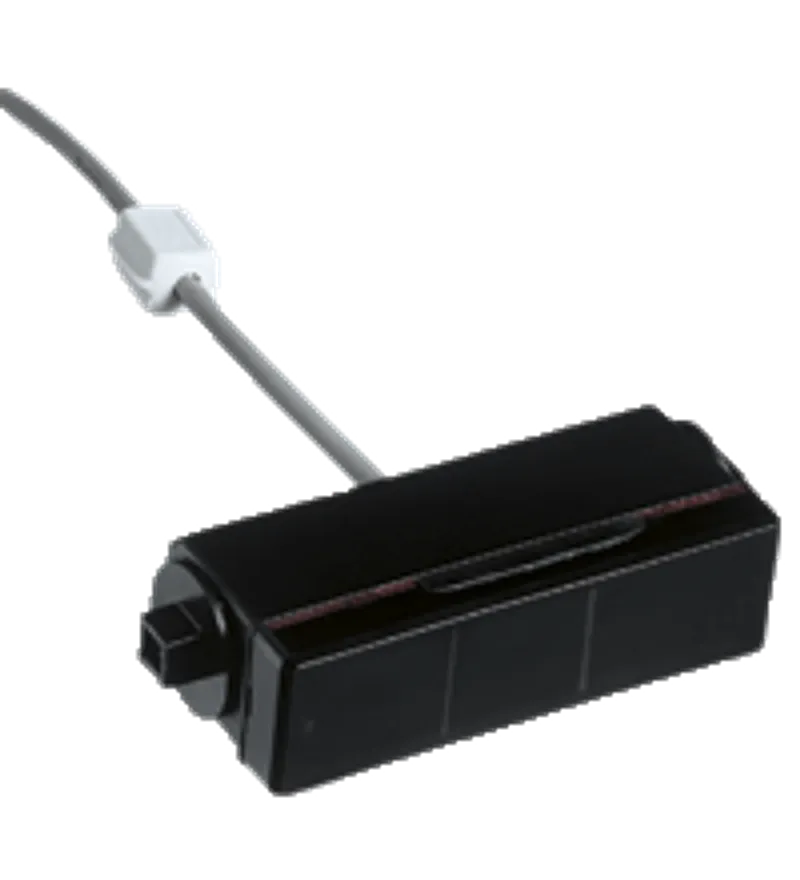

Pepperl Fuchs PROSCAN-T/32/114b – Active infrared scanner
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can PROSCAN-T/32/114b be shipped?
PROSCAN-T/32/114b is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PROSCAN-T/32/114b in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PROSCAN-T/32/114b and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PROSCAN-T/32/114b, subject to availability and destination.
• Version with E1 approval
• Fan-shaped detection field with up to 12 beams
• Adjustable detection fields for different door widths
• Automatic drift compensation
• Version with test input
Version with E1 approval, Fan-shaped detection field with up to 12 beams, Adjustable detection fields for different door widths, Automatic drift compensation, Version with test input, Function: Open and secure, Sensor principle: Active infrared scanner, Operating voltage: 12 ... 36 V DC, Signal output: 1 PNP, short-circuit protected, reverse polarity protected, open collector, Connection: Fixed cable 3 m, halogen-free, with ferrite core
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 119898 |
| Detection field | Center field 1400 mm x 80 mm preset (installation height: 2 m) |
| Light source | 12 x IRED |
| Light type | modulated infrared light |
| Teach-in time | approx. 4 s |
| Open time | 3 s / 10 s, programmable |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 630 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 60 % |
Indicators/operating means
| Function indicator | LED red: on for object detection, flashes during teaching phase |
| Control elements | Programmble switch for switching type, open time, detection field |
| Factory setting | middle detection field 8 beams |
Electrical specifications
| Operating voltage | 12 ... 36 V DC UB |
| Ripple | 10 % |
| No-load supply current | 100 mA I0 |
Input
| Test input | emitter deactivation with +Ub |
Output
| Switching type | Output active / inactive programmable |
| Signal output | 1 PNP, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | 38 V DC |
| Switching current | 200 mA |
| Response time | < 50 ms |
| De-energized delay | 200 ms toff |
Compliance with standards and directives
| Standard conformity: Product standard | EN 60947-5-2 |
| Standard conformity: Standards | EN 50155 Chapter 12.2.3 / 12.2.5 / 12.2.7 / 12.2.8 / 12.2.11 / 12.2.14 Details see test report |
| Standard conformity: Flammability | Flame retardant in accordance with UN/ECE-R118 or ISO 14572 |
Approvals and certificates
| UN/ECE Regulation No. 10 (E1) | Type-approval number: 046982 |
Ambient conditions
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Mounting height | 1000 ... 2500 mm |
| Degree of protection | IP52 |
| Connection | Fixed cable 3 m, halogen-free, with ferrite core |
| Material: Housing | PC/ABS |
| Material: Optical face | PMMA |
| Mass | approx. 100 g |
| Dimensions: Height | 45 mm |
| Dimensions: Width | 102 mm |
| Dimensions: Depth | 32 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet PROSCAN-T/32/114b | |
| Instruction Manual | PDF · 150 kB |
| Commissioning Instructions | PDF · 331 kB |

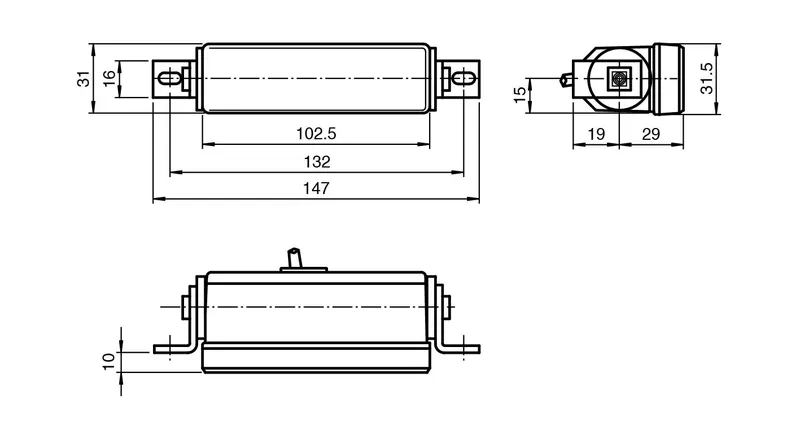

CAD & dimension drawings
| 3-D model (STEP) PROSCAN-T-3529 | STP · 2.6 MB |
Certificates (3)
| Product-Specific Certificates (E1*10R06/01*6982*02) | PDF · 1.2 MB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 233 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 230 kB |
