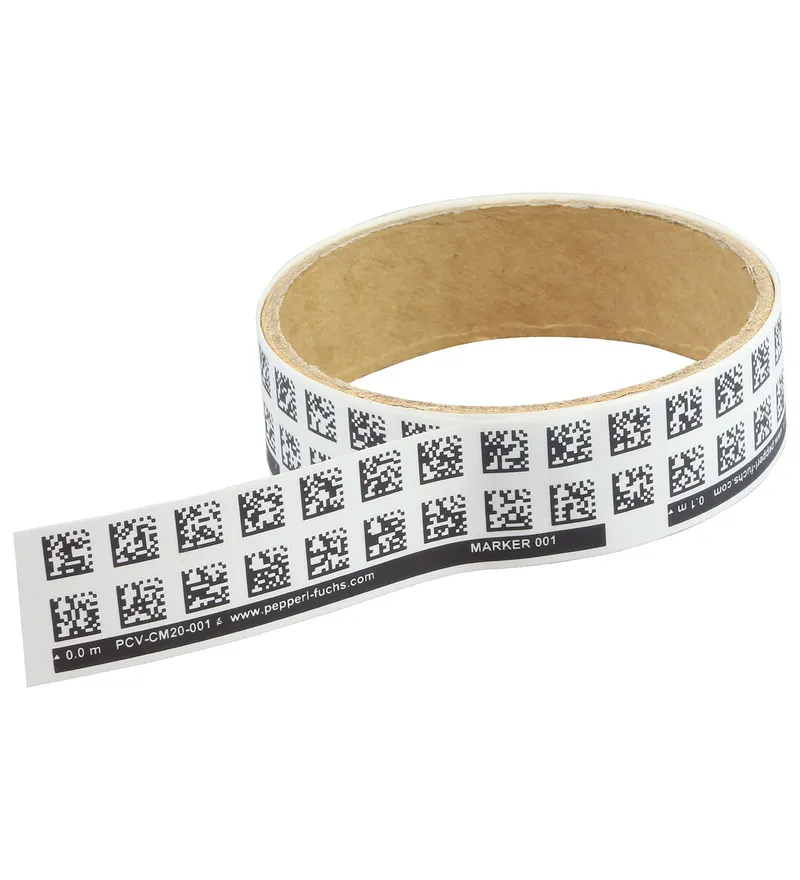

Pepperl Fuchs PCV-CM20-*-*-SET
Event marker
- MPN
- PCV-CM20-*-*-SET
- Category
- Camera-Based Linear Positioning
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs PCV-CM20-*-*-SET?
High chemical resistance
Low weight
Self-adhesive mounting
High temperature resistance
High mechanical stability
Event markers for the PCV system, High chemical resistance, Low weight, Self-adhesive mounting, High temperature resistance, High mechanical stability
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 299650 |
| Start marker number | 1 ... 999 |
| Number | 1 ... 999 |
| Length | 1 m per event marker number |

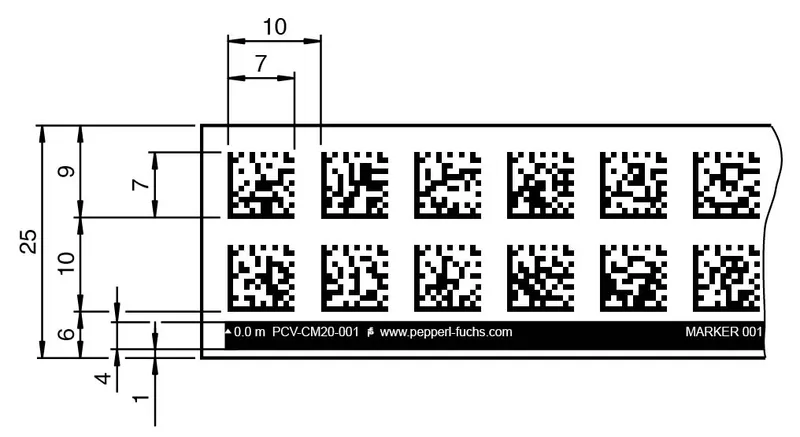

| Width | 25 mm (2 row version) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Operating temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Installation temperature | 10 ... 40 °C (50 ... 104 °F) |
| Environmental resistance | UV radiation Humidity Salt spray (150 h / 5%) |
| Chemical resistance | Oils Grease Fuels Aliphatic solvents Weak acids |
Mechanical specifications
| Material thickness | 150 µm |
| Material | polyester laminate |
| Surface | polyester , matte |
| Mass | 6.3 g / m |
| Tensile strength | ≥ 150 N |
| Manufacturing tolerance | ± 1 mm/m |
| Storage | Maximum 2 years under normal storage conditions. |
| Adhesive | Acrylate-based adhesive ; curing 72 h |
| Adhesive strength | Average values (FTM2) Aluminum : 24 N / 25 mm High grade stainless steel : 25 N / 25 mm ABS : 22 N / 25 mm PP : 18 N / 25 mm HD-PE : 12 N / 25 mm LD-PE : 12 N / 25 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
PCV-CM20-*-*-SET: frequently asked questions
When can PCV-CM20-*-*-SET be shipped?
PCV-CM20-*-*-SET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PCV-CM20-*-*-SET in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PCV-CM20-*-*-SET and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PCV-CM20-*-*-SET, subject to availability and destination.
